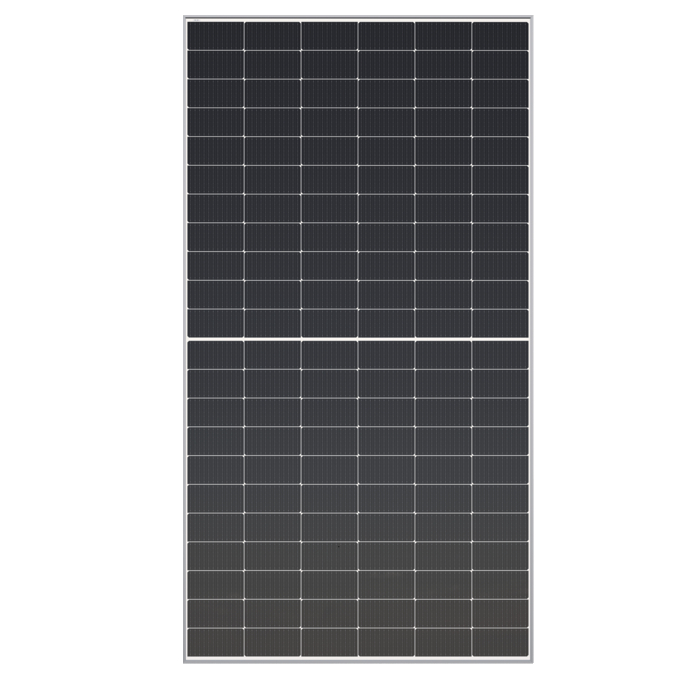

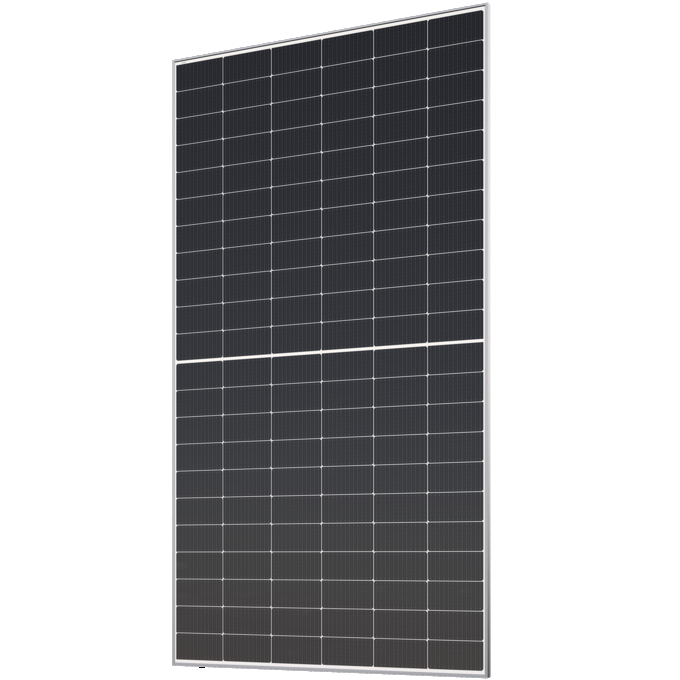

M 625 N 66 RB-SF
4099854696671
Product benefits
- TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
- Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
- 25-years of product guarantee, 30-years of linear power output guarantee
- Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
- Very low yearly degradation of the cells thanks to the better resistance to high temperatures
- Durable design and highest production standards guarantees operational reliability and quality
Areas of application
- Utility installations
- Commercial and industrial installations
- Residential installations
Product features
- Bifacial - both sides of the panel are absorbing the light
- Original Stäubli MC4 EVO 2 connectors
- Available in a long cable version
- Frame made of anodized aluminum alloy
- Multi-bus bar (MBB) technology
- Maximum static load up to 5400 Pa
Equipment / Accessories
- Product is delivered as a whole, no assembly required from customer
- MC4 EVO 2 connectors are fitted to the panel
- 3 bypass diodes are already installed in the panel
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Back Glass
2.0 mm glazed semi-tempered glass
Cable length
1.4 m
Cell material
Mono crystalline
Colour cells
Dark blue
Colour frame
Silver
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Front Glass
2.0 mm coated semi-tempered glass
Front Side Maximum Static Loading
5400 Pa
Glass with anti-reflection coating
Yes
GTIN
4099854696671
Height
30 mm
Length
2382 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Maximum Power Current Imp (NMOT)
12.07 A
Maximum Power Current Imp (STC)
14.99 A
Maximum Power Pmax (NMOT)
478 W
Maximum Power Pmax (STC)
620 W
Maximum Power Voltage Vmp (NMOT)
39.55 V
Maximum Power Voltage Vmp (STC)
41.40 V
Maximum series fuse rating
30 A
Maximum voltage
1500 V
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Module efficiency factor (STC)
23.00 %
Nominal operating cell temperature
45 °C
Number of bypass diodes
3
Number of cells
132
Open Circuit Voltage Voc (NMOT)
46.53 V
Open Circuit Voltage Voc (STC)
49.60 V
Packaging recyclability
Mostly recyclable packaging 1)
Power tolerance
3 %
Product recyclability
Mostly recyclable product 1)
Product weight
33500.000 g
Rear Side Maximum Static Loading
2400 Pa
Reverse current load
30 A
Short Circuit Current Isc (NMOT)
12.85 A
Short Circuit Current Isc (STC)
15.91 A
Temperature coefficient Isc
0.045 %/K
Temperature coefficient Pmpp
-0.290 %/K
Temperature coefficient Uoc
-0.260 %/K
Temperature range in operation
-40…+85 °C
Type of connection
Staubli MC4 EVO2
Type of Faciality
Bifacial
Width
1134 mm
With frame
Yes
