LT 5K F1-DC-WIET
4058075835221
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Wide voltage range and low startup voltage
- Versions with AFCI and PID available
- Level II surge protection on AC and DC side
- Automatic voltage stabilization technology in weak grid conditions
- Compatible with different energy meters
- Easy installation
Areas of application
- Residential installations
Product features

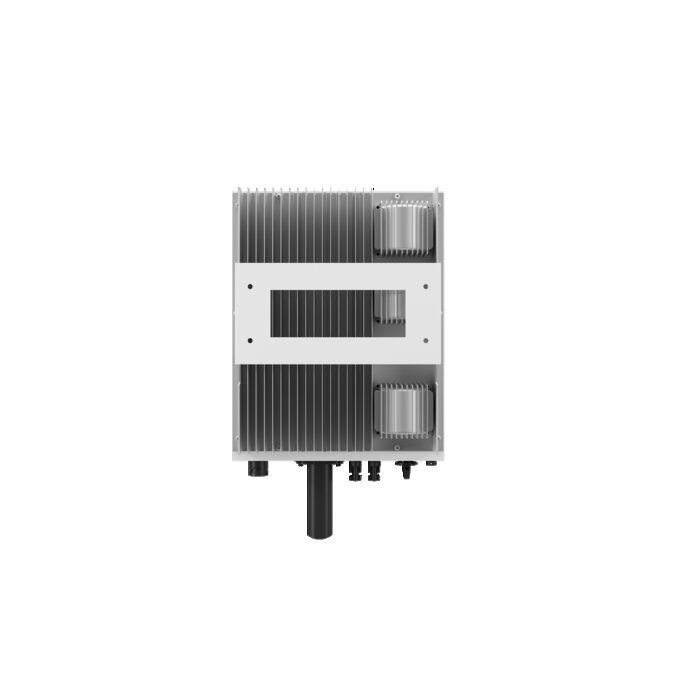

- Cooling by natural convection

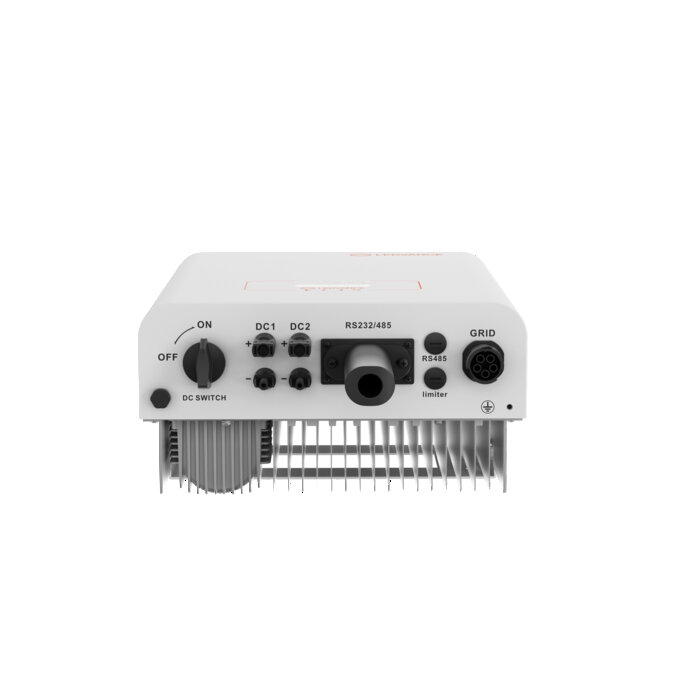

- Integrated DC switch
- Offline configuration
- Remote updates of the software
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- RS485 connector included
- Mounting stainless steel screws included
- Stainless steel anti-collision bolts included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-25…+65 °C
Charging controller integrated
No
Connection DC for battery
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Display
Standard
Ethernet
Yes
European efficiency
97.50 %
GTIN
4058075835221
Height
457 mm
Input voltage DC
600 V
Integrated DC switch
Yes
Integrated transformer
No
Length
330 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 1,3,5-Triazine-2,4,6-triamine, Bisphenol A (BPA), 4,4'-Methylenedianiline, Formaldehyde, oligomeric reaction products with aniline, Tetrabromobisphenol A, Decabromodiphenyl ether _decaBDE_, Dodecamethylcyclohexasiloxane _D6_, 4-Nonylphen
Max. input current DC
20 A
Max. input current DC per MPP tracker
20 A
Max. input current DC per string input
20 A
Max. input power DC
6.5 kW
Max. short circuit current per MPPT
30 A
Maximum efficiency
98.30 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
120 - 850 V
Nominal output power AC
5 kW
Number of independent MPPT inputs
2
Outdoor application
No
Output phases
3-phase
Packaging recyclability
Mostly recyclable packaging 1)
Power consumption
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
10000.000 g
String connections per MPPT input
1
Suitable for emergency power
No
Temperature range in operation
-25…+65 °C 1)
Type of connection
MC4-Compatible
Type of protection
IP65
Width
185 mm
Wireless
Yes
With data logging
Yes
