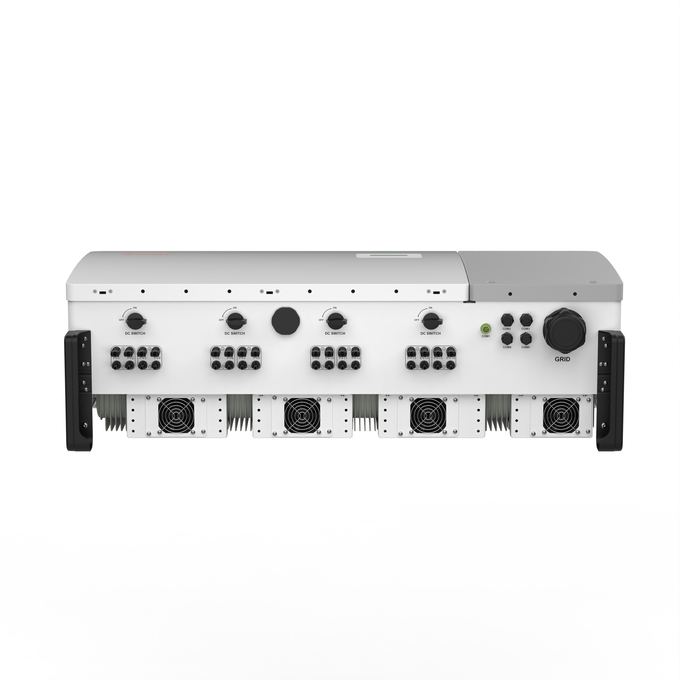

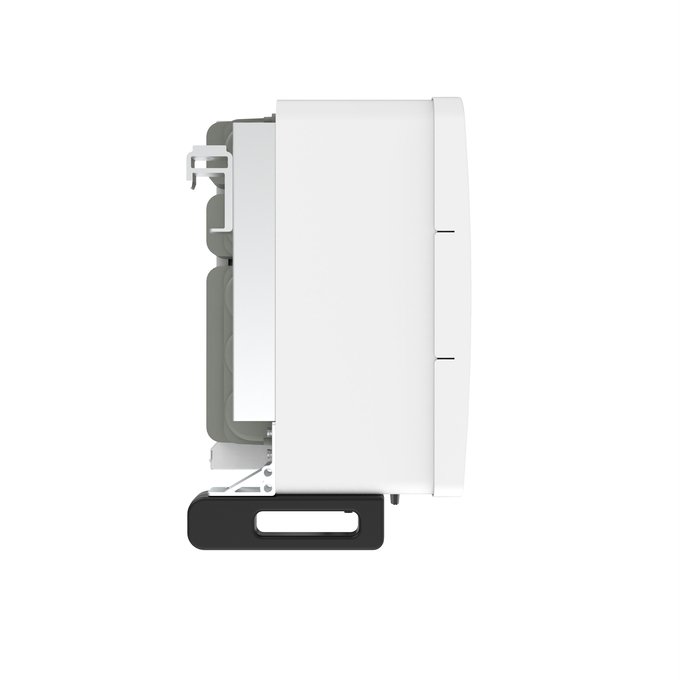

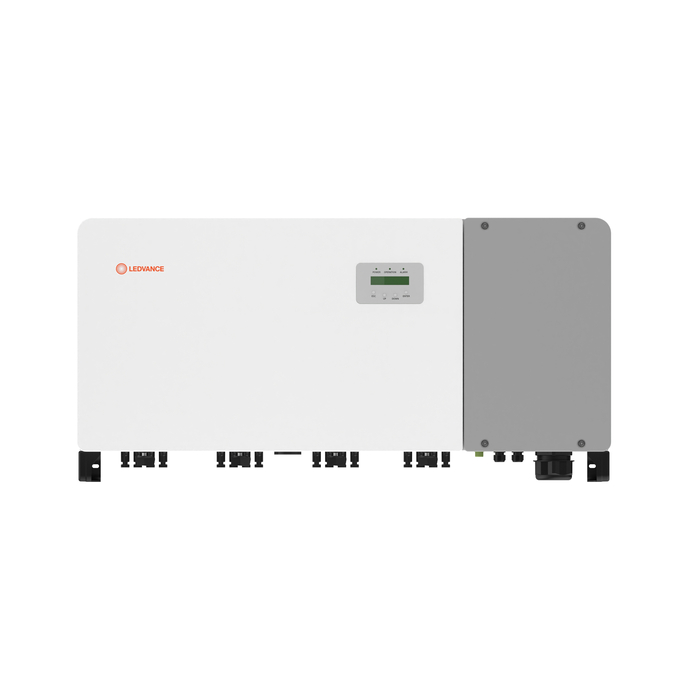

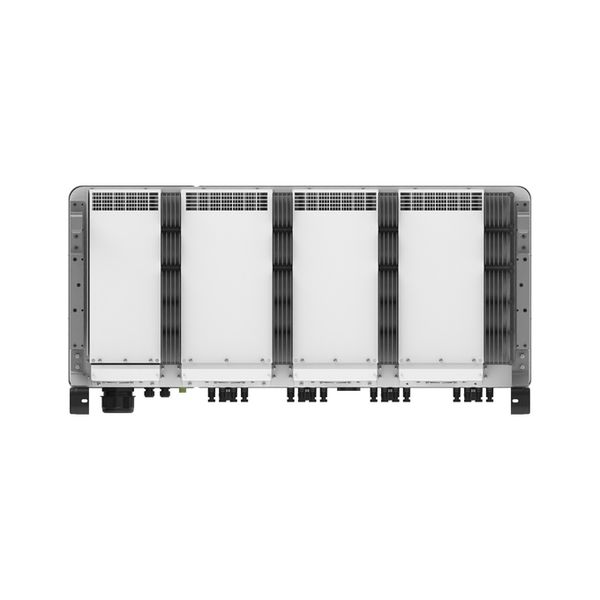

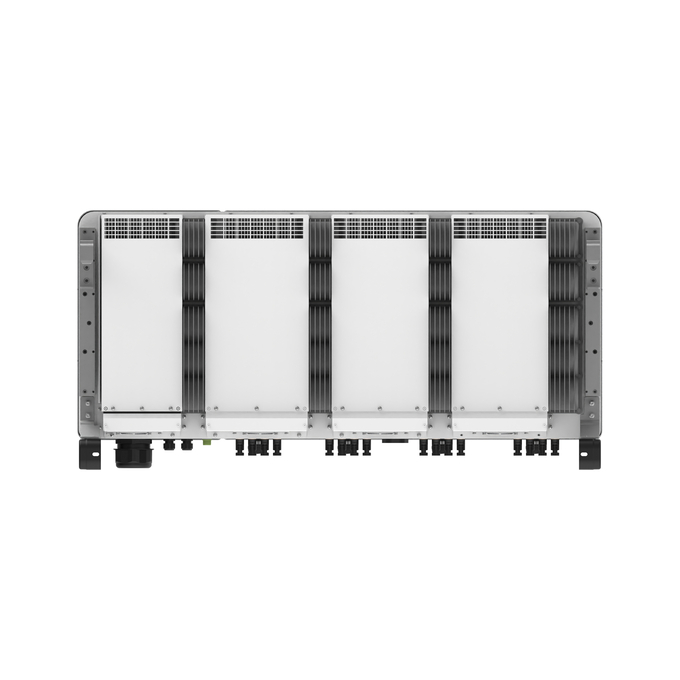

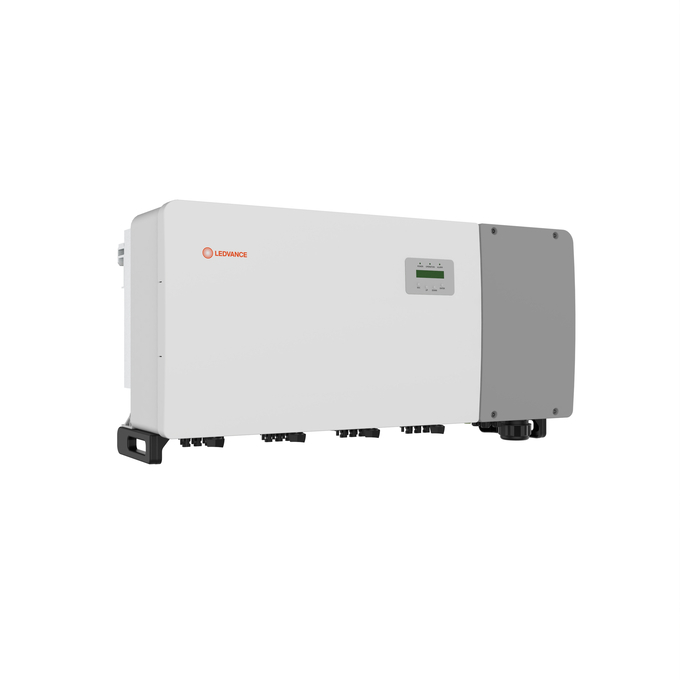

LT 110K F2-DC-AFCI-PID-WIET
4099854168048
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Wide voltage range and low startup voltage
- AFCI protection, proactively reduces fire risk
- Versions with PID available
- Level II surge protection on AC and DC side
- Automatic voltage stabilization technology in weak grid conditions
- Easy installation
Areas of application
- Commercial and industrial installations
- Utility installations
Product features
- Smart fan cooling
- Integrated DC switch
- Protection rating: IP66
- Original Stäubli MC4 connectors
Equipment / Accessories
- Mounting bracket included
- Data logger included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- Fastening screws included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-30…+60 °C
Charging controller integrated
No
Connection DC for battery
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Display
Standard
Ethernet
Yes
European efficiency
98.00 %
GTIN
4099854168048
Height
585 mm
Input voltage DC
600 V
Integrated DC switch
Yes
Integrated transformer
No
Length
1183 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), N,N-Dimethylformamide (68-12-2), 1,3,5-Triazine-2,4,6-triamine (108-78-1) , Bis(α,α-dimethylbenzyl) peroxide (80-43-3), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Max. input current DC
40 A
Max. input current DC per MPP tracker
40 A
Max. input current DC per string input
20 A
Max. input power DC
165 kW
Max. short circuit current per MPPT
50 A
Maximum efficiency
98.50 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
160 - 1000 V
Nominal output power AC
110 kW
Number of independent MPPT inputs
8
Outdoor application
No
Output phases
3-phase
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
77000.000 g
String connections per MPPT input
2
Suitable for emergency power
No
Temperature range in operation
-30…+60 °C
Type of connection
Staubli MC4
Type of protection
IP66
Width
363 mm
Wireless
Yes
With data logging
Yes
