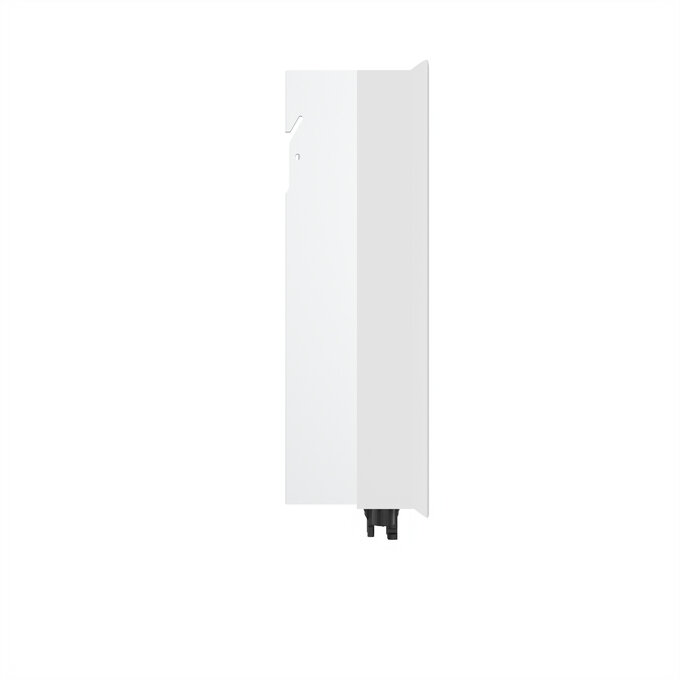

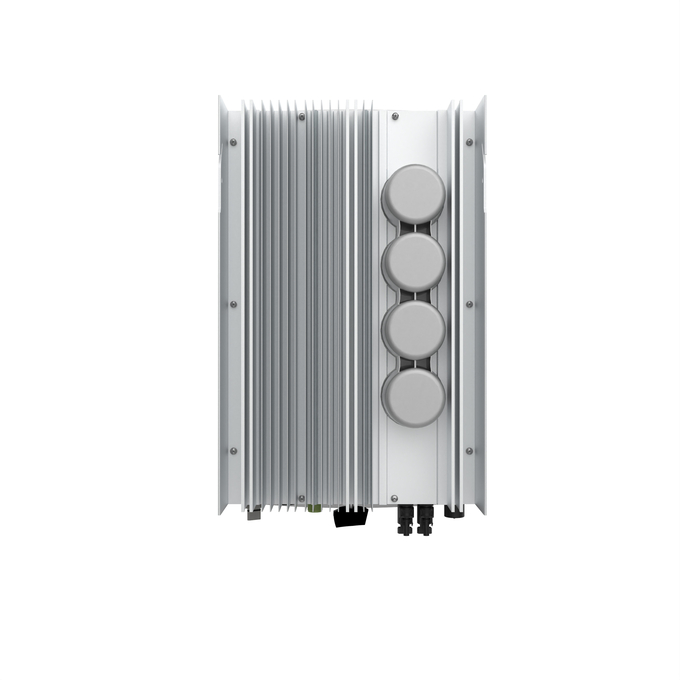

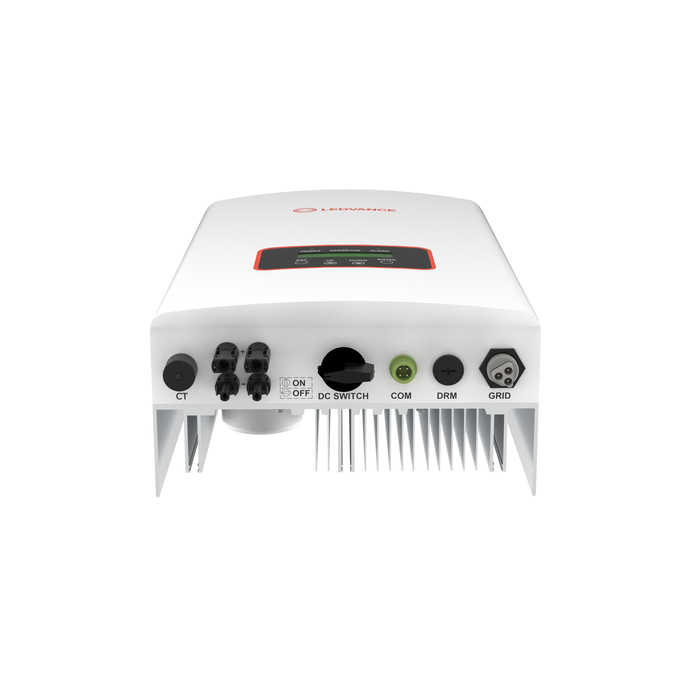

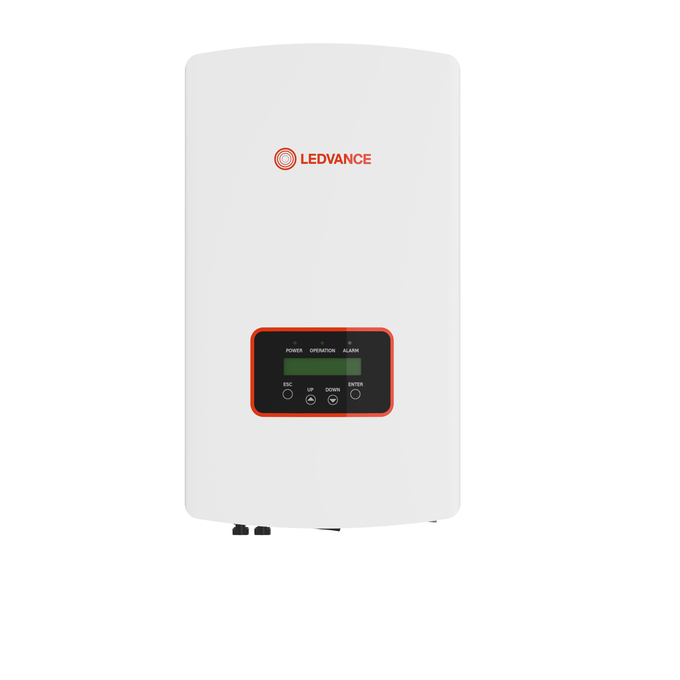

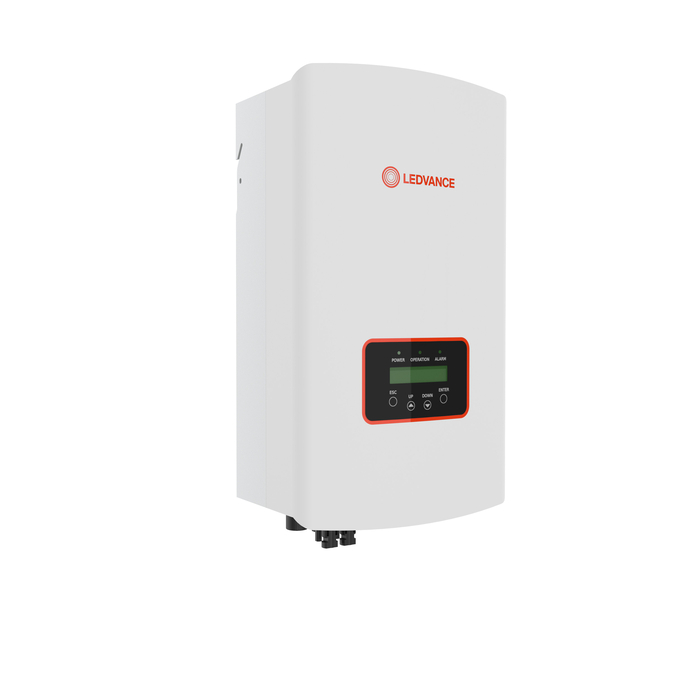

LS 2.5K F2-DC-AFCI-WIET
4099854168185
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Low startup voltage starting from 60 V
- AFCI protection, proactively reduces fire risk
- Level II surge protection on AC and DC side
Areas of application
- Residential installations
Product features
- Cooling by natural convection
- Integrated DC switch
- Protection rating: IP66
- Original Stäubli MC4 connectors
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- RJ45 connector included
- Fastening screws included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-25…+60 °C
Charging controller integrated
No
Connection DC for battery
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Display
Standard
Ethernet
Yes
European efficiency
96.50 %
GTIN
4099854168185
Height
543 mm
Input voltage DC
250 V
Integrated DC switch
Yes
Integrated transformer
No
Length
310 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Bisphenol A (BPA) (80-05-7) Tetraboron disodium heptaoxide, hydrate (12267-73-1) Boric Acid Orthoboric acid, sodium salt (13840-56-7) Lead (7439-92-1) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (71868-10-5 ) Dodecamethylcyclohexasiloxane _D6
Max. input current DC
14 A
Max. input current DC per MPP tracker
14 A
Max. input current DC per string input
14 A
Max. input power DC
3.75 kW
Max. short circuit current per MPPT
22 A
Maximum efficiency
97.30 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
50 - 450 V
Nominal output power AC
2.5 kW
Number of independent MPPT inputs
2
Outdoor application
No
Output phases
Single phase
Packaging recyclability
Mostly recyclable packaging 1)
Power consumption
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
11000.000 g
String connections per MPPT input
1
Suitable for emergency power
No
Temperature range in operation
-25…+60 °C
Type of connection
Staubli MC4
Type of protection
IP66
Width
160 mm
Wireless
Yes
With data logging
Yes
