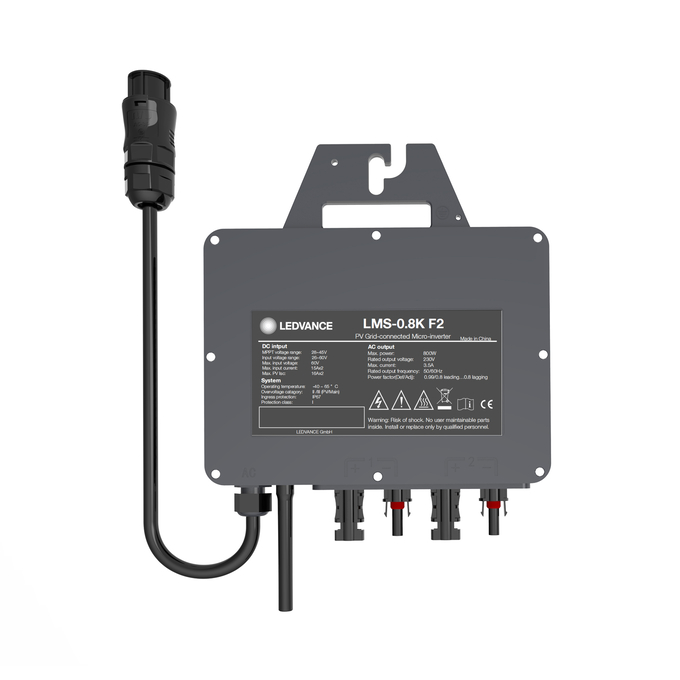

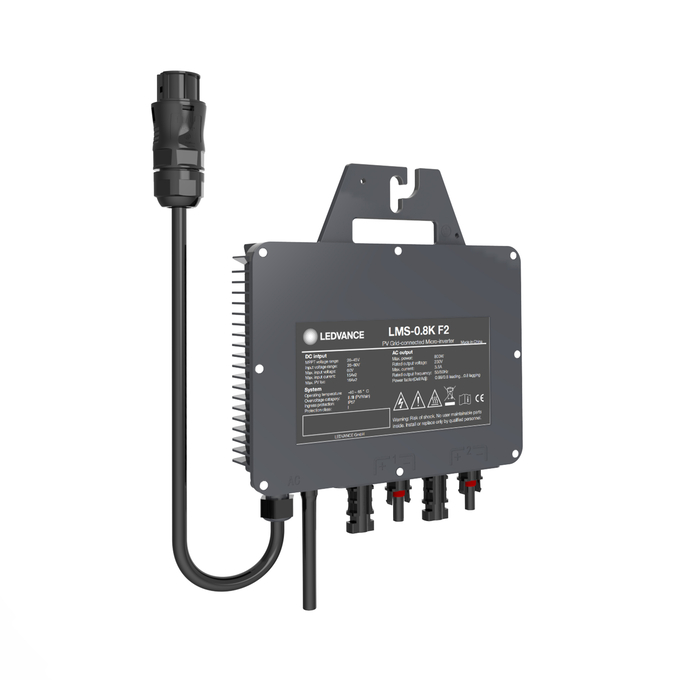

LMS 0.8K F2
4099854583568
Product benefits
- Flexibility for panel layout and expansion
- Outdoor applications only
- No additional Wi-Fi transmitter needed
- Easy operation and installation
- Cooling by natural convection
- 12 years of product guarantee
Areas of application
- Residential installations
- Both roof and balcony systems
Product features
- Compact size
- Type of protection: IP67
- Wi-fi communication
- Wide operating temperature range: -40…+65 °C
Equipment / Accessories
- Additional DC connectors for the outlets on the microinverter are included
- AC connector included
- Mounting screws included
- Antenna included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-45…+65 °C
CEC efficiency (US products)
94 %
Charging controller integrated
No
Connection DC for battery
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Ethernet
No
European efficiency
94 %
GTIN
4099854583568
Height
220 mm
Input voltage DC
60 V
Integrated DC switch
No
Integrated transformer
Yes
Length
220 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Max. input current DC
30 A
Max. input current DC per MPP tracker
30 A
Max. input current DC per string input
15 A
Max. input power DC
960 W
Max. short circuit current per MPPT
18 A
Maximum efficiency
95 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
30-45 V
Nominal output power AC
800 W
Number of applicable PV modules
2
Number of independent MPPT inputs
2
Number of string connections
1
Outdoor application
Yes
Output phases
Single phase
Packaging recyclability
Mostly recyclable packaging 1)
Power consumption
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
3000.000 g
String connections per MPPT input
1
Suitable for emergency power
No
Temperature range in operation
-45…+65 °C
Type of connection
MC4-Compatible
Type of protection
IP67
Usable battery capacity
No
Width
37 mm
Wireless
Yes
With data logging
Yes
