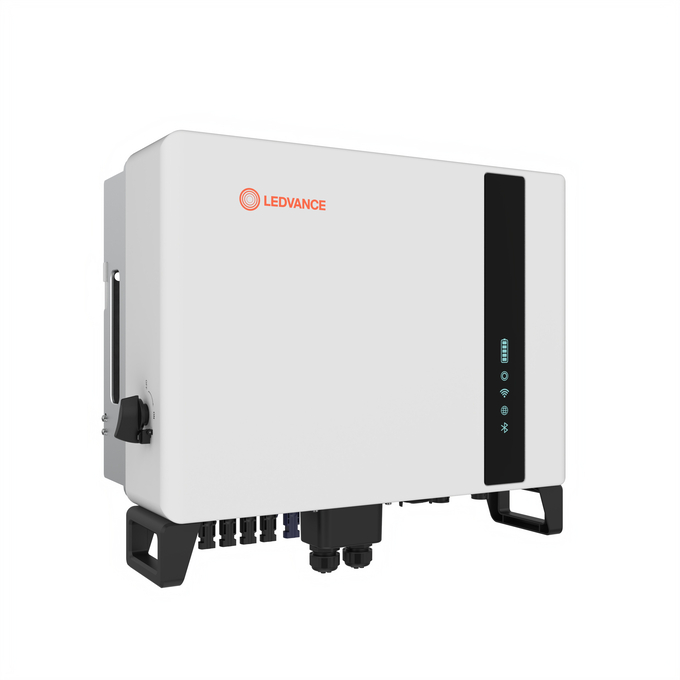

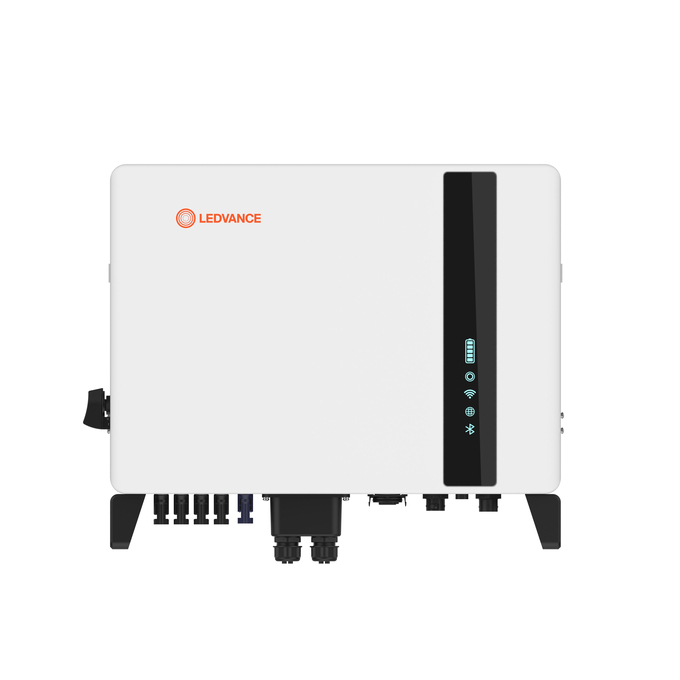

LHT-HV 10K F2-DC-AFCI-WIBE-MTR
4099854168123
Product benefits
- 10 years of product guarantee
- Compatible with many energy storage systems manufacturers
- Possible selection of different work modes
- Inverter is powered by the grid or the battery and is independent of the PV panels
- Bluetooth connection possible
- Charge / discharge of the energy storage system is faster than with LV version
- AFCI protection, proactively reduces fire risk
Areas of application
- Residential installations
Product features
- 1 battery input

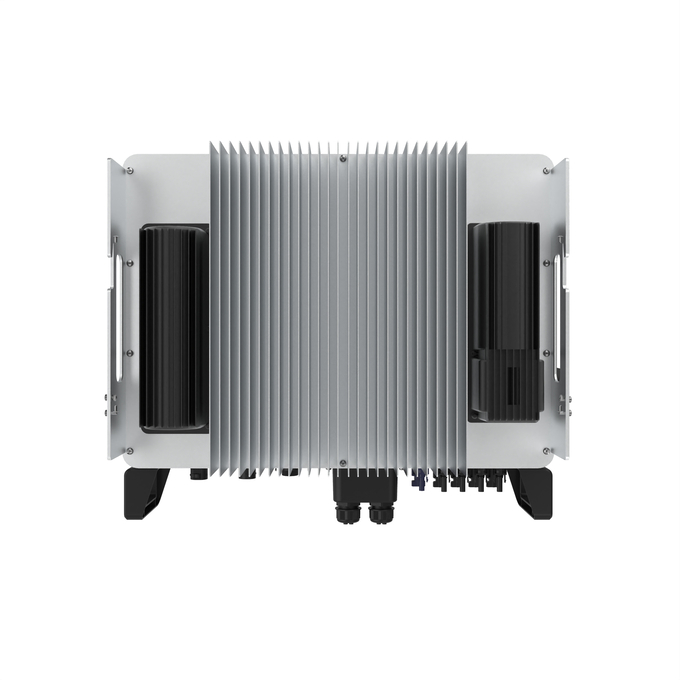

- Cooling by natural convection
- Protection rating: IP66
- Original Stäubli MC4 connectors
- Up to 50 A of charging/discharging current
- UPS level switching time (< 10 ms) supporting critical loads all the time
Equipment / Accessories
- Mounting bracket included
- Data logger included

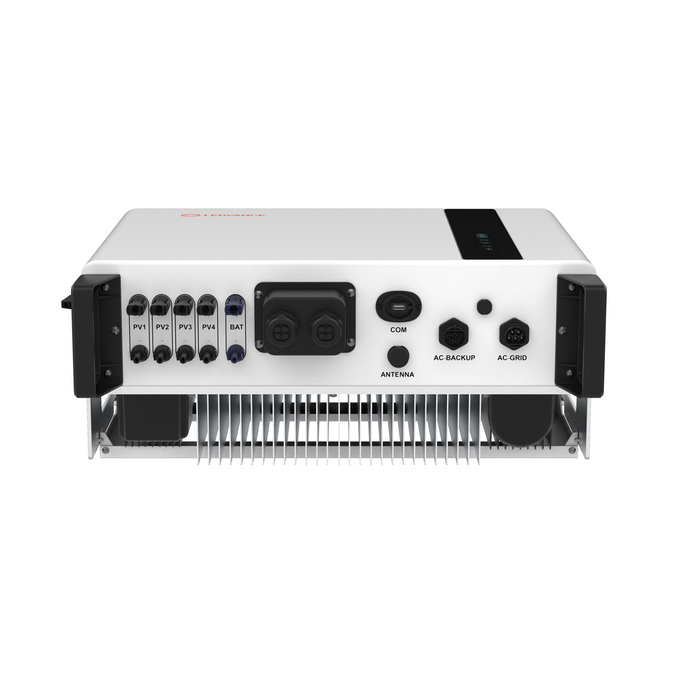

- AC and AC backup connector included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- Bluetooth antenna included
- Eastron meter and CT clamps included
- Power and communication cables for the battery system included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-25…+60 °C
Charging controller integrated
Yes
Connection DC for battery
Yes
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Display
Standard
Ethernet
Yes
European efficiency
97.50 %
GTIN
4099854168123
Height
500 mm
Input voltage DC
600 V

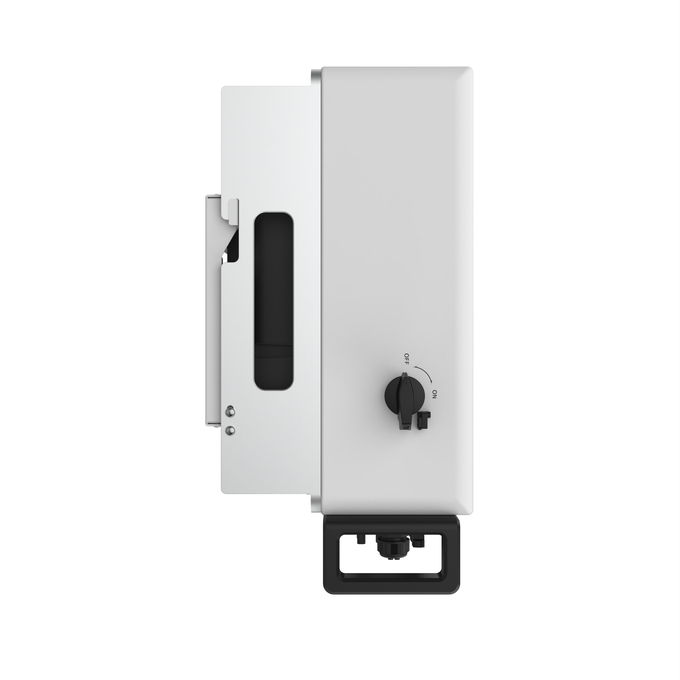

Integrated DC switch
Yes
Integrated transformer
No
Length
600 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-2Hbenzotriazol, 2-methyl, arsenic acid, barium chromate, Bis peroxide, Boric acid, bumetrizole (uv326), calcium arsenate, diarsenic pentaoxide, diarsenic trioxide, diboron trioxide, dioxobis(stearato), disodium octaborate, Disodium tetraborate, dodecame
Max. input current DC
16 A
Max. input current DC per MPP tracker
16 A
Max. input current DC per string input
16 A
Max. input power DC
16 kW
Max. short circuit current per MPPT
24 A
Maximum efficiency
98.00 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
200 - 850 V
Nominal output power AC
10 kW
Number of independent MPPT inputs
4
Outdoor application
No
Output phases
3-phase
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
32600.000 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
String connections per MPPT input
1
Suitable for emergency power
Yes
Temperature range in operation
-25…+60 °C
Type of connection
Staubli MC4
Type of protection
IP66
Width
230 mm
Wireless
Yes
With data logging
Yes
