LHS-LV 3.6K F1-DC-WIET-CT
4099854147944
Product benefits
- 10 years of product guarantee
- Built-in color LCD touchscreen next to buttons
- Supports storing energy directly from a diesel generator
- Compatible with many energy storage systems manufacturers
- Possible selection of different work modes
- Inverter is powered by the grid or the battery and is independent of the PV panels
Areas of application
- Residential installations
Product features

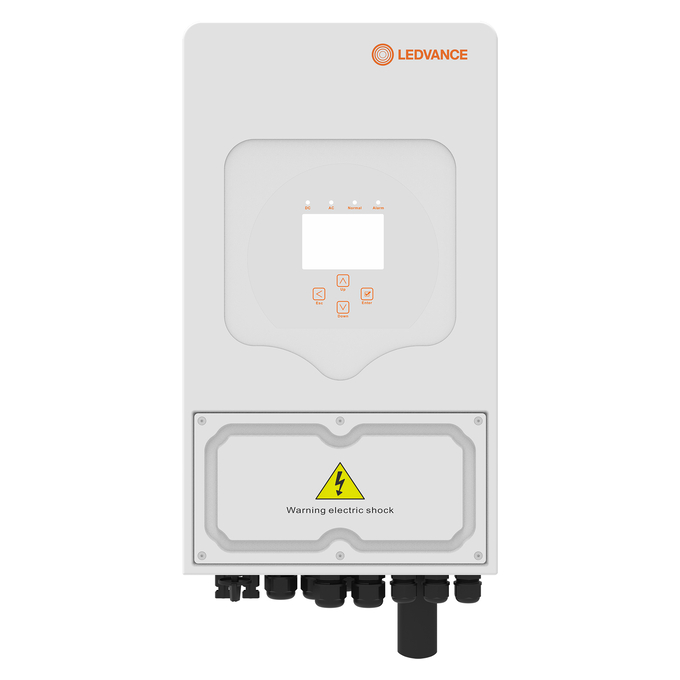

- Colorful touchable display LCD screen, IP65 protection degree
- Cooling by natural convection
- DC couple and AC couple to retrofit existing solar system
- Max. charging and discharging current of 90 A, 120 A and 135 A
- Support energy storage from diesel generator
- 6 time period setting for battery charging and discharging
Equipment / Accessories

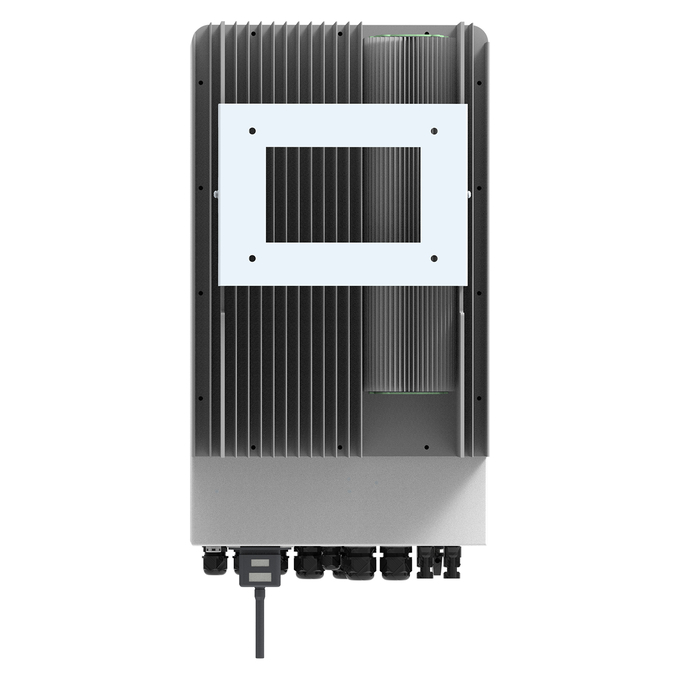

- Mounting bracket included
- Data logger included
- Allen key included
- Supplied with user manual

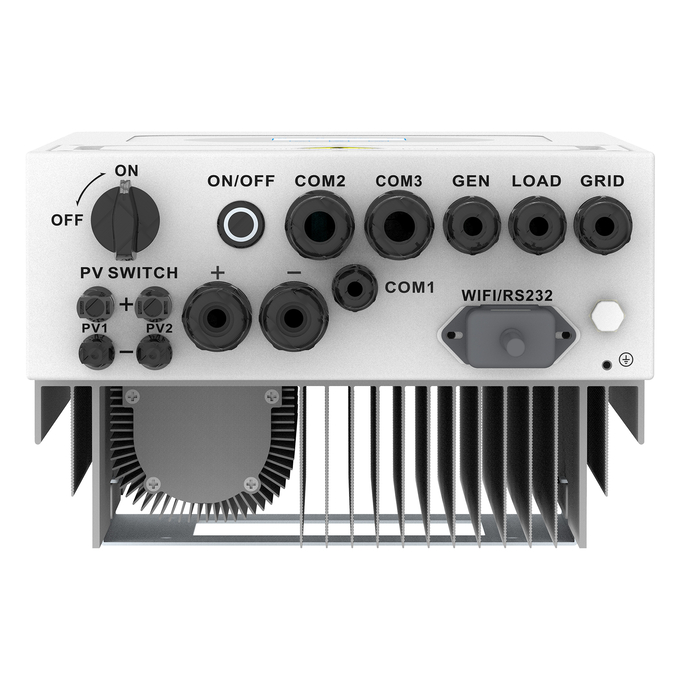

- Additional battery connectors for the outlets on the inverter
- Additional DC connectors for the outlets on the inverter
- CT clamps included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-40…+60 °C
Charging controller integrated
Yes
Connection DC for battery
Yes
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Display
Standard
Ethernet
Yes
European efficiency
96.50 %
GTIN
4099854147944
Height
580 mm
Input voltage DC
370 V
Integrated DC switch
Yes
Integrated transformer
Yes
Length
330 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1) 1,3,5-Triazine-2,4,6-triamine (68649-66-1) Tetrabromobisphenol A (79-94-7) Dodecamethylcyclohexasiloxane _D6_ (540-97-6) Bisphenol A (BPA) (80-05-7)
Max. input current DC
13 A
Max. input current DC per MPP tracker
13 A
Max. input current DC per string input
13 A
Max. input power DC
4.68 kW
Max. short circuit current per MPPT
17 A
Maximum efficiency
97.60 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
MPP voltage
150-425 V
Nominal output power AC
3.6 kW
Number of independent MPPT inputs
2
Outdoor application
No
Output phases
Single phase
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
22500.000 g
String connections per MPPT input
1
Suitable for emergency power
Yes
Temperature range in operation
-25…+60 °C 1)
Type of connection
MC4-Compatible
Type of protection
IP65
Width
232 mm
Wireless
Yes
With data logging
Yes
