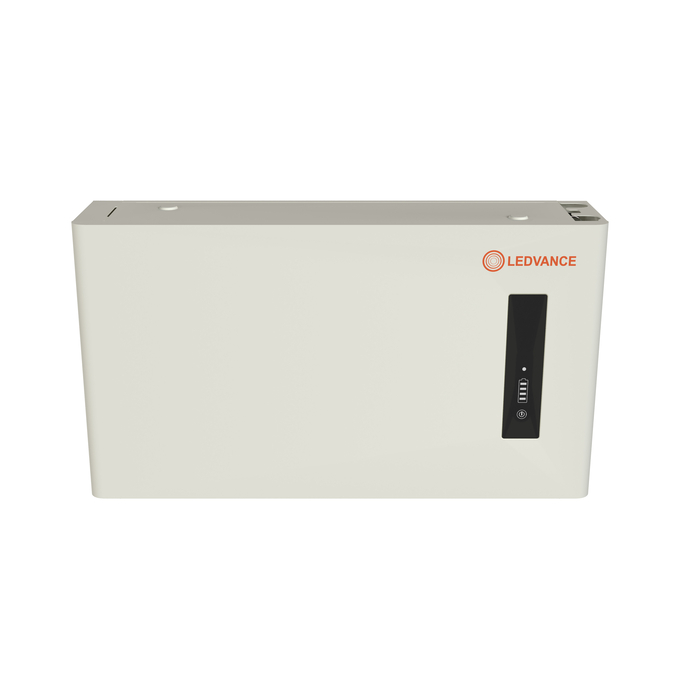

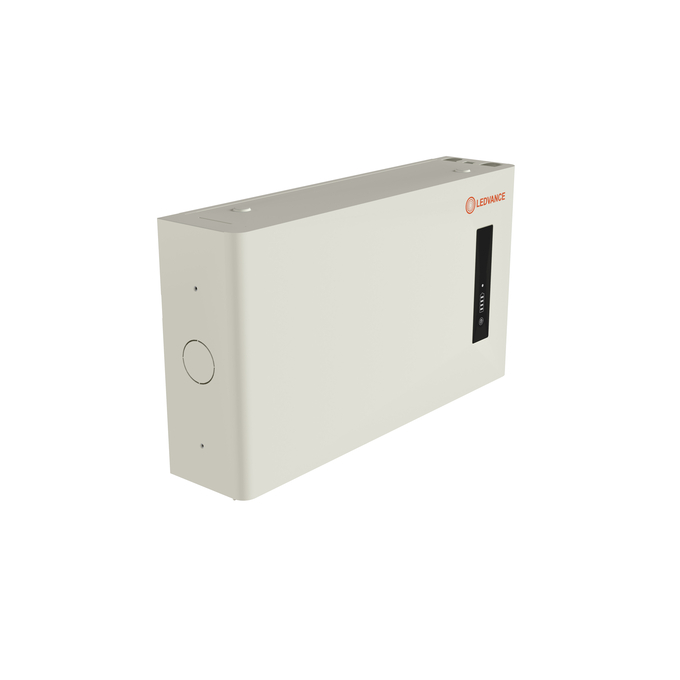

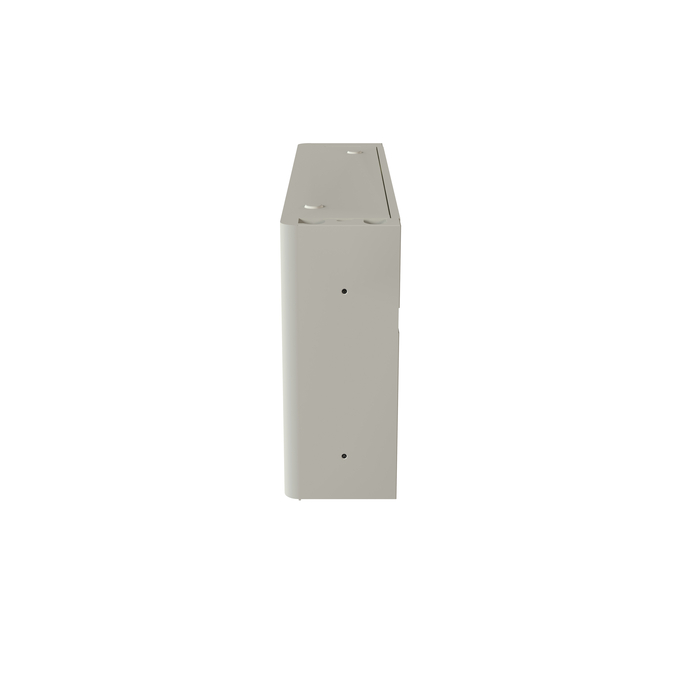

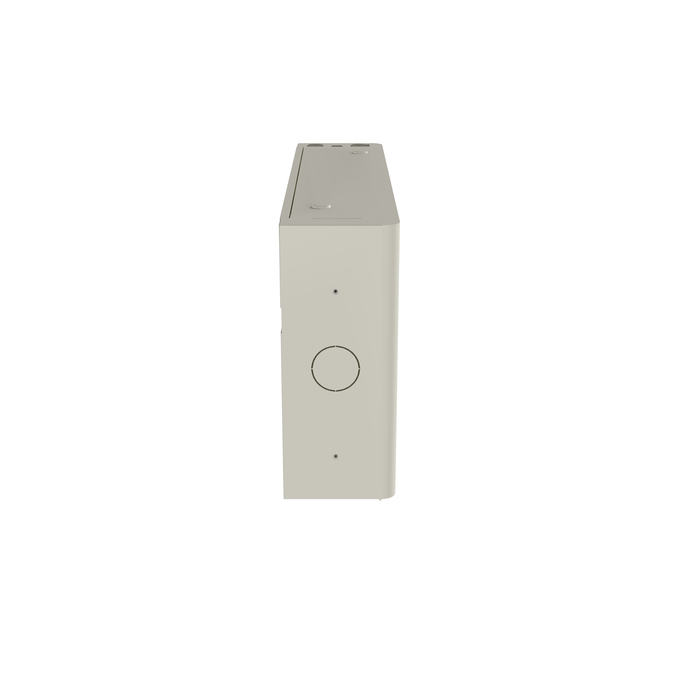

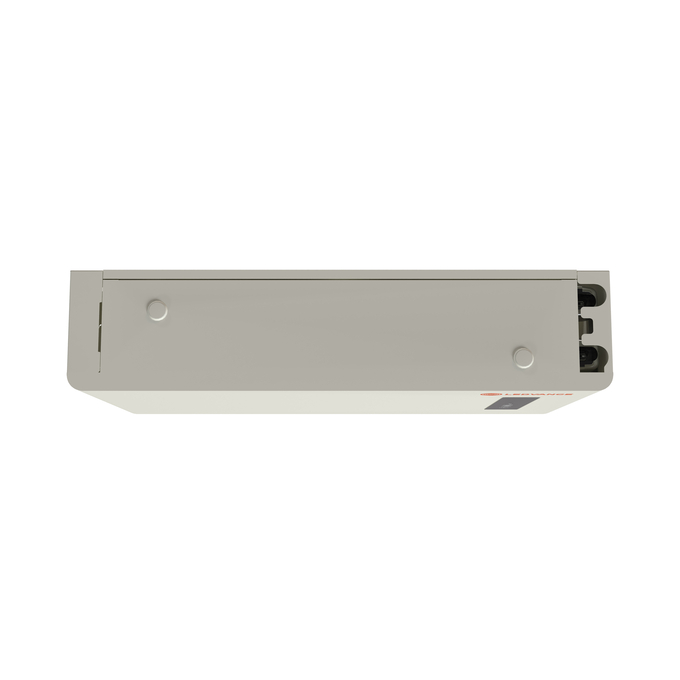

LES LV-5K-L-G01
4099854506826
Product benefits
- Compatible with different brands of inverters
- Easy and offline configuration
- Built-in pressure relief valve
- Stacks are connected in parallel
- 10 years of product guarantee or minimum throughput energy
- Environmental friendly
- Wide range of operating temperature
Areas of application
- Residential installations
- Commercial applications
Product features
- Already built-in battery management system (BMS) with working range from 40.0 - 58.4 V
- Control box included in every battery module

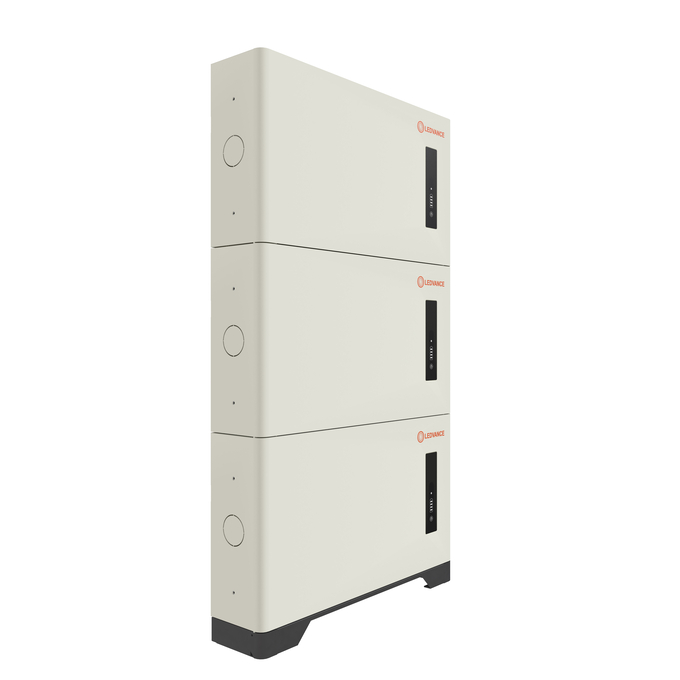

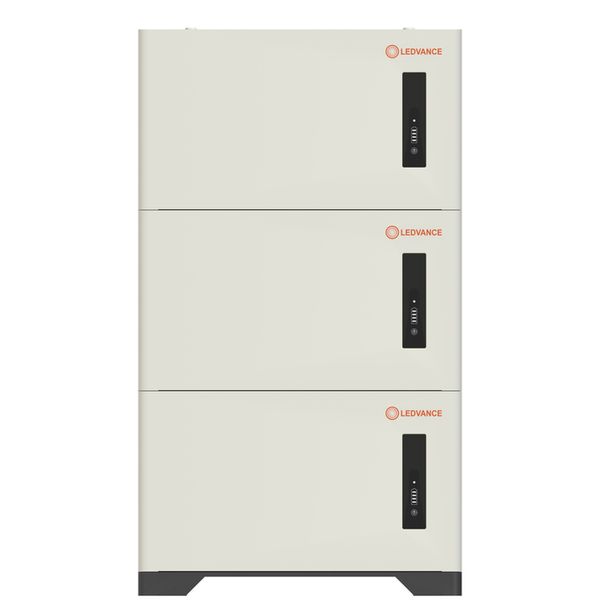

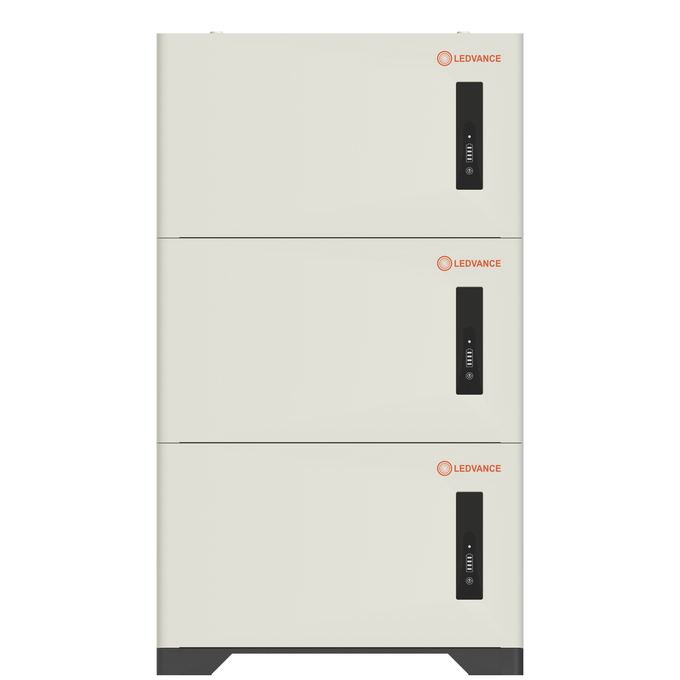

- Stackable from 1 to 4 modules with up to 20.5 kWh in one stack
- Dedicated app on mobile phone for remote monitoring and management
- LiFePO4 battery type for stable and efficient operation over many years
- Protection rating: IP65
- SOC LED display for battery energy level status
- Charging / discharging current of 50 A (nominal) and 100 A (peak)
- Thermal management system
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-10… +53 °C 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
GTIN
4099854506826
Height
152.50 mm
Length
680.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1,3,5-Triazine-2,4,6-triamine (108-78-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9),4-Nonylphenol (84852-15-3), 4,4 Isopropylidenedisphenol (80-05-7) (BPA), Tripnehyl Phosphate (115-86-6), Perfluorobutane sulfonic a
Max. depth of discharge
90 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model
Lithium ion
Nominal capacity of battery
5.12 kWh
Nominal voltage [PICOS]
51,2 V
Number of phases
1
Outdoor application
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
46000.00 g
Suitable for emergency power
Yes
Suitable for indoor installation
Yes
Type of current
DC
Type of protection
IP65
Usable battery capacity
4.864 kWh
Width
380.00 mm
