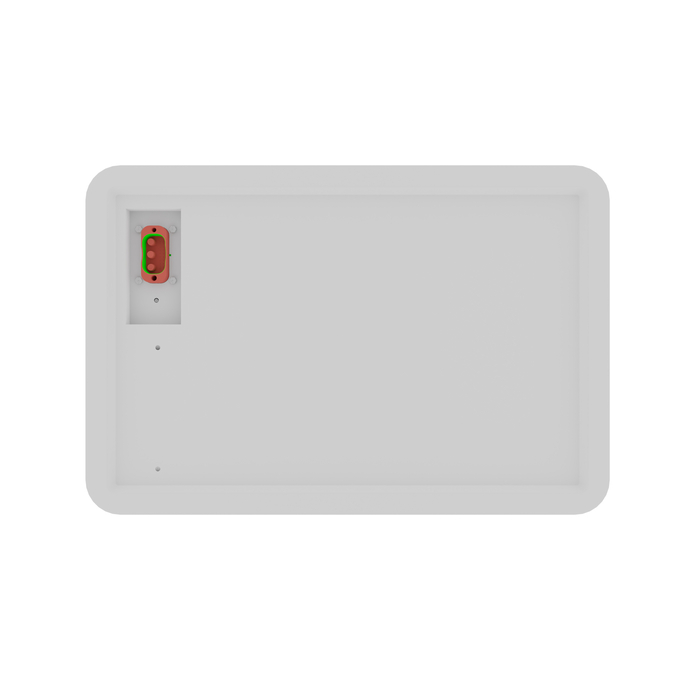

LES HV-4K
4099854199868
Product benefits
- High-voltage batteries provide superior performance compared to low-voltage batteries
- Compatible with different brands of inverters
- Easy and offline configuration
- Built-in explosion relief device

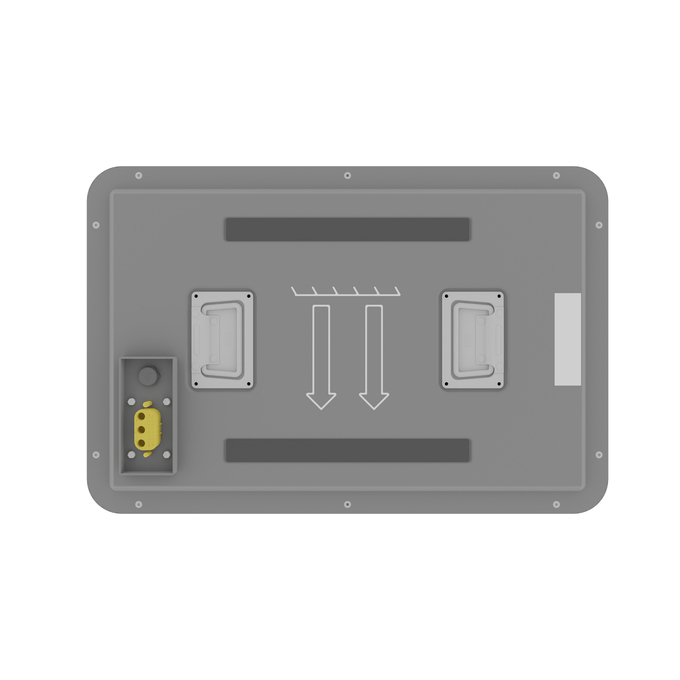

- Stacks are connected in series without cable connection
- 10 years of product guarantee
- Environmental friendly
Areas of application
- Residential installations
- Commercial and industrial installations
- Utility installations
Product features

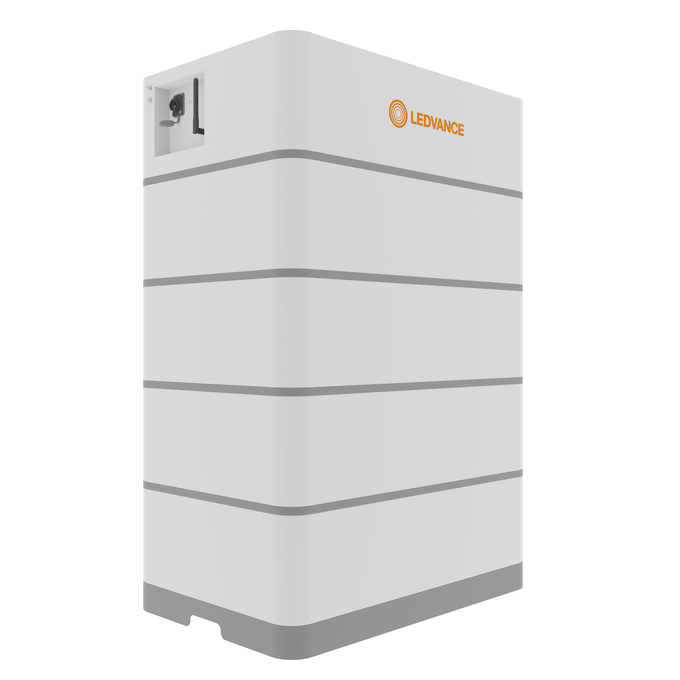

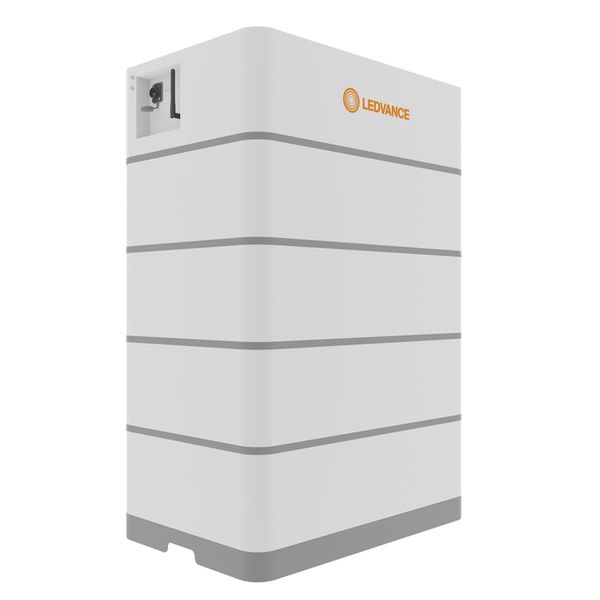

- Stackable from 2 to 6 modules with up to 24.6 kWh in one stack for F1 inverters
- Stackable from 2 to 5 modules with up to 20.5 kWh in one stack for F2 inverters
- Parallel connection possibility for more stacks
- Nominal voltage of 102.4 V
- Dedicated app on mobile phone for remote monitoring and management
- LiFePO4 battery type for stable and efficient operation over many years
- Protection rating: IP65
- Thermal management system
Equipment / Accessories

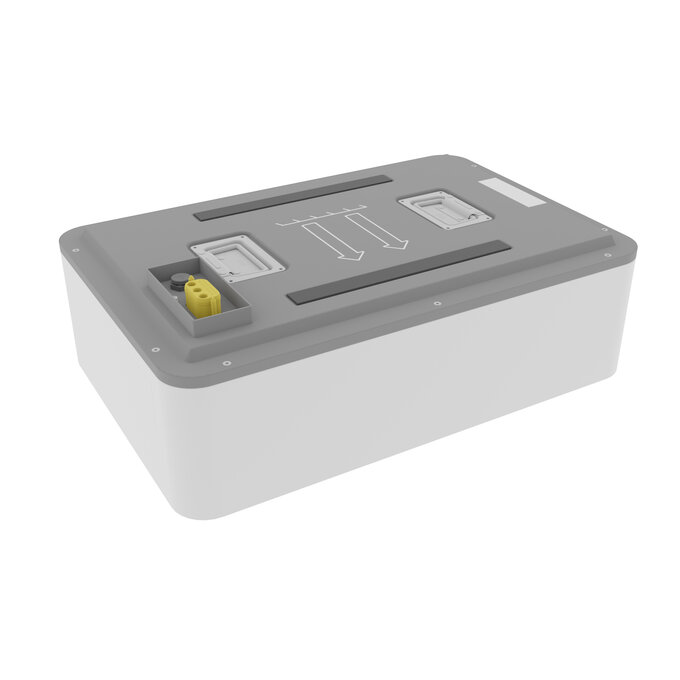

- Built-in handles for easier carrying
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
0…+35 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
GTIN
4099854199868
Height
170.00 mm
Length
600.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Max. depth of discharge
95 %
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model
Lithium ion
Nominal capacity of battery
4.096 kWh
Nominal voltage [PICOS]
102,4 V
Number of phases
1
Outdoor application
No
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
37000.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Suitable for emergency power
Yes
Suitable for indoor installation
Yes
Type of current
DC
Type of protection
IP65
Usable battery capacity
3.891 kWh
Width
400.00 mm
