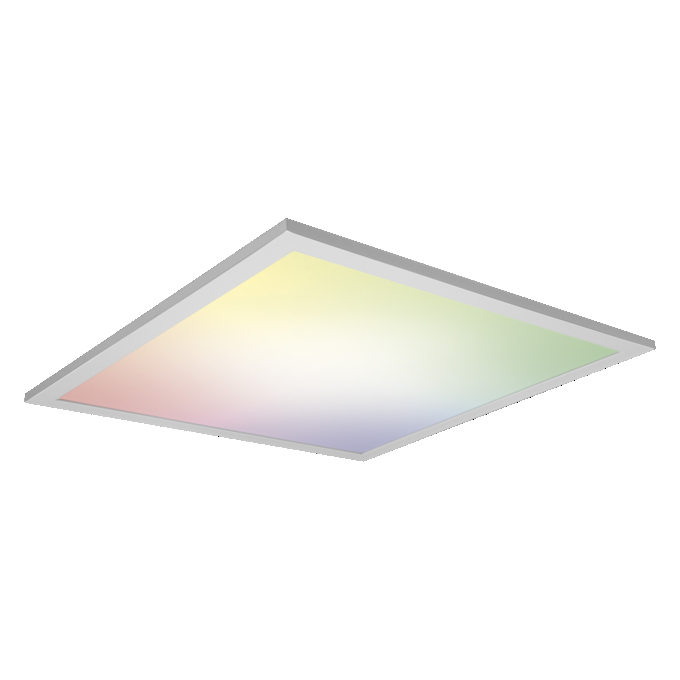

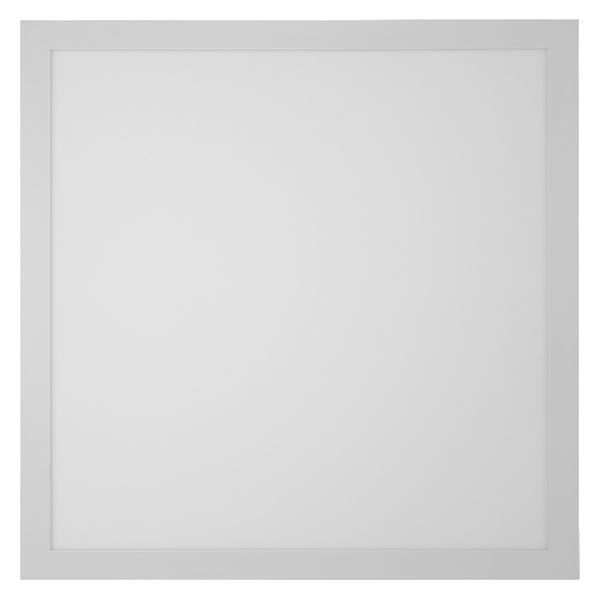

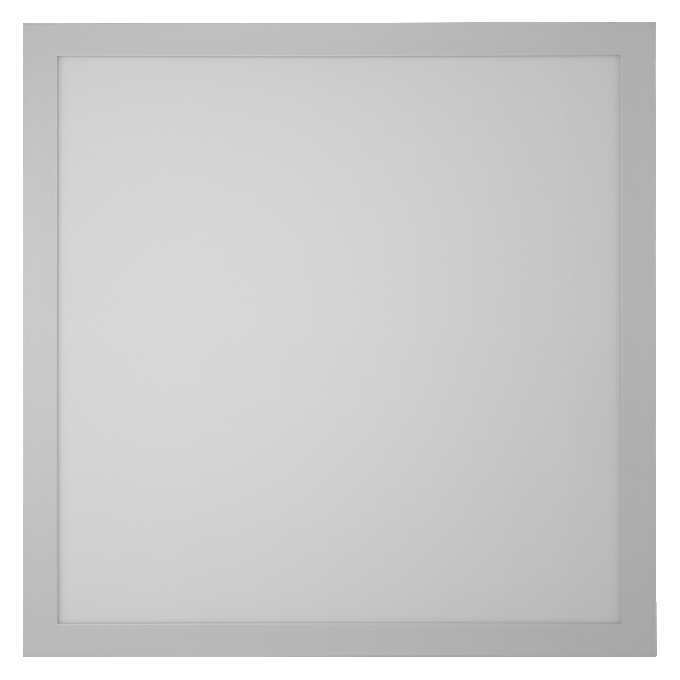

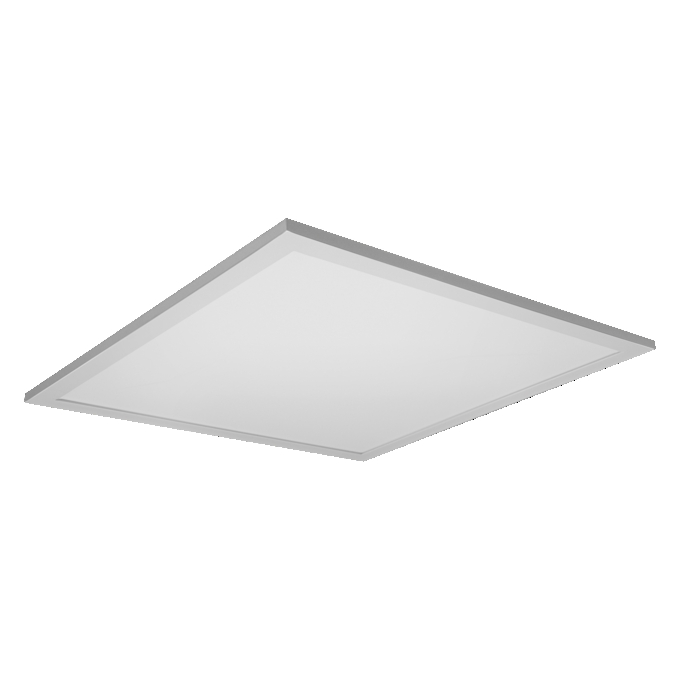

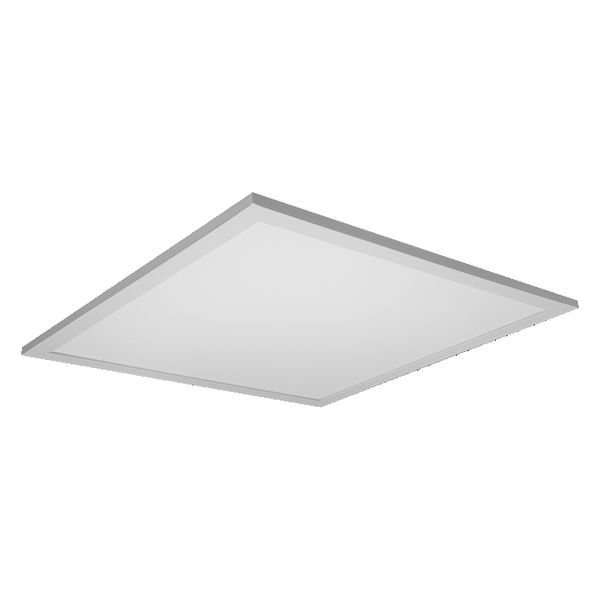

SMART+ MATTER Planon Plus Multicolor 450x450 mm
4058075857216
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- RGB color control, approx. 16 million color options adjustable
- Color temperature: 3,000 K (Warm White)
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075857216
Height
56.00 mm
Housing color
White
Length
450.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color (designation)
RGBW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
75 lm/W
Luminous flux
2100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C16
24
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
170.000 mA
Nominal voltage
220…240 V
Nominal wattage
28.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2120.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
3000 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP20/IP20
Width
450.00 mm
With light source
Yes
