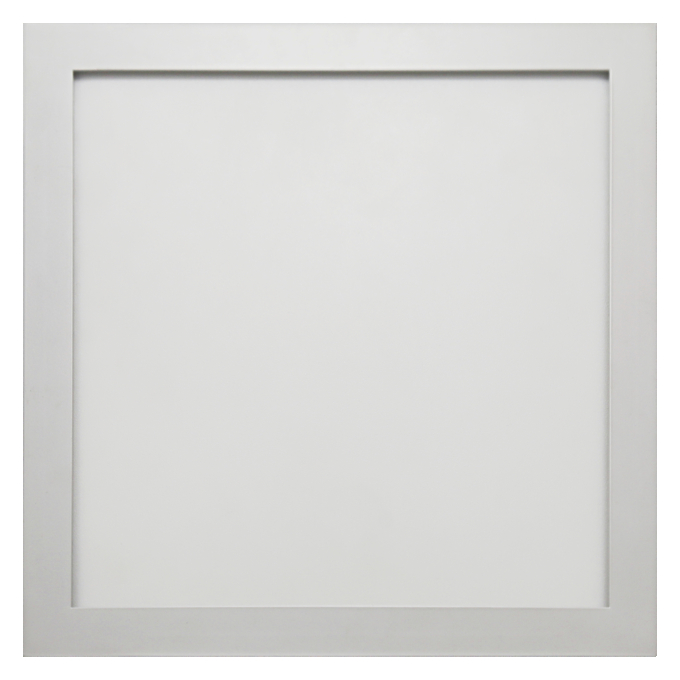

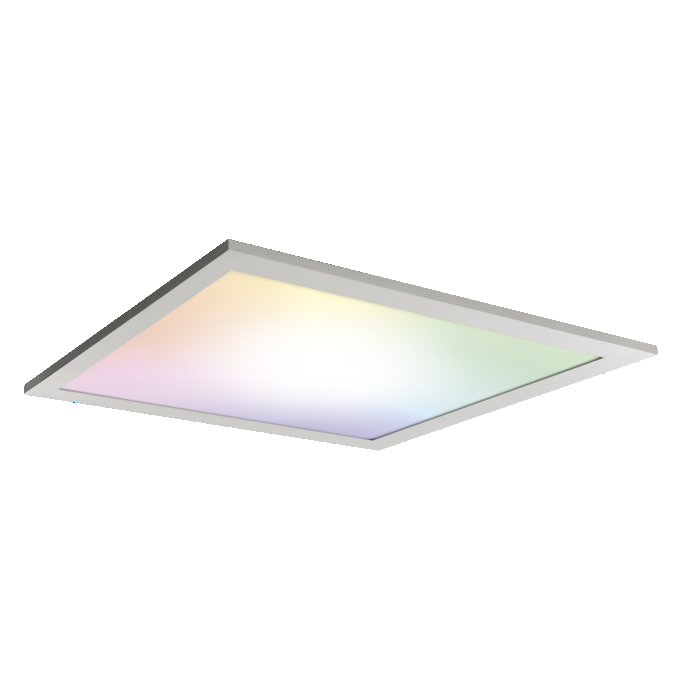

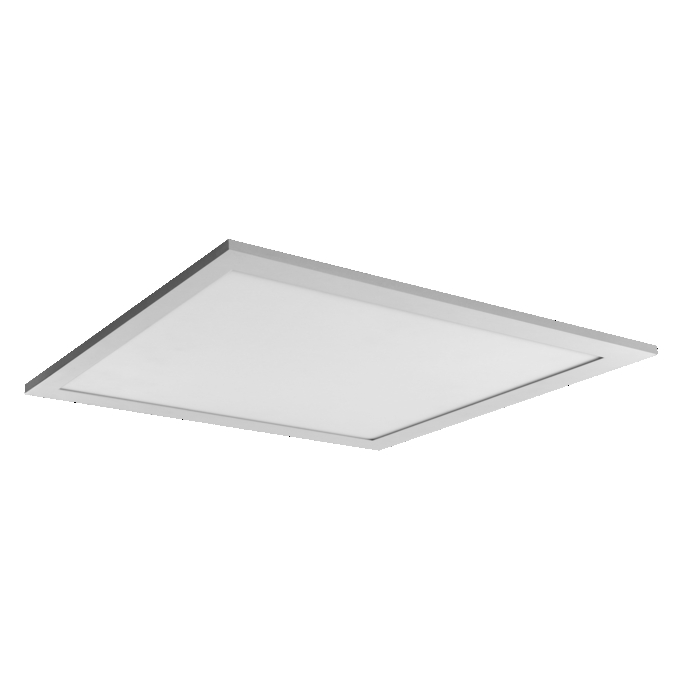

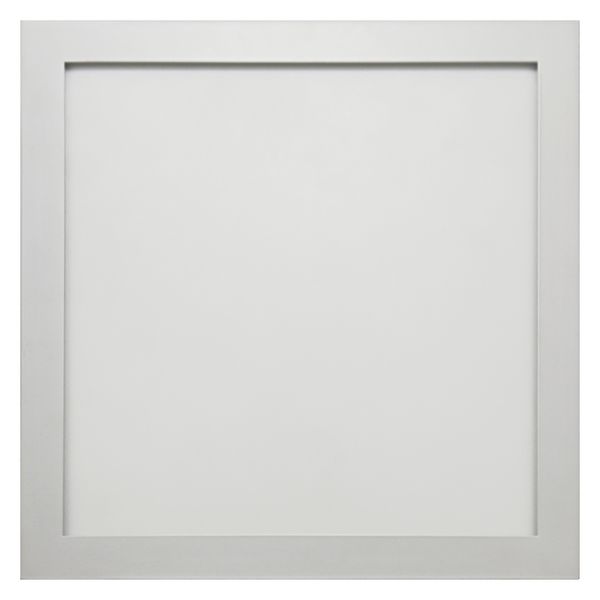

SMART+ MATTER Planon Plus Multicolor 300x300 mm
4058075857193
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- RGB color control, approx. 16 million color options adjustable
- Color temperature: 3,000 K (Warm White)
- Dimmable
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with WiFi Remote Control
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075857193
Height
56.00 mm
Housing color
White
Length
300.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color (designation)
RGBW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
1400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
91.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1150.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
2300 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
WiFi
Type of emergency operation test
None
Type of protection
IP20/IP20
Width
300.00 mm
With light source
Yes
