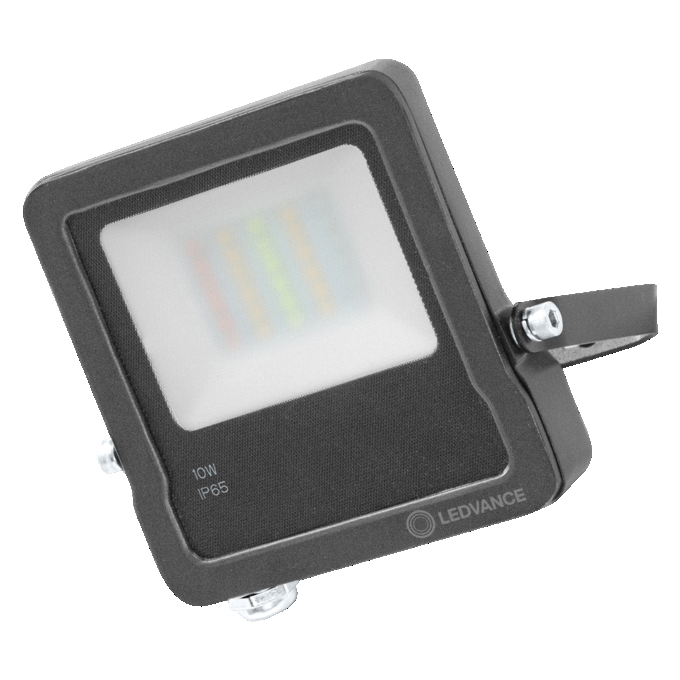

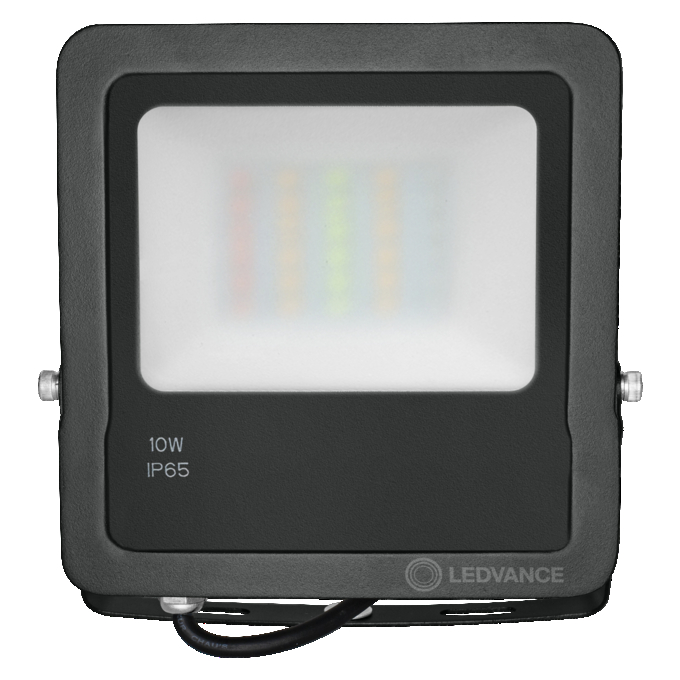

SMART+ MATTER Floodlight 10W Multicolour
4099854739989
Product benefits
- Easy and quick installation
- Colorful garden lighting with smart and intelligent control options
- Combines the functionality of general lighting and mood lighting
Areas of application
- Building facades
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa
- RGB color control, approx. 16 million color options adjustable
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Mounting bracket for up to 180° tilting
- Type of protection: IP65
- Connection via 0.5 m cable, wiring required
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
- Network protocol: Matter over WiFi (2.4 GHz)
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Beam angle
100 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854739989
Height
153.00 mm
Housing color
Dark grey
Inrush current
15 A
Inrush current time Th50
200 µs
Length
129.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color (designation)
RGBW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
800 lm
Luminous intensity
340 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C16
32
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
＜5 m
Mounting location
Wall
Mounting type
Surface
Nominal current
45 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.90
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
Product weight
380.00 g
Protection class
I
Protection class IK (shock resistance)
IK05
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+85 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
900 lm
Type of connection
Cable, 3-pole
Type of emergency operation test
None
Type of protection
IP65/IP65
Width
27.00 mm
With light source
Yes
