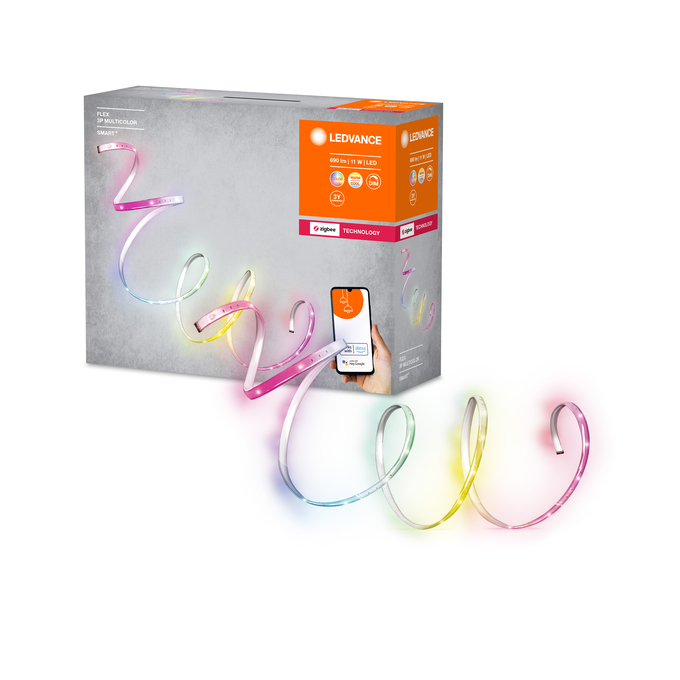

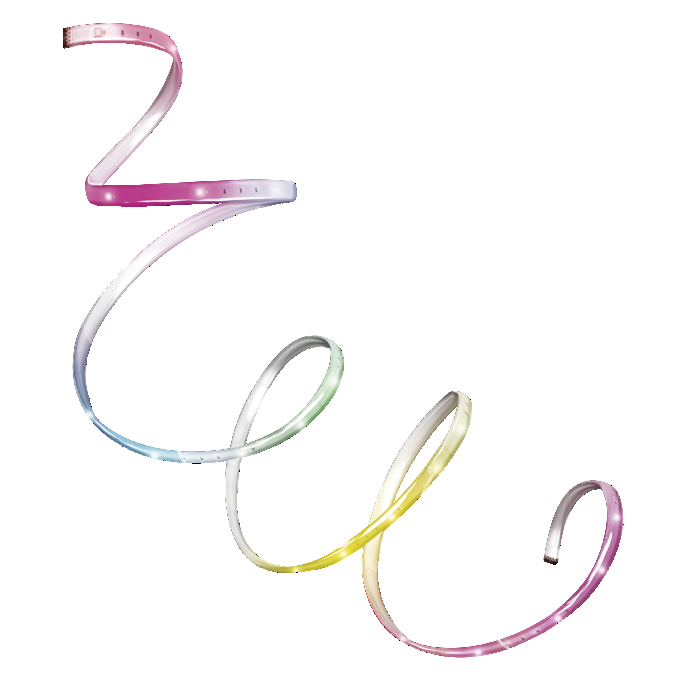

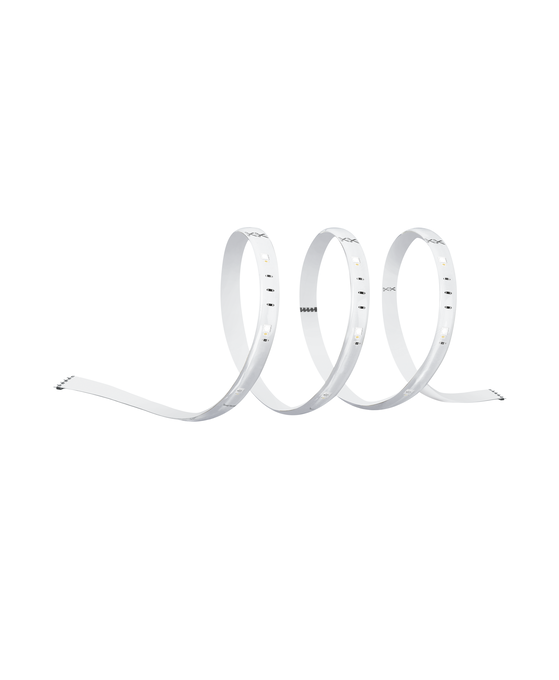

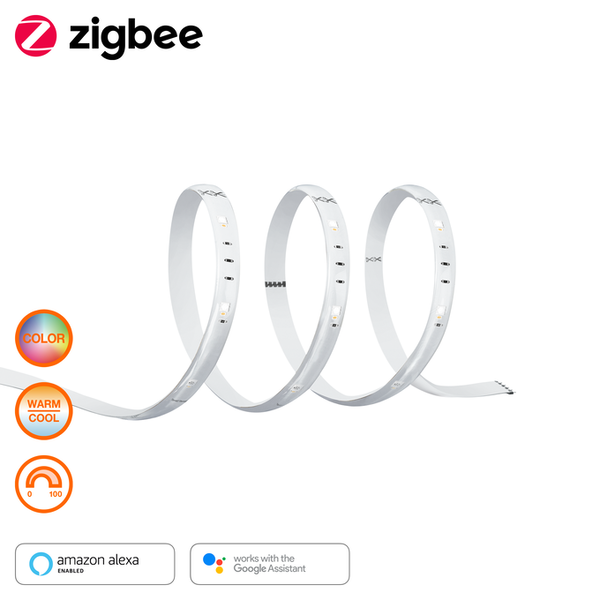

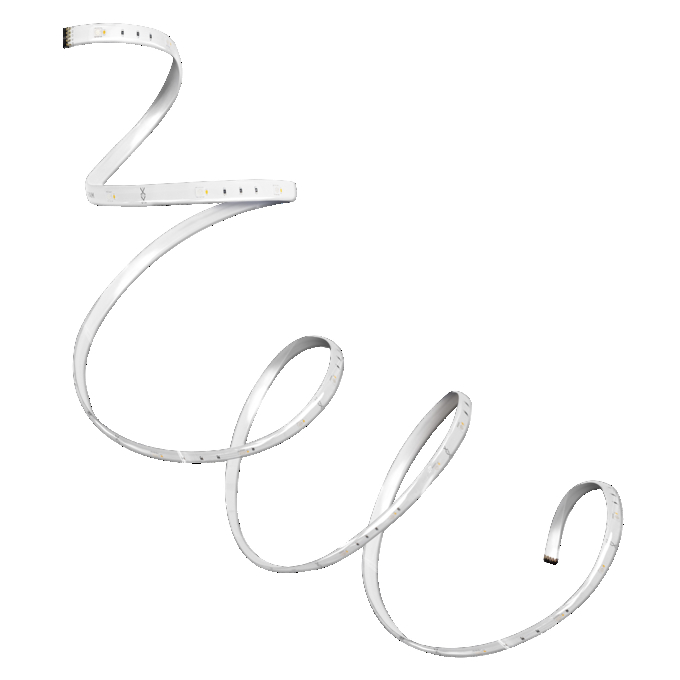

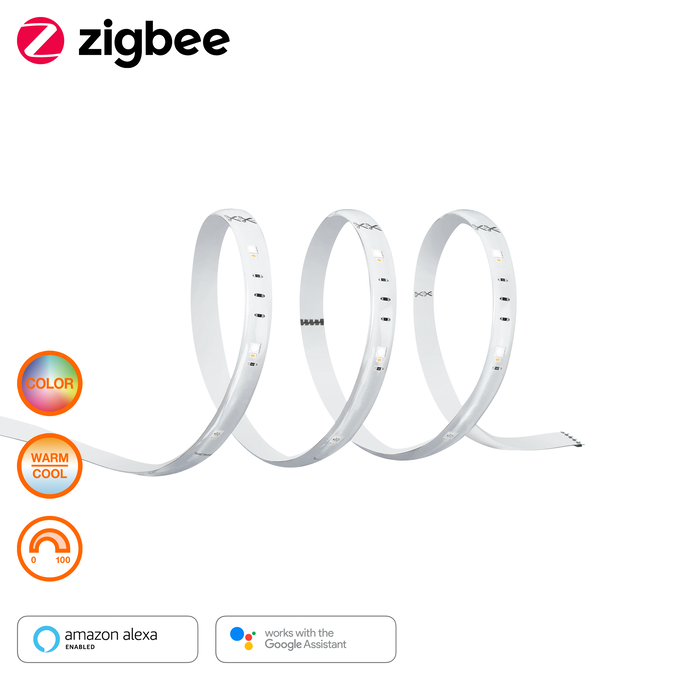

SMART+ ZB FLEX 3P RGBW
4058075729384
Product benefits
- Splittable in three parts and extendable with SMART+ FLEX 2P EXTENSION
- Easy to install and use
Areas of application
- General illumination
Product features
- Flexible, self-adhesive RGBW strip with wireless smart lighting function
- RGB color control, approx. 16 million color options adjustable
- Adjustable color temperature via Tunable White: 2,000…6,500 K
- Dimmable
- Network protocol: ZigBee
- Lifetime: up to 20,000 h
- Controllable via compatible smart home system (gateway and app) or SMART+ Switch
- For full functionality, connection to a compatible smart home System (gateway and app) required
- Extendable up to 5 meters
Equipment / Accessories
- Control via app requires LIGHTIFY system (app and gateway) or other compatible Smart home system
- Power supply included (except extension version of product)
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Plastic
Color rendering index Ra
≥80
Color temperature
2000 … 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
Flickering metric (Pst LM)
< 1
GTIN
4058075729384
Height
3.00 mm
Inrush current
37 A
Length
1800.00 mm
Light color (designation)
RGBW
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lowest bending radius
30,0 mm
Luminous efficacy
64 lm/W
Luminous flux
700 lm
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
All surfaces
Nominal current
65.000 mA
Nominal voltage
220…240 V
Nominal wattage
11.00 W
Number of switching cycles
15000
Operating frequency
50…60 Hz
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.5
Product color
Transparent
Product recyclability
Mostly recyclable product 1)
Product remark
Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
Product weight
300.00 g
Protection class
II
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Self-adhesive
No
Standard deviation of color matching
< 6 sdcm
Standards
CE
Starting time [PIM]
< 0.5 s
Stroboscope effect metric (SVM)
< 0.4
Temperature range in operation
-20…+40 °C
Total harmonic distortion
< 70 %
Type of current
AC
Type of protection
IP20
Width
12.00 mm
