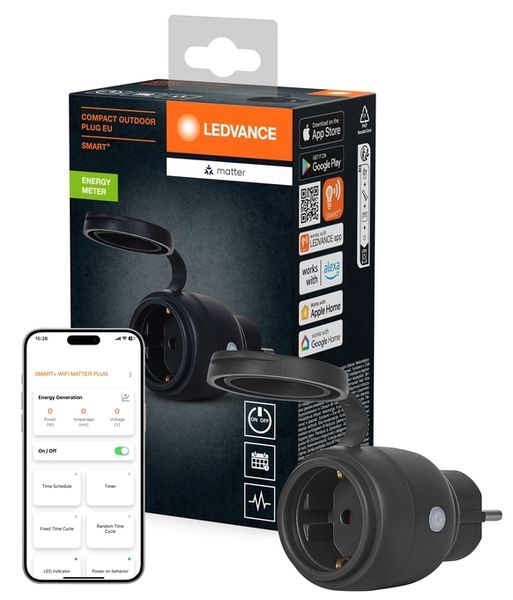

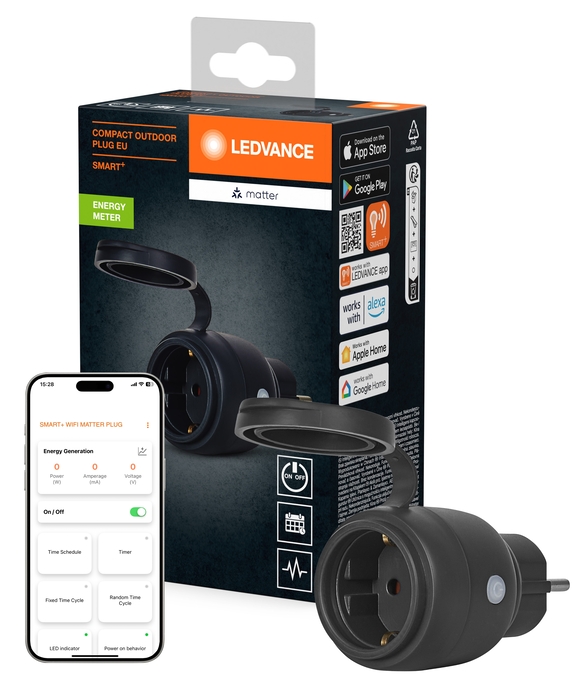

SMART+ MATTER Compact Outdoor Plug EU
4099854293238
Product benefits
- Matter 1.3 certified – supports energy meter via Matter
- Wireless control via app or voice control
- Seamless integration with Matter-compatible systems
- Simplified set up process due to the standard user-friendly installation steps
- Enhanced security by implementing strong encryption and authentication protocols
- Integrates conventional electric equipment into compatible smart home systems
- Enables switching of conventional light sources and other electric devices
- Fit for outdoor use with IP44, the protection against splash water
- Simple connection of electric devices via standard socket
- Monitors energy usage of connected devices or tracks the energy generation of small solar systems
Areas of application
- Wherever non-smart devices need to be integrated into compatible smart home systems
- When users want to mix and match smart home products from different manufacturers
- Gardens, balconies and other outdoor areas
- To measure the energy generation of small solar systems
Product features
- High switching power: up to 3,680 W / 16 A
- Type of protection: IP44
- Energy meter
- Scheduling
- Network protocol: Matter over WiFi (2.4 GHz)
- Compatible with Amazon Alexa, Google Home, Apple Home, Samsung SmartThings and other Matter-compatible platforms
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Compatible with WiFi Remote Control (check remote control compatibility list for details)
Safety advice
- Disconnect devices which generate heat from the mains, after use in order to avoid them being accidentally switched on.
- Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
- Do not use the SMART+ Plug in conjunction with medical equipment.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To be connected to an automatic circuit breaker (max. 16 A).
References / Links
- Further information and frequently asked questions (FAQs) at
Ambient temperature range
-20…+35 °C
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
GTIN
4099854293238
Height
101.0 mm
Length
57 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
16 A
Nominal voltage
230 V
Number of switching cycles
10000
Over voltage protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
109.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range at storage
-20…+80 °C
Temperature range in operation
-10…+35 °C
Type of installation
Other
Type of protection
IP44
Width
73 mm
