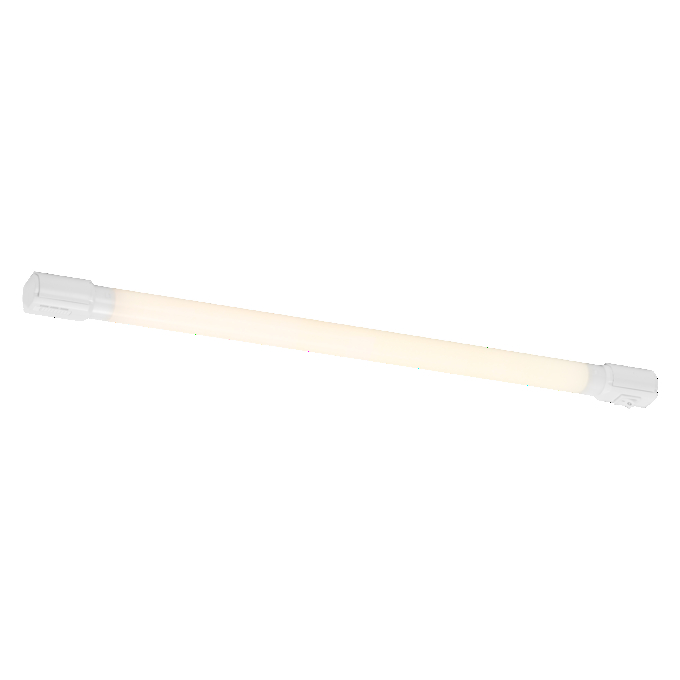

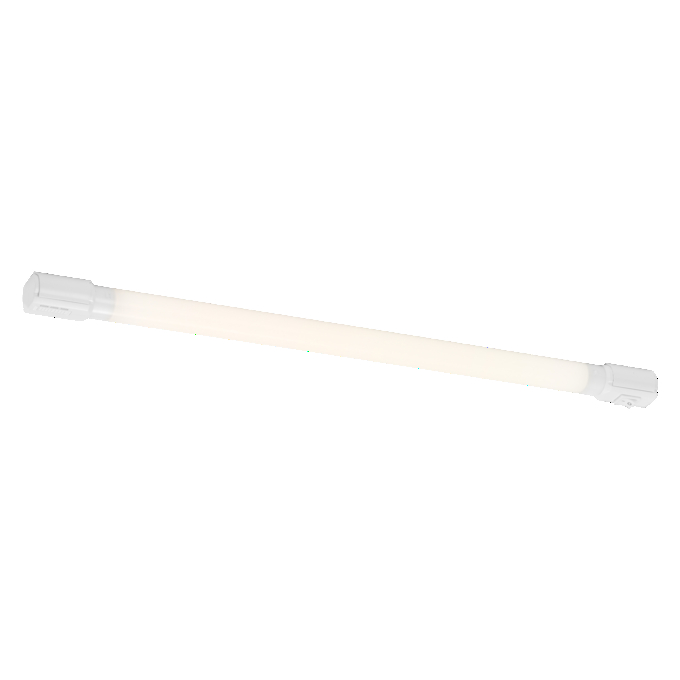

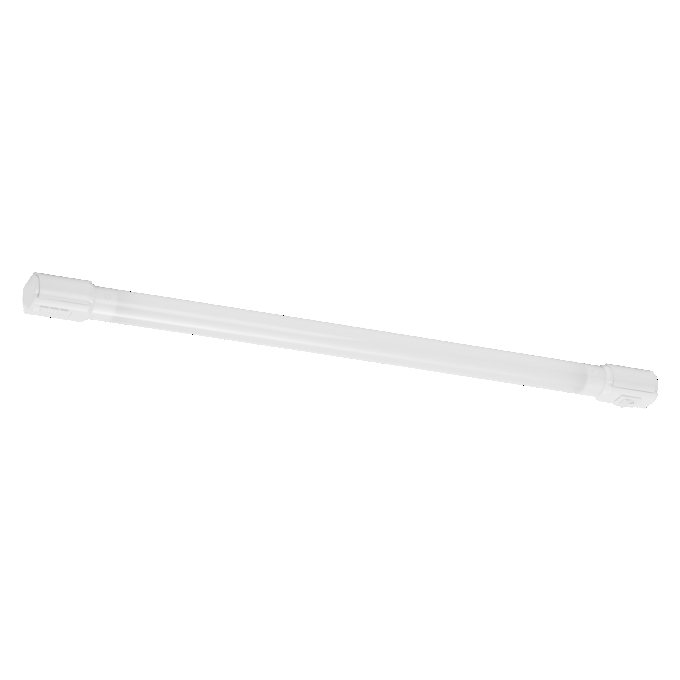

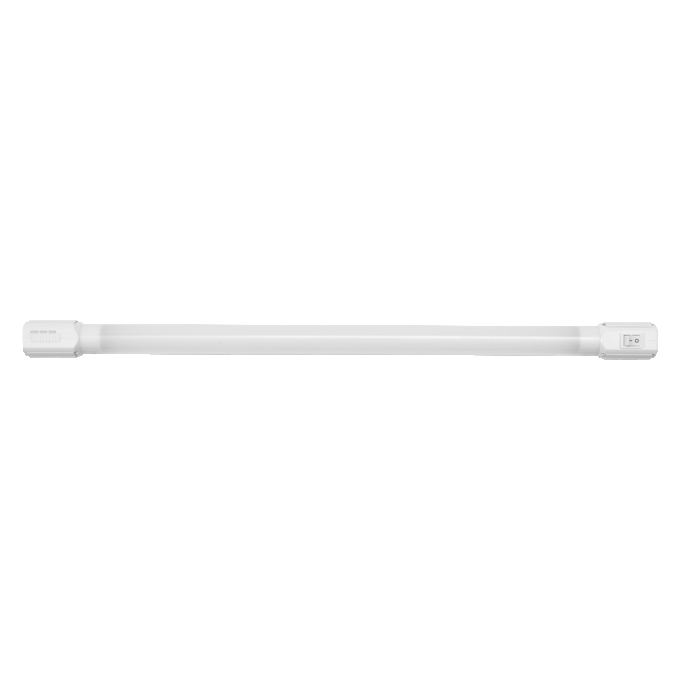

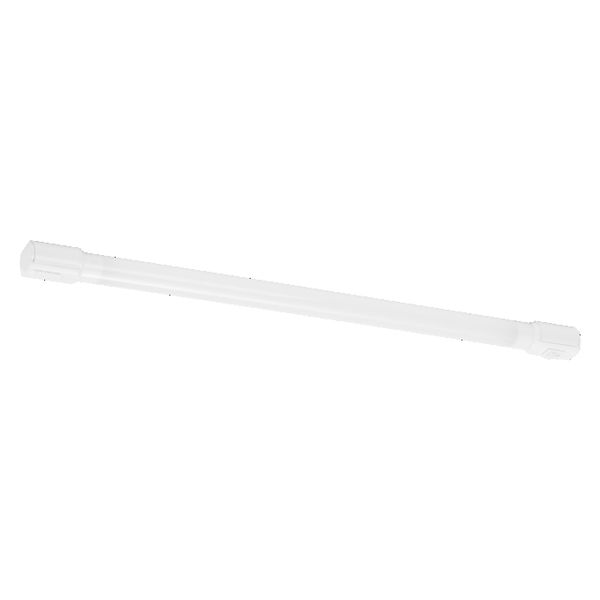

TubeKIT® LED 60 cm 8.9 W CCT
4099854858222
Product benefits
- Highly versatile due to selectable light color directly on the luminaire
- Easy to use and multifunctional LED batten luminaire
- All required accessories included (screws, dowels, brackets, hook)
- Ready for connection due to integrated on/off switch and cable with EU-plug
- Bright, robust and durable
- Energy savings of up to 65 % comp. to luminaires using T8 fluorescent lamps on CCG
- Homogeneous light output
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Shelves, furniture integration or under cabinet mounting
- Direct or indirect lighting (e.g. cove lighting)
Product features
- Mobile LED batten luminaire with color temperature adjustment function
- Durable and energy-saving LED luminaire

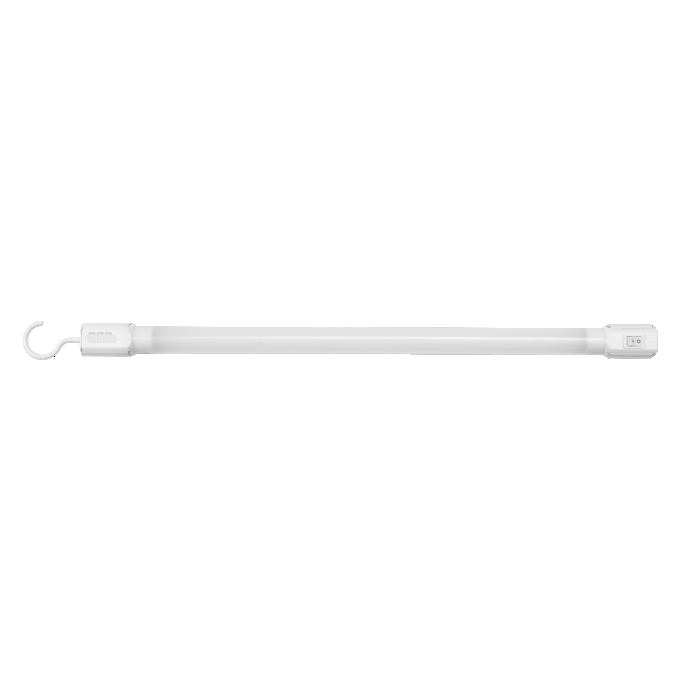

- Clip-In technology for stationary use and hook for mobile use
- Uniform illumination
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854858222
Height
33.50 mm
Housing color
White
Inrush current
2.11 A
Inrush current time Th50
300 µs
Length
600.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
890 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
38
Max. number of luminaires per miniature circuit breaker C10
38
Max. number of luminaires per miniature circuit breaker C16
61
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
42.000 mA
Nominal voltage
220…240 V
Nominal wattage
8.90 W
Number of switching cycles
10000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
200.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
≤0.4
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1000 lm
Type of connection
Plug type C (EU)
Type of emergency operation test
None
Type of protection
IP20
Width
32.00 mm
With light source
Yes
