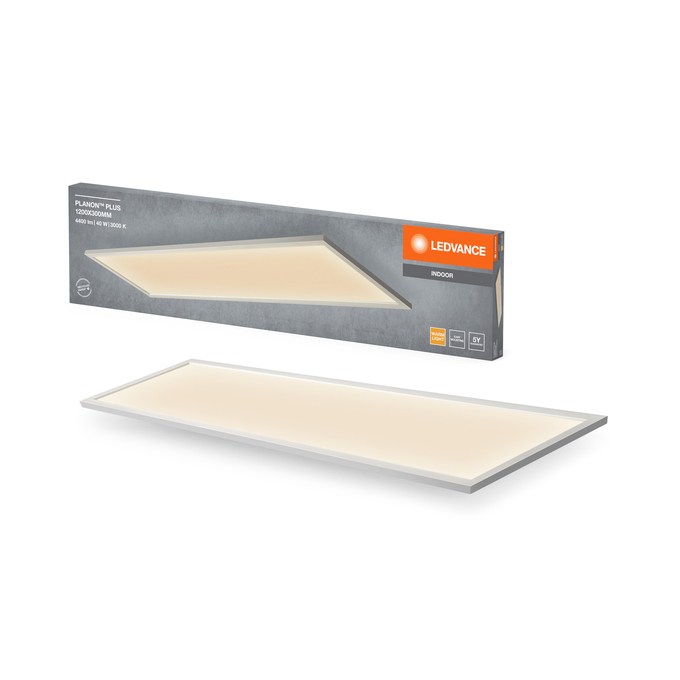

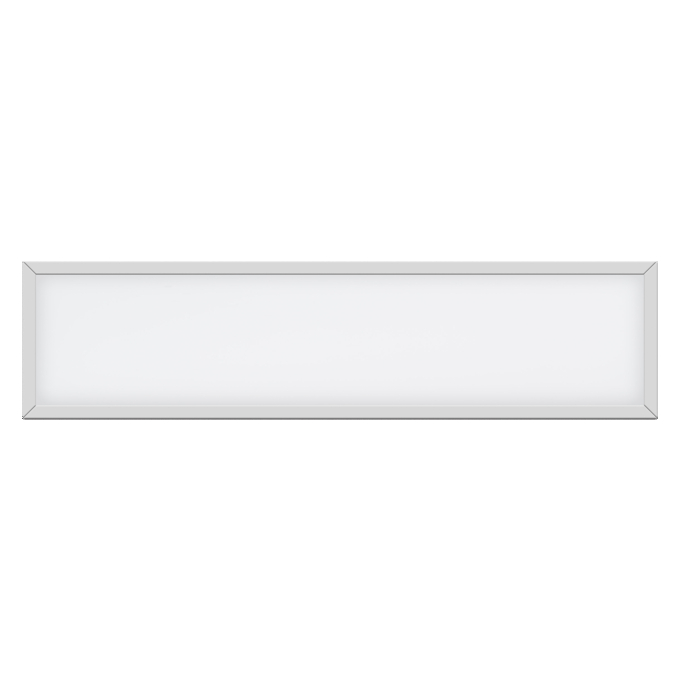

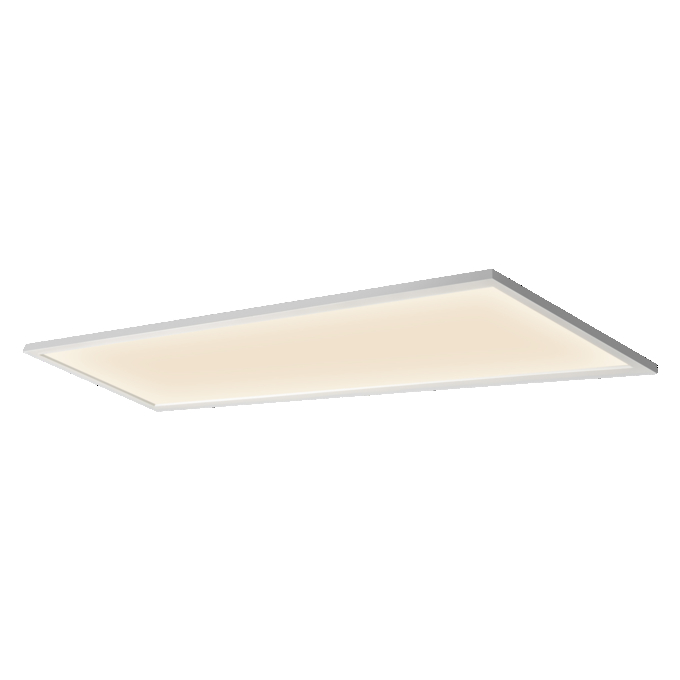

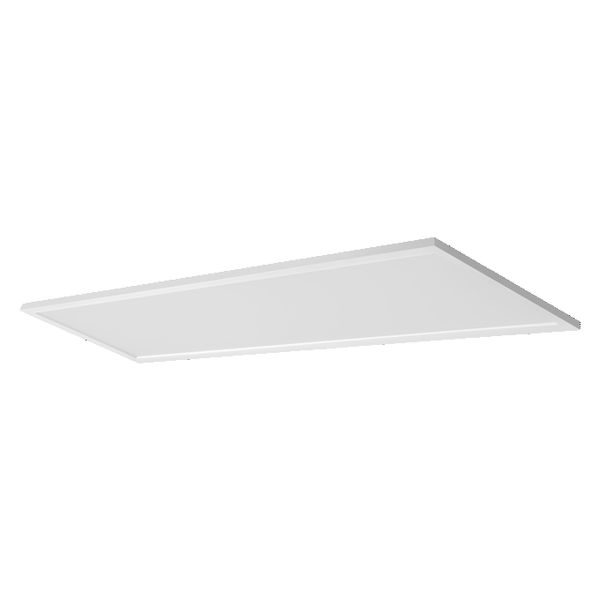

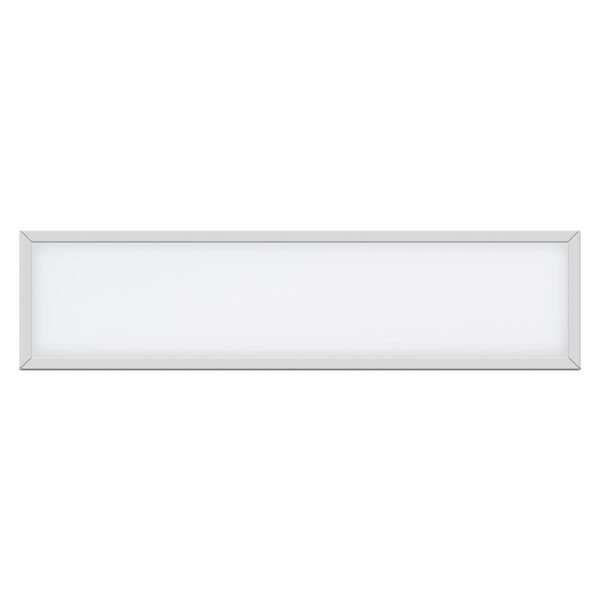

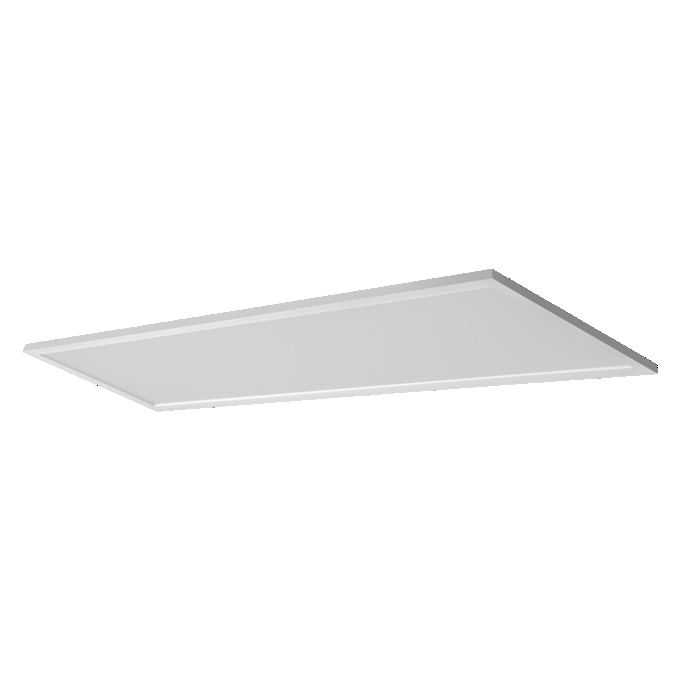

Planon Plus 1200x300mm 40W 830 White
4099854291227
Product benefits
- Very homogenous light
- Quick and simple installation by one person
Areas of application
- For indoor use only
- Decorative domestic lighting
- Ceilings
Product features
- Ceiling luminaire with advanced LED technology
- Available in square and rectangular form
- Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
Equipment / Accessories
- Pre-assembled mounting kit, screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854291227
Height
50.00 mm
Housing color
White
Inrush current
0.2 A
Inrush current time Th50
380 µs
Length
1195.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
78 lm/W
Luminous flux
3100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
36
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
200.000 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2400.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4400 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP20
Width
295.00 mm
With light source
Yes
