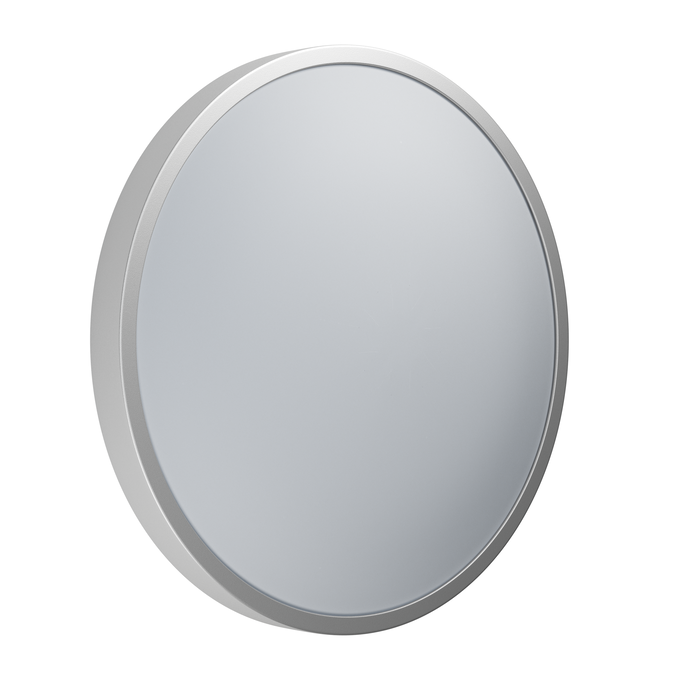

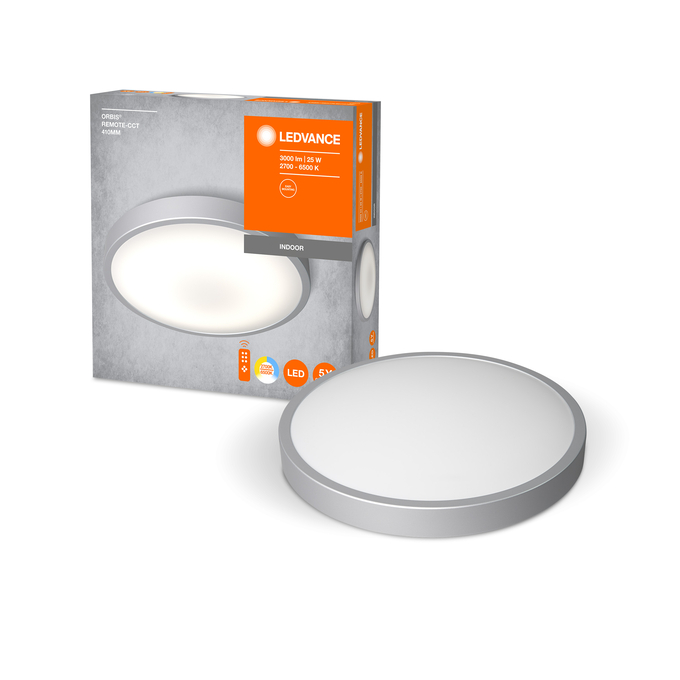

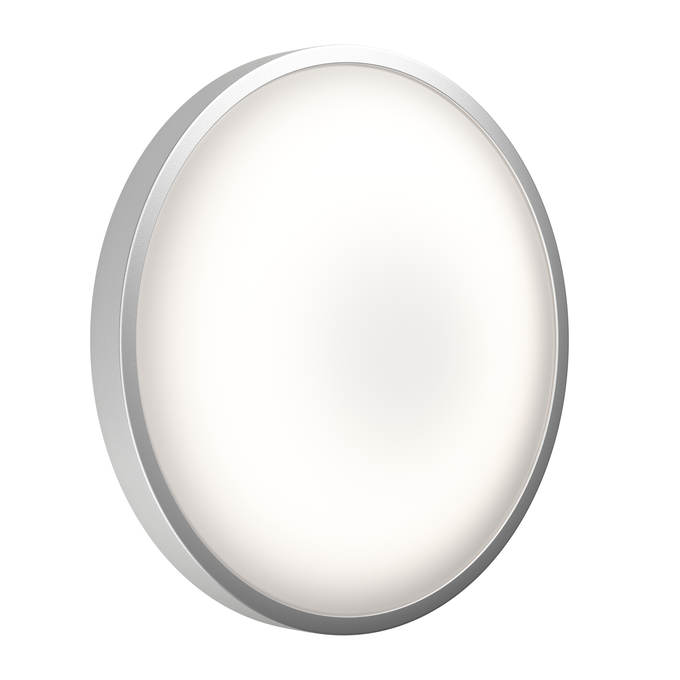

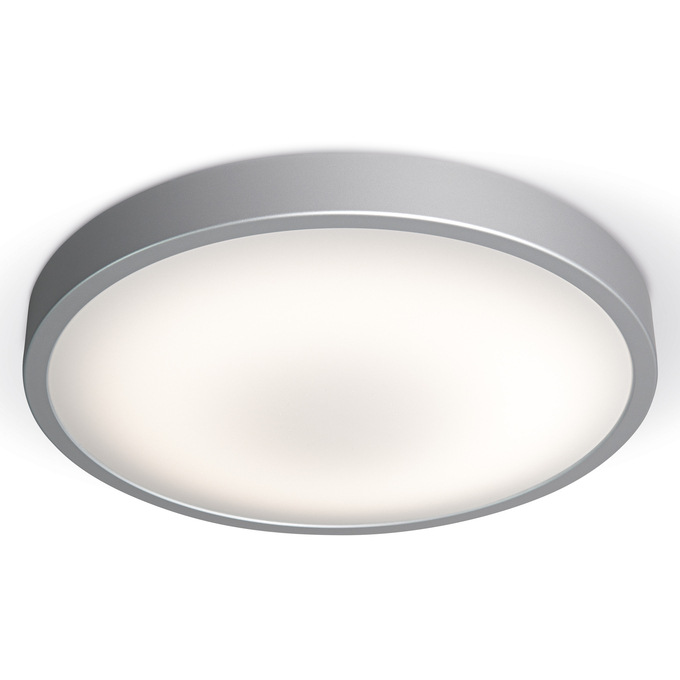

Orbis Remote-CCT 410mm 25W
4058075651777
Product benefits
- Very homogenous light
- Easy and quick installation
Areas of application
- For indoor use only
- Decorative domestic lighting
- Ceiling and wall surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Circular light emission
- Remote-CCT version: color temperature, dimming, timer, memory and night functions via remote control
- Click-CCT version: color temperature adjustable in three steps by repeated switching
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Battery size [GMS]
AAA
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
410 mm
Dimmable
No
GTIN
4058075651777
Height
80.00 mm
Housing color
White
Inrush current
7.76 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
72 lm/W
Luminous flux
1800 lm
Luminous flux in emergency operation mode
-
Luminous flux in maintained operation mode
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
49
Max. number of luminaires per miniature circuit breaker C10
41
Max. number of luminaires per miniature circuit breaker C16
66
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal capacity of battery
1400 mAh
Nominal current
171 mA
Nominal voltage
220…240 V
Nominal voltage of battery
1.5 V
Nominal wattage
25.00 W
Number of switching cycles
12500
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
870.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total luminous flux of contained light sources
3000 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency light operation
Non-maintained
Type of protection
IP20
With light source
Yes
