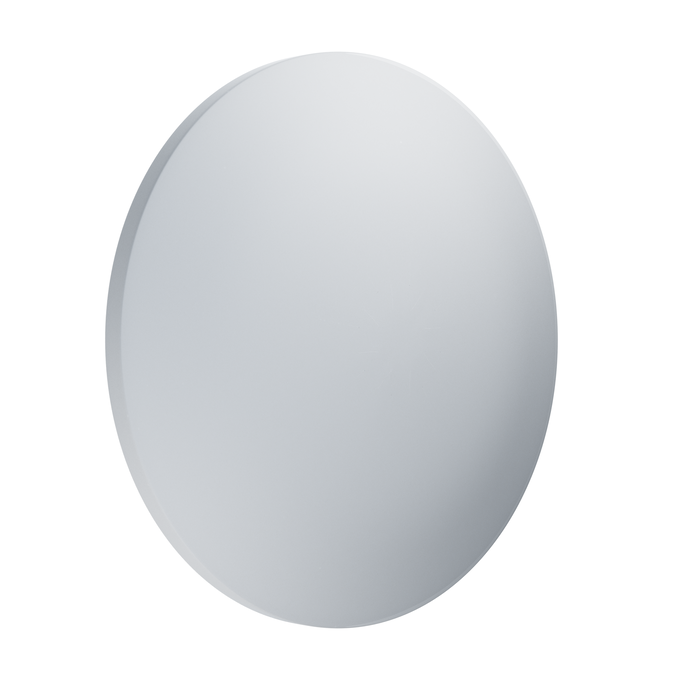

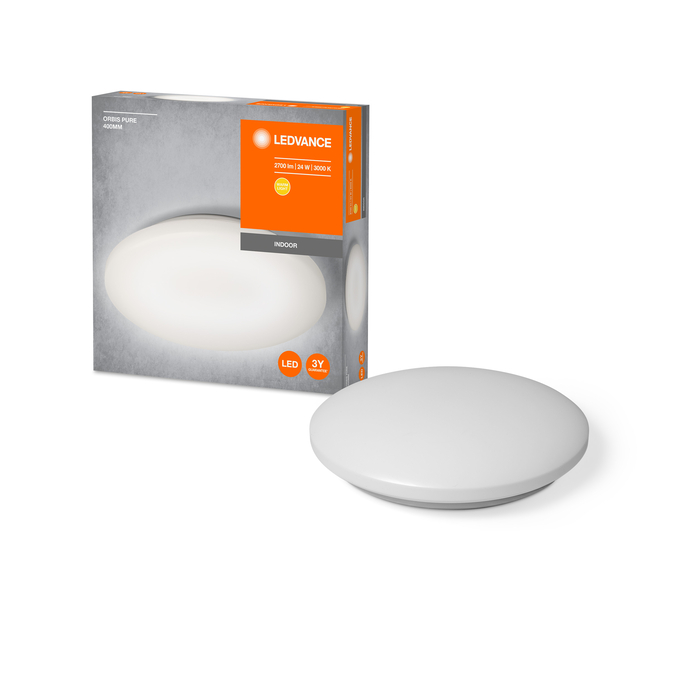

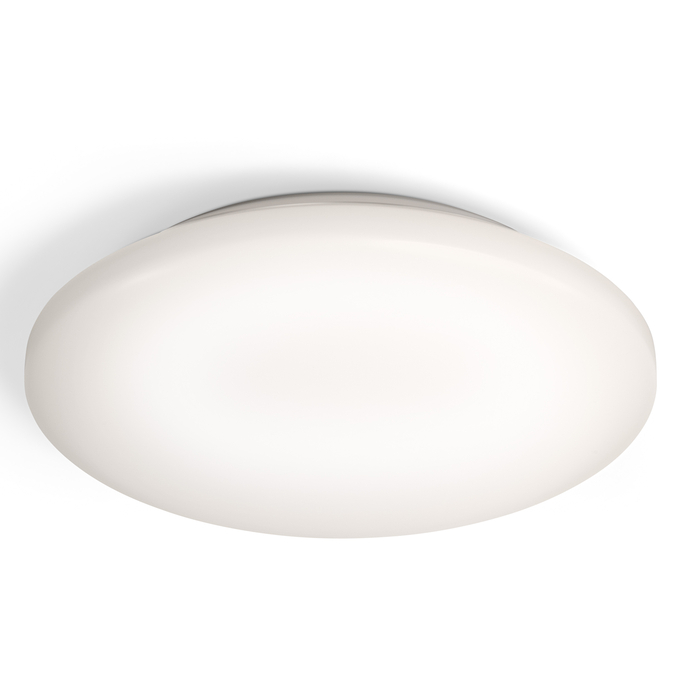

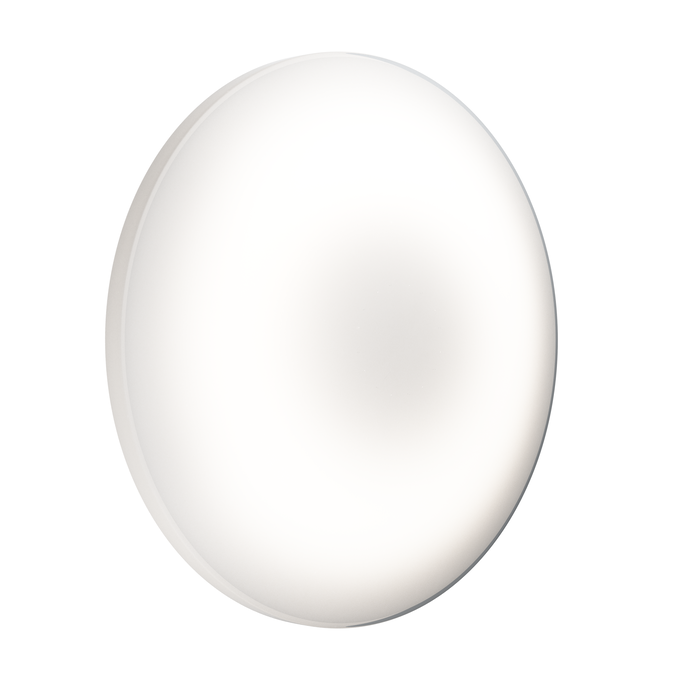

Orbis Pure 400mm 24W
4058075651913
Product benefits
- Very homogenous light
- Easy and quick installation
Areas of application
- For indoor use only
- Decorative domestic lighting
- Ceiling and wall surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Circular light emission
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
400 mm
Dimmable
No
GTIN
4058075651913
Height
80.00 mm
Housing color
White
Inrush current
7.9 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
1800 lm
Luminous flux in emergency operation mode
-
Luminous flux in maintained operation mode
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
175 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
15000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
610.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total luminous flux of contained light sources
2700 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency light operation
Non-maintained
Type of protection
IP20
With light source
Yes
