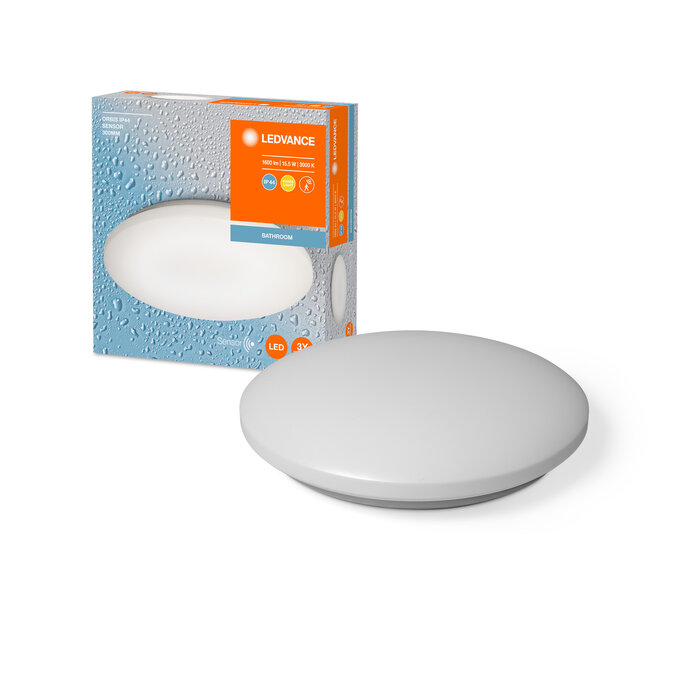

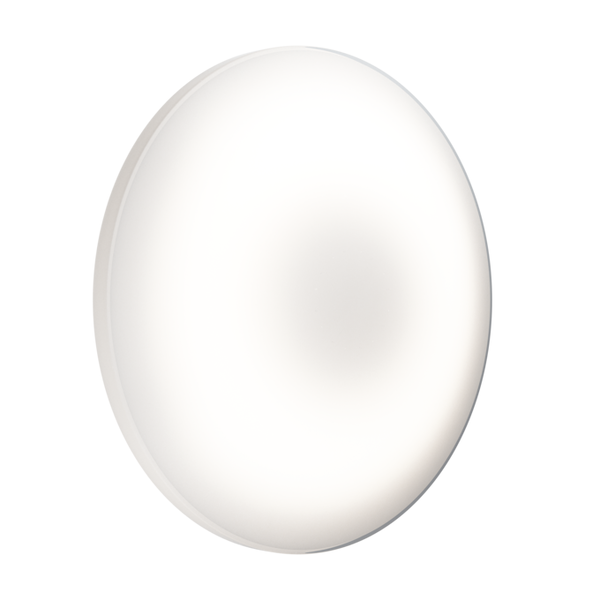

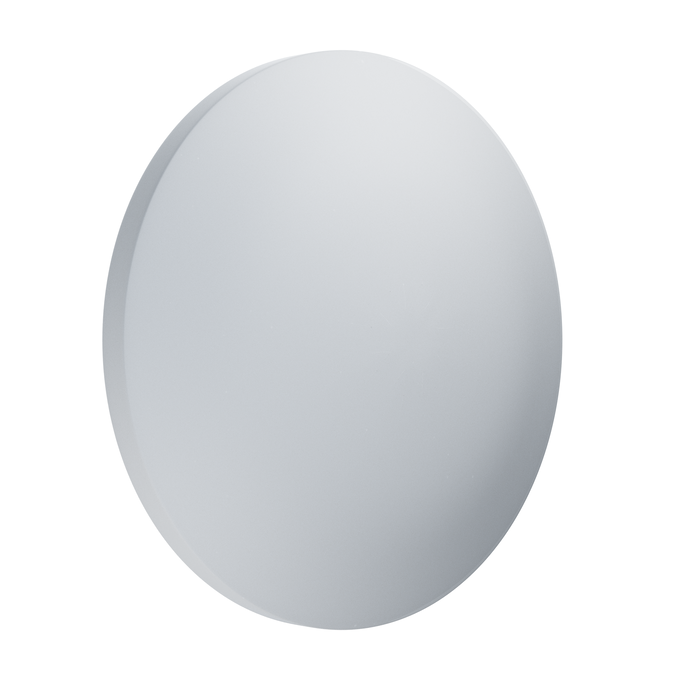

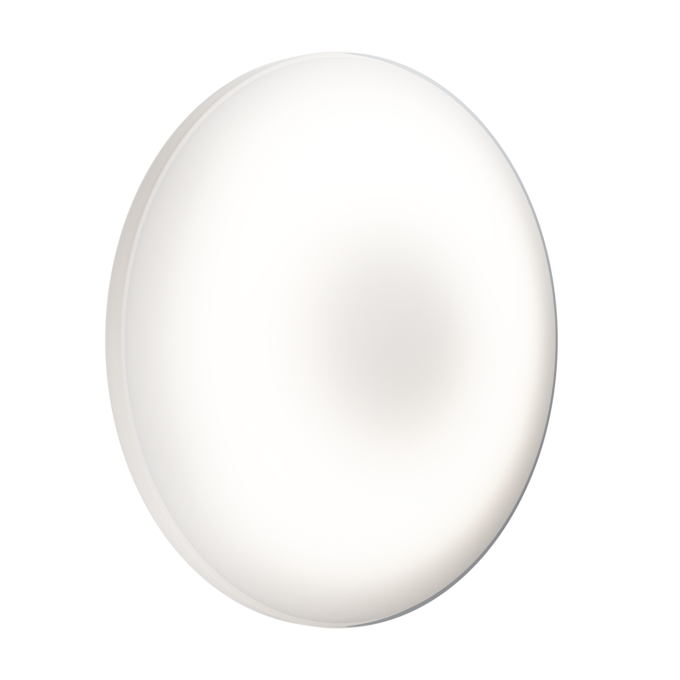

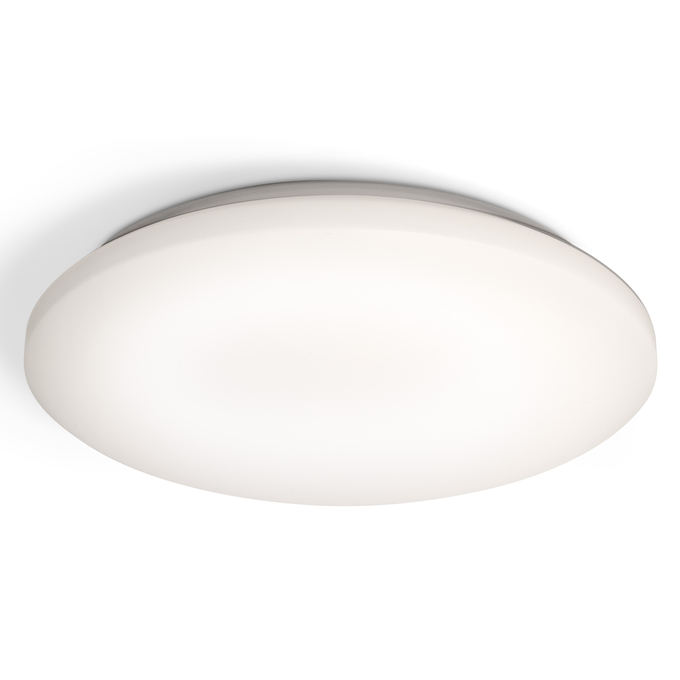

Orbis IP44 Sensor 300mm 15.5W
4058075651814
Product benefits
- Very homogenous light
- Easy and quick installation
Areas of application
- Entrances / Hallways
- Bathrooms
- Ceiling and wall surface mounting
- Outdoor use (roofed areas) in residential sector
Product features
- Ceiling luminaire with advanced LED technology
- Circular light emission
- Type of protection: IP44
- Versions with movement and daylight sensor available (microwave sensor)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
14 m
Detection threshold of daylight sensor
2
Diameter
300 mm
Dimmable
No
Flickering metric (Pst LM)
< 1.0
GTIN
4058075651814
Height
83.00 mm
Housing color
White
Inrush current
7.24 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
80 lm/W
Luminous flux
1100 lm
Luminous flux in emergency operation mode
-
Luminous flux in maintained operation mode
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
39
Max. number of luminaires per miniature circuit breaker C16
39
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
120 mA
Nominal voltage
220…240 V
Nominal wattage
15.50 W
Number of switching cycles
12500
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
440.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Sensor detection angle
120 °
Sensor technology
Microwave
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 150 %
Total luminous flux of contained light sources
1600 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency light operation
Non-maintained
Type of protection
IP44
Type of sensor
Lig
UGR
22
With light source
Yes
