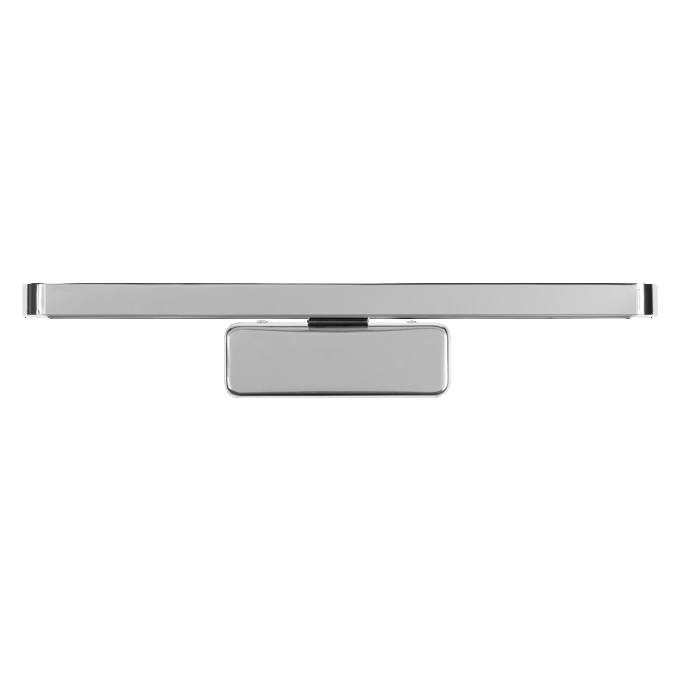

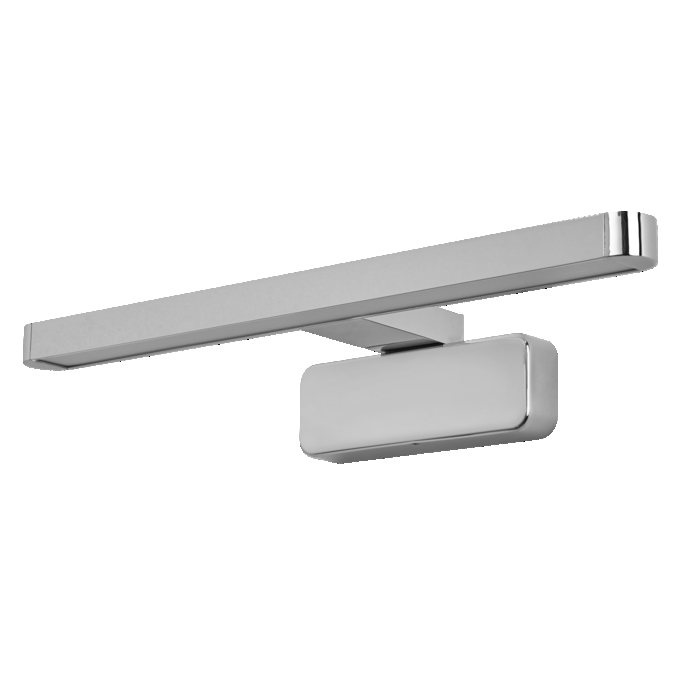

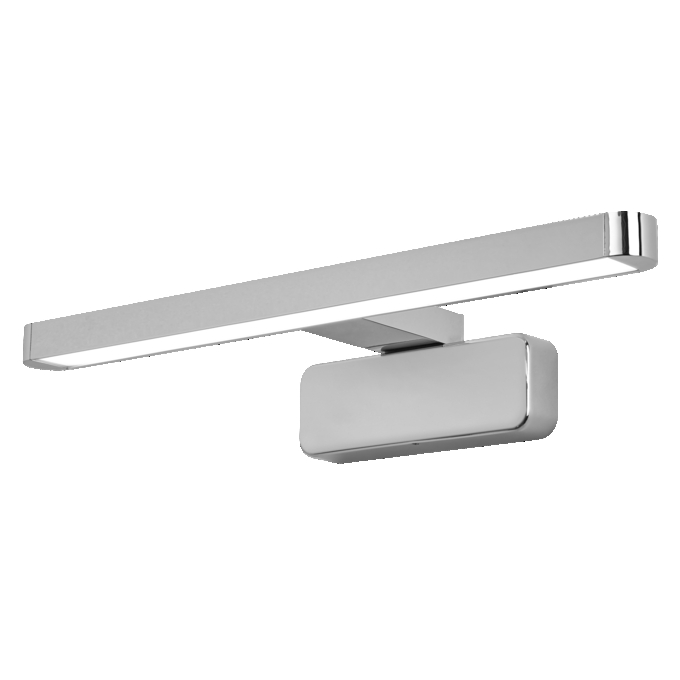

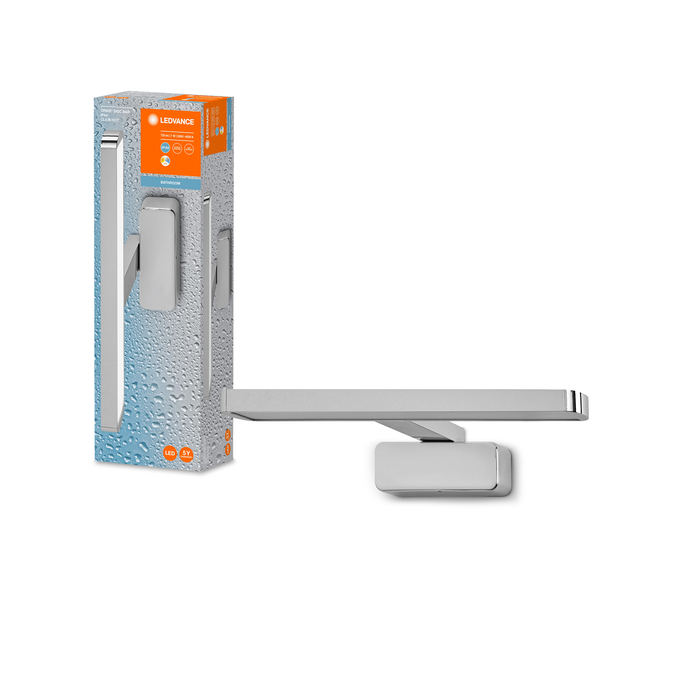

ORBIS Disc Bar Bathroom Mirror 400mm Chrome Click-CCT IP44
4099854096099
Product benefits
- Mirror and wall application
- Can be placed in a wet room (zone 2 and 3)
- The light color can be selected between two color temperatures
Areas of application
- Indoor applications
- Bathrooms (IP44)
Product features
- Type of protection: IP44
- Color temperature selectable via wall switch (3000 K, 4000 K)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
3000 … 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polyacrylate (PAK)
Dimmable
No
Flickering metric (Pst LM)
≤1.0
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854096099
Height
70.00 mm
Housing color
Chrome
Inrush current
3.24 A
Inrush current time Th50
107 µs
Length
400.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1),Dodecamethylcyclohexasiloxane (D6) -540-97-6, Decamethylcyclopentasiloxane (D5) - 541-02-6
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
54 lm/W
Luminous flux
380 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
206
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
46.000 mA
Nominal voltage
220…240 V
Nominal wattage
7.00 W
Number of illuminants
empty
Number of switching cycles
30000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Chrome
Product recyclability
Mostly recyclable product 1)
Product weight
350.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
720 lm
Type of connection
Screw terminal
Type of protection
IP44
Width
120.00 mm
With light source
Yes
