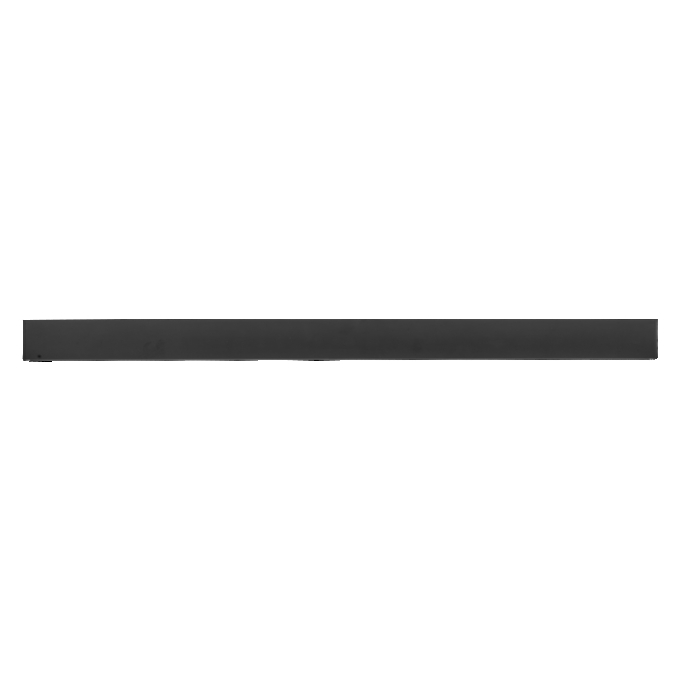

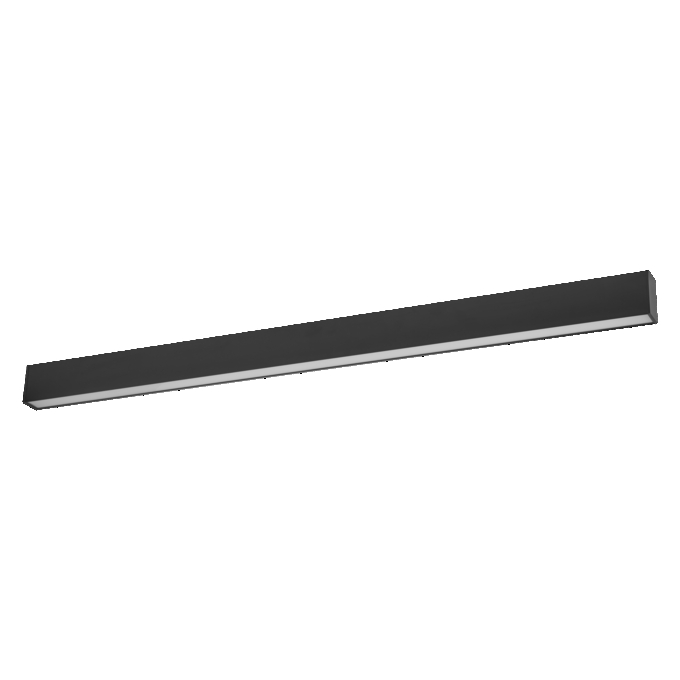

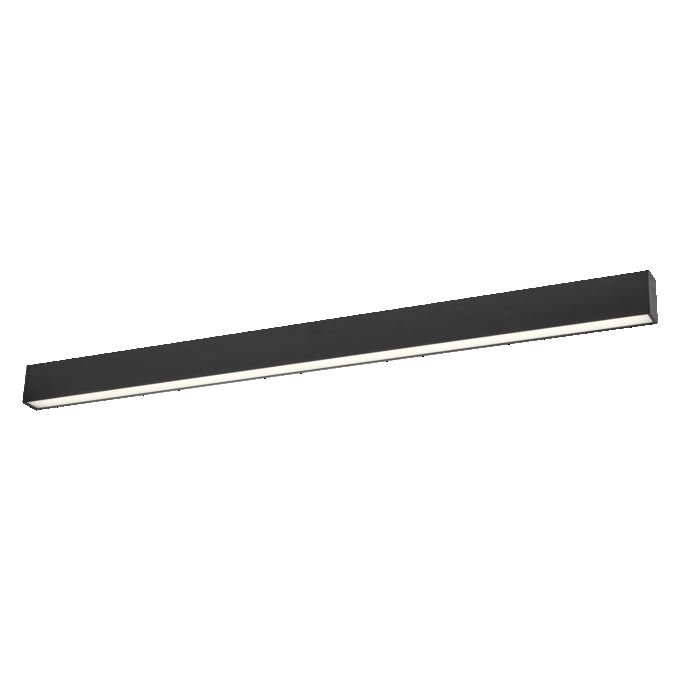

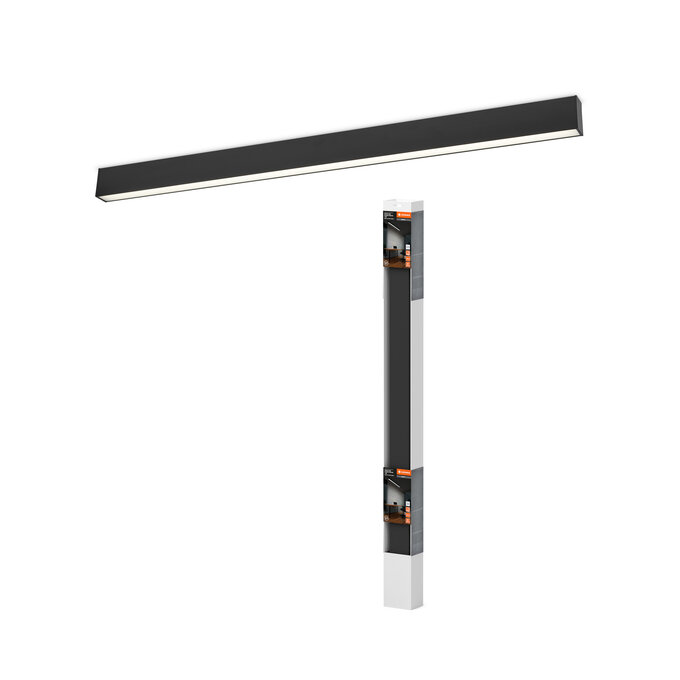

Office Line Cuboid Ceiling 30W 840 DIM Black
4058075842304
Product benefits
- Linear luminaire in timeless design
- 3 step dimming via switch on top of the luminaire
- High quality metal housing
Areas of application
- Office lighting
- Indoor applications
- Home offices
- General indoor illumination
- Kitchens, workspaces
Product features
- Lifetime up to 100,000 h
- Color temperature: 4,000 K
- Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Beam angle
105 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
Flickering metric (Pst LM)
GTIN
4058075842304
Height
70.00 mm
Housing color
Black
Inrush current
19.9 A
Inrush current time Th50
153.8 µs
Length
1126.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 1,3,5-Triazine-2,4,6-triamine (108-78-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
3100 lm
Luminous intensity
1250 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
25
Max. number of luminaires per miniature circuit breaker C16
40
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
136.000 mA
Nominal voltage
220…240 V
Nominal wattage
30.00 W
Number of switching cycles
50000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1270.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4200 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
3 DIM
Type of protection
IP20
Width
41.00 mm
With light source
Yes
