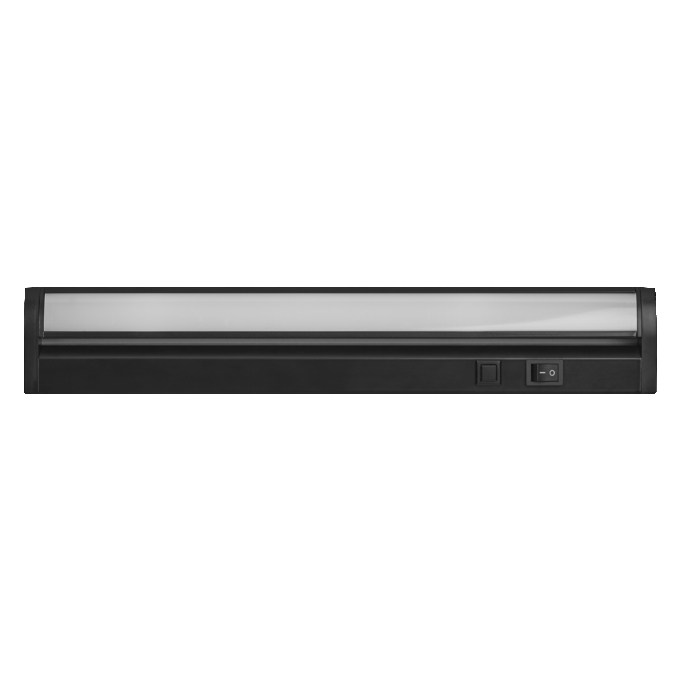

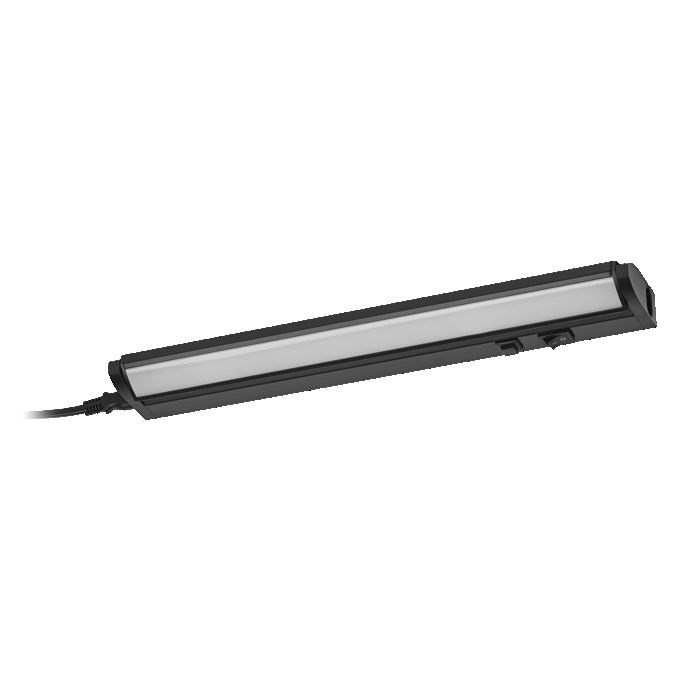

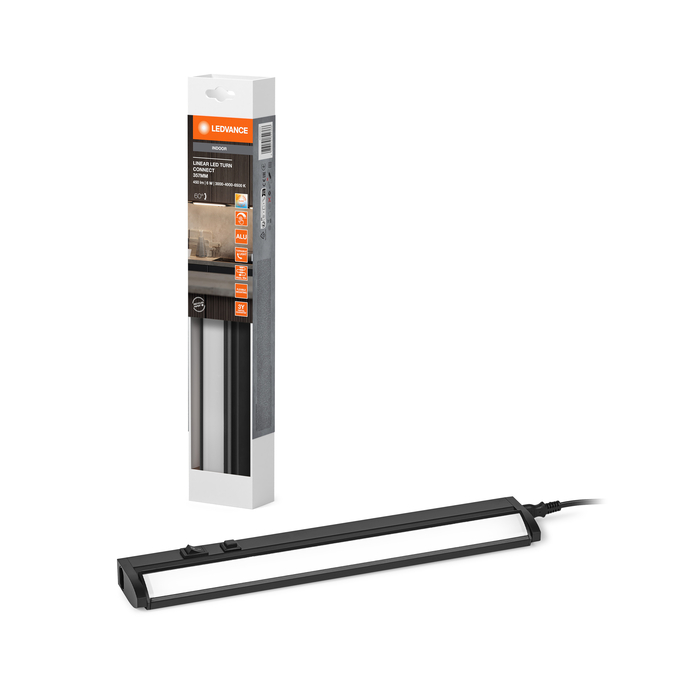

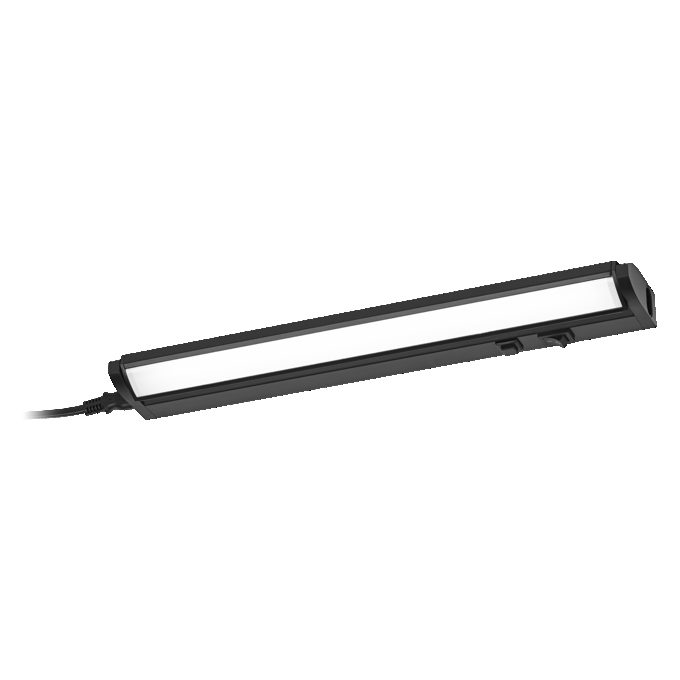

Linear Turn Connect 35cm CCT DIM Black
4058075842366
Product benefits
- Easy and quick series connection thanks to simple plug system
- Connection of up to 10 luminaires (35cm version) and 5 luminaires (55cm version) in a row either via enclosed connector for seamless connection or by connector cable for greater distances
- Highly versatile due to selectable CCT
- Homogenous light distribution
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Tilt function (60°) for individual adjustment of the lighting surface
- Color temperature adjustable in three steps by pressing the button
- Stepless dimming by pressing and holding the button more than 1 second
- 2 different lengths available
- Lifetime up to 30,000 h
- Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
> 80
Color temperature
3000…4000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075842366
Height
24.00 mm
Housing color
Black
Inrush current
6 A
Inrush current time Th50
45 µs
Length
357.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
63 lm/W
Luminous flux
380 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
125
Max. number of luminaires per miniature circuit breaker C10
100
Max. number of luminaires per miniature circuit breaker C16
160
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
49.000 mA
Nominal voltage
220…240 V
Nominal wattage
6.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
365.00 g
Protection class
II
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
130 %
Total luminous flux of contained light sources
450 lm
Type of connection
Plug type C (EU)
Type of dimming
Push-DIM
Type of protection
IP20
Width
60.00 mm
With light source
Yes
