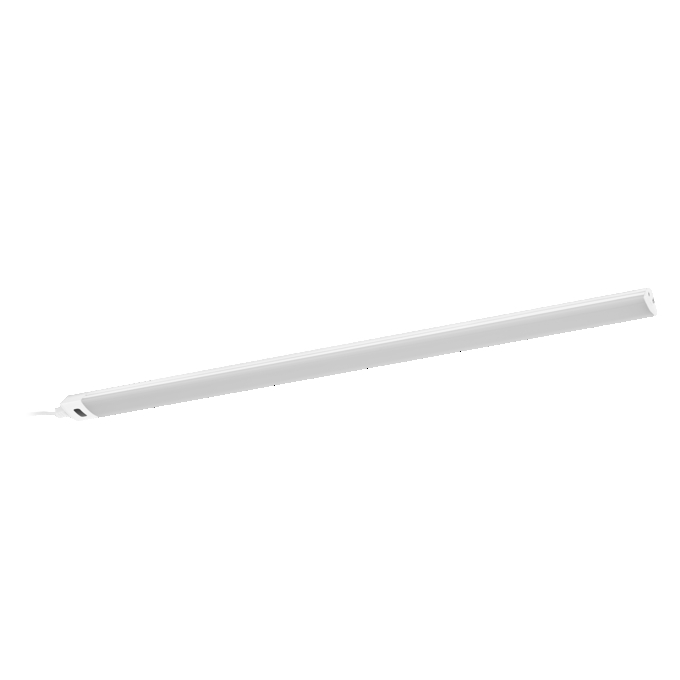

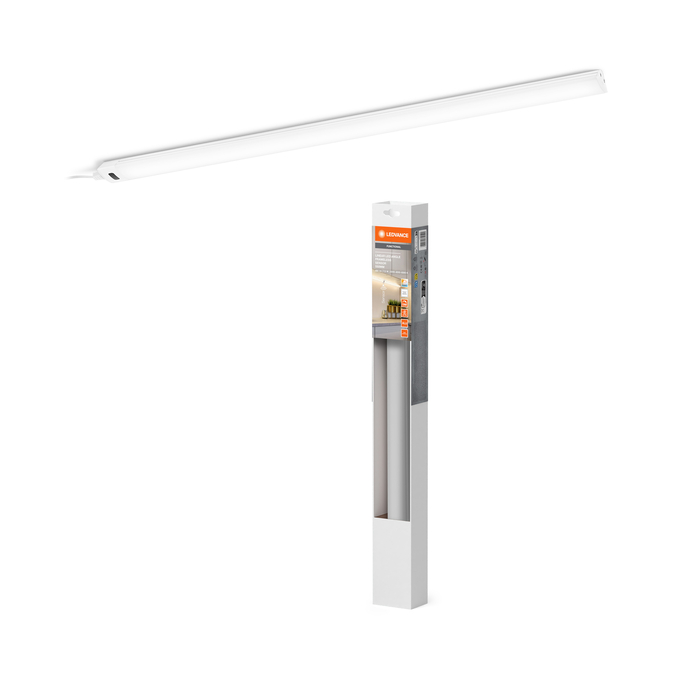

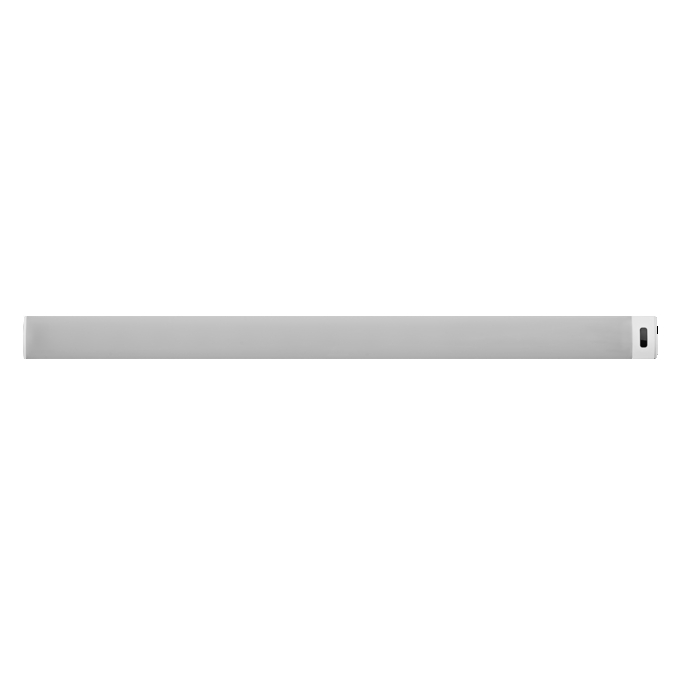

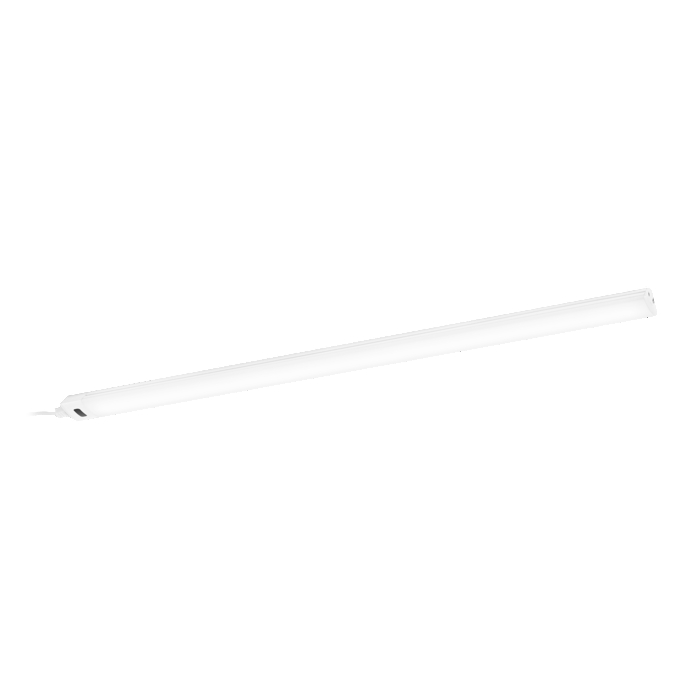

Linear Angle Flood Sensor 55cm CCT DIM White
4058075842502
Product benefits
- Suitable for mounting in corners
- Easy and quick series connection thanks to simple plug system
- Seamless connection of up to 3 luminaires in a row via enclosed connector
- Homogenous light distribution
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 6 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor in max. 6 cm distance for at least one second
- 2 different lengths available
- Lifetime up to 30,000 h
- Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Aluminum
Cable length
1500 mm
Color rendering index Ra
> 80
Color temperature
3000…4000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
60 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075842502
Height
18.00 mm
Housing color
White
Inrush current
8.8 A
Inrush current time Th50
120 µs
Length
550.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
64 lm/W
Luminous flux
480 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
76
Max. number of luminaires per miniature circuit breaker C10
56
Max. number of luminaires per miniature circuit breaker C16
90
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
51.000 mA
Nominal voltage
220…240 V
Nominal wattage
7.50 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
249.00 g
Protection class
III
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
130 %
Total luminous flux of contained light sources
490 lm
Type of connection
Plug type C (EU)
Type of dimming
PIR STEP
Type of protection
IP20
Type of sensor
Infrared sensor
Width
36.00 mm
With light source
Yes
