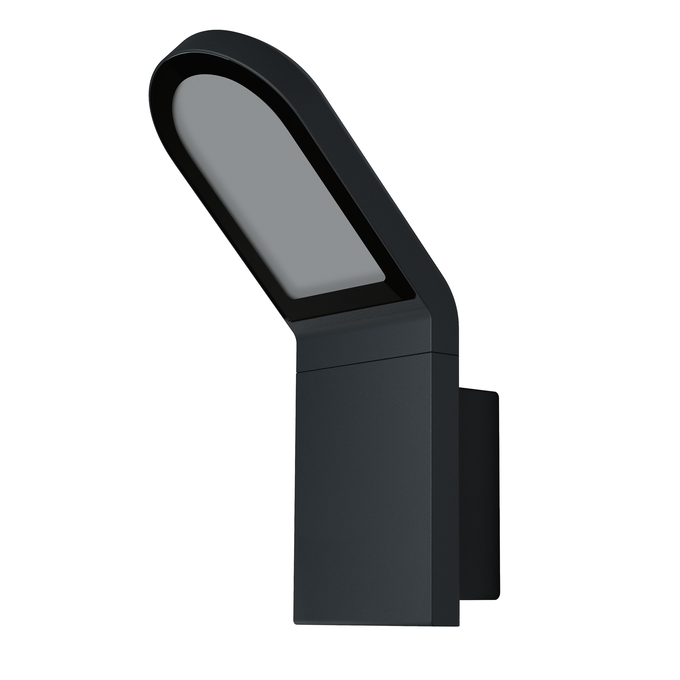

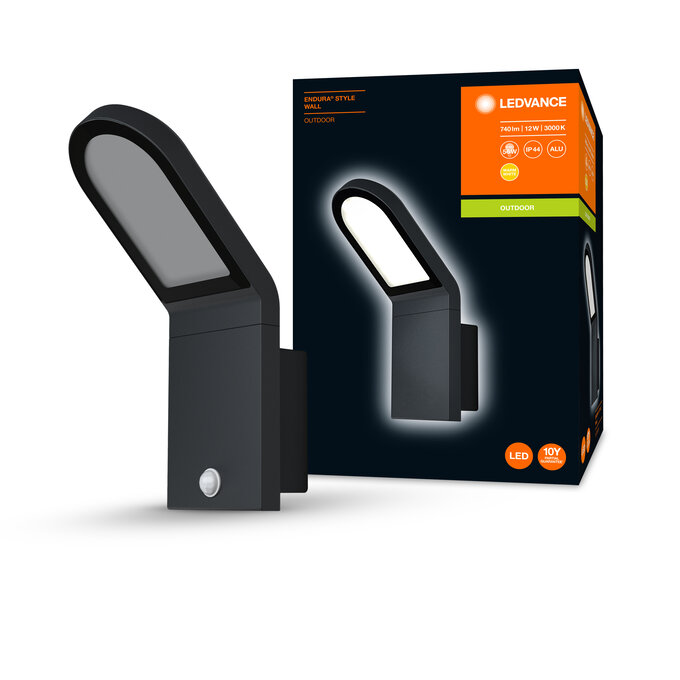

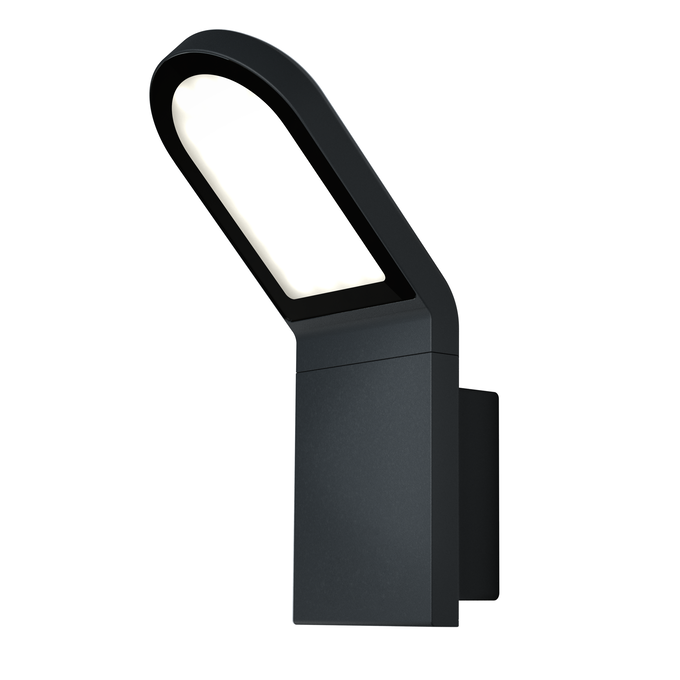

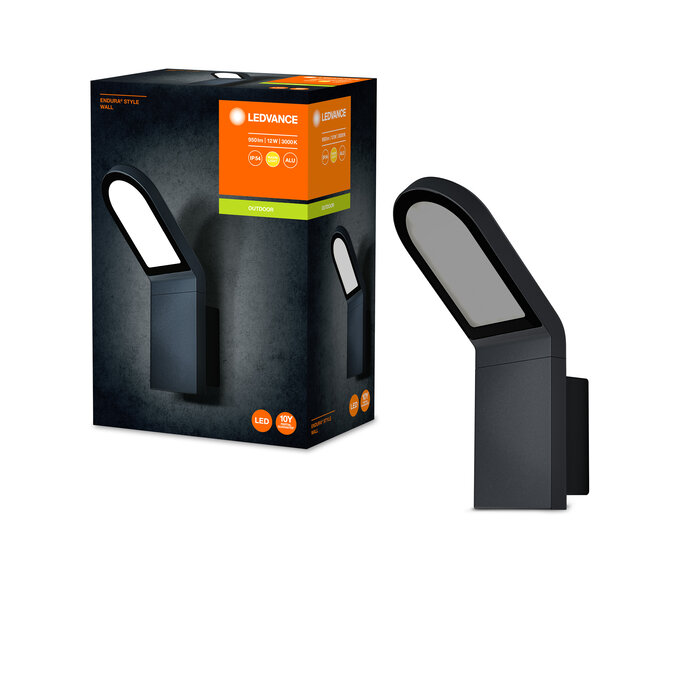

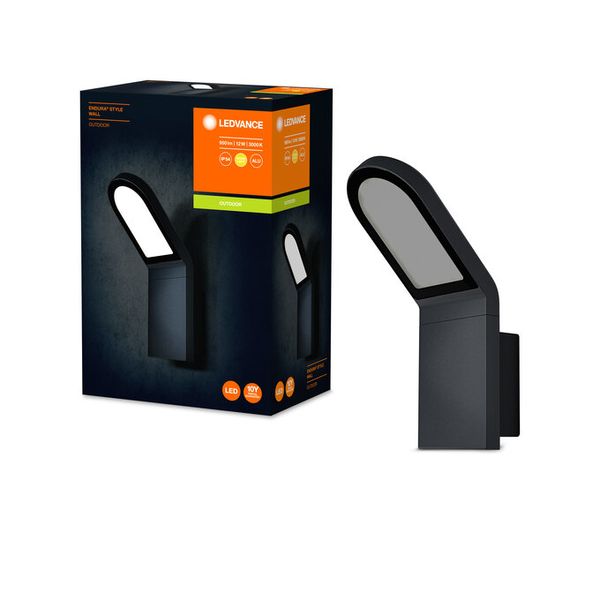

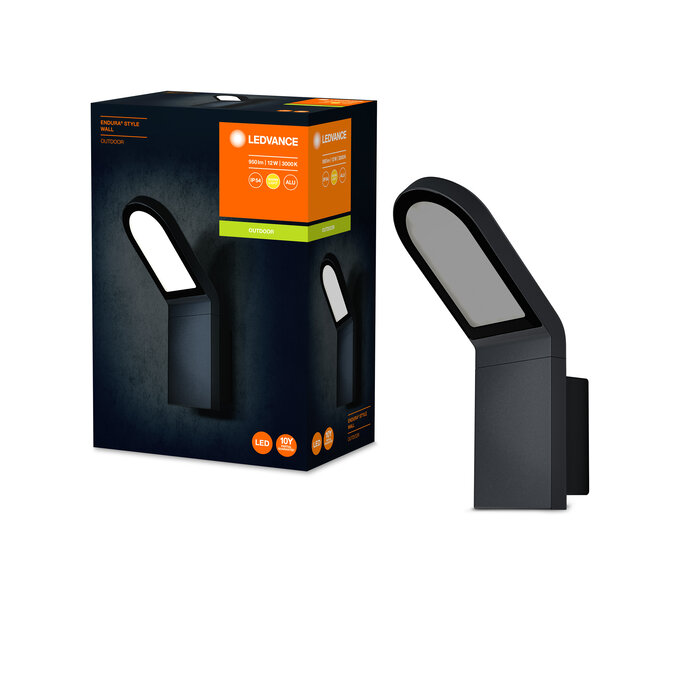

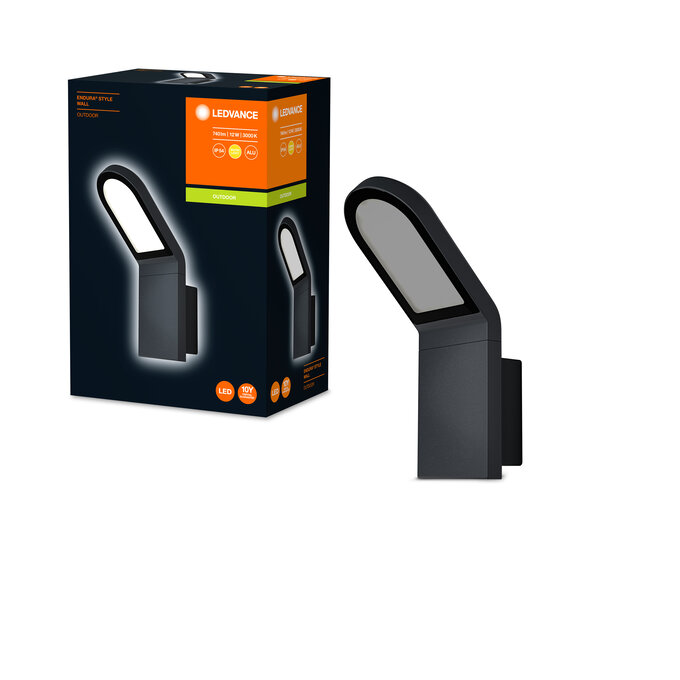

ENDURA Style Wall IP54 12W Dark Gray
4058075214132
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Entrance lighting
- Building facades
Product features
- Very bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available in two housing colors
- Available with and without motion sensor
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
107 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Glass
Dimmable
No
Flickering metric (Pst LM)
-
GTIN
4058075214132
Height
273.00 mm
Housing color
Dark grey
Length
168.00 mm
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
61 lm/W
Luminous flux
740 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
60.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.5
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
1200.00 g
Protection class
I
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-20…+85 °C
Total luminous flux of contained light sources
950 lm
Type of connection
Screw terminal
Type of protection
IP44
Width
100.00 mm
With light source
Yes
