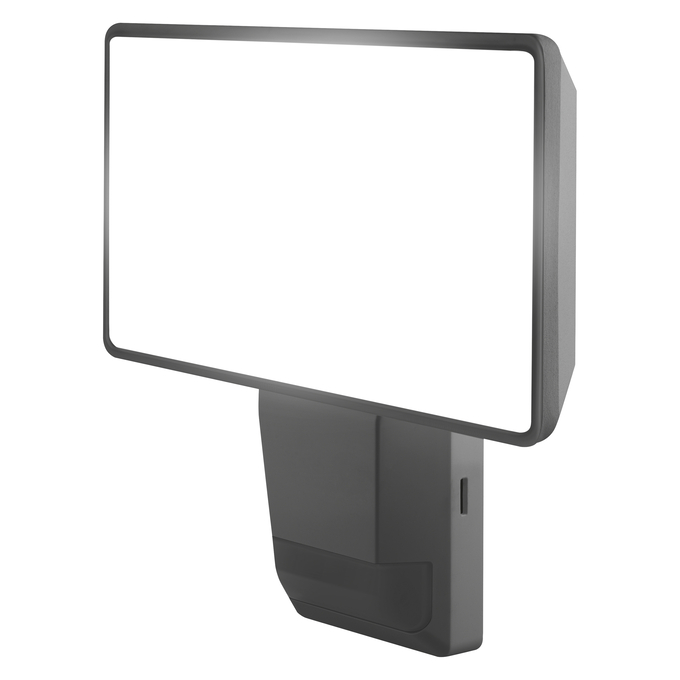

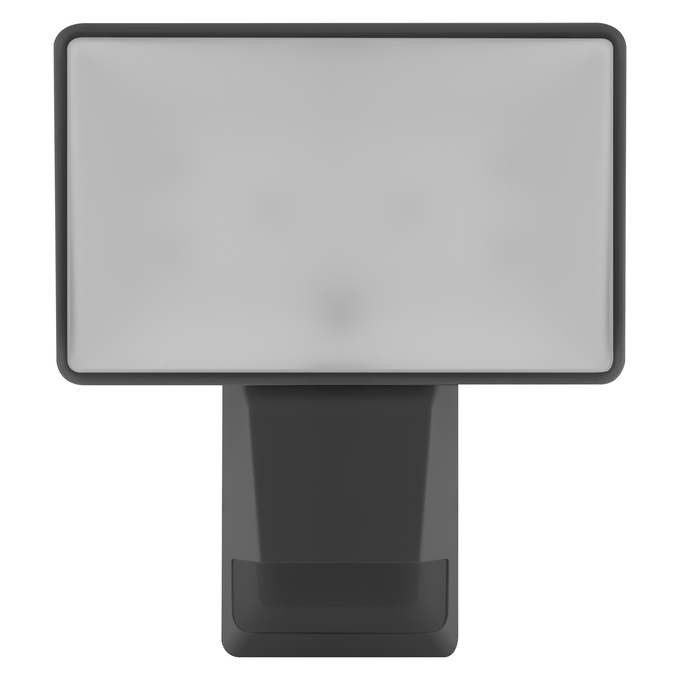

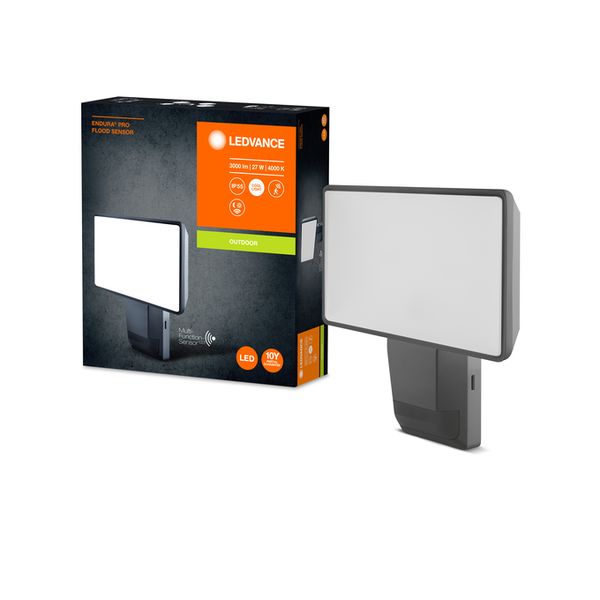

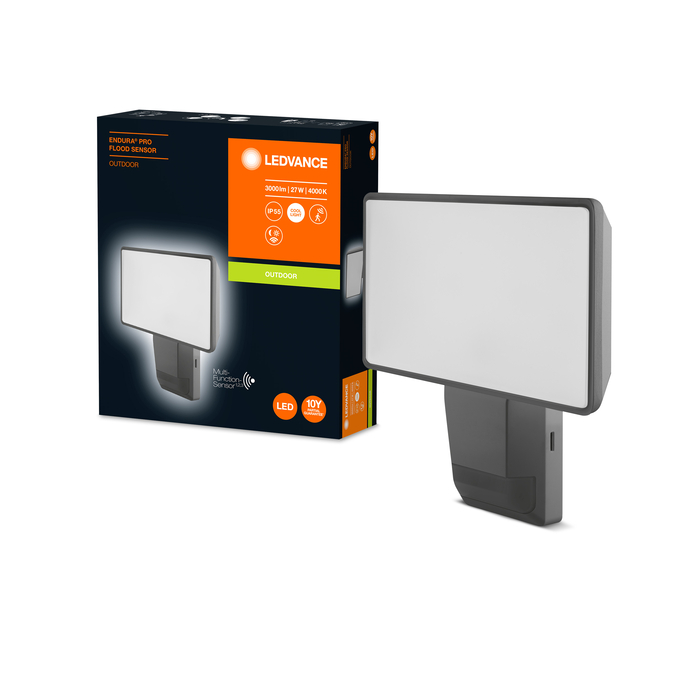

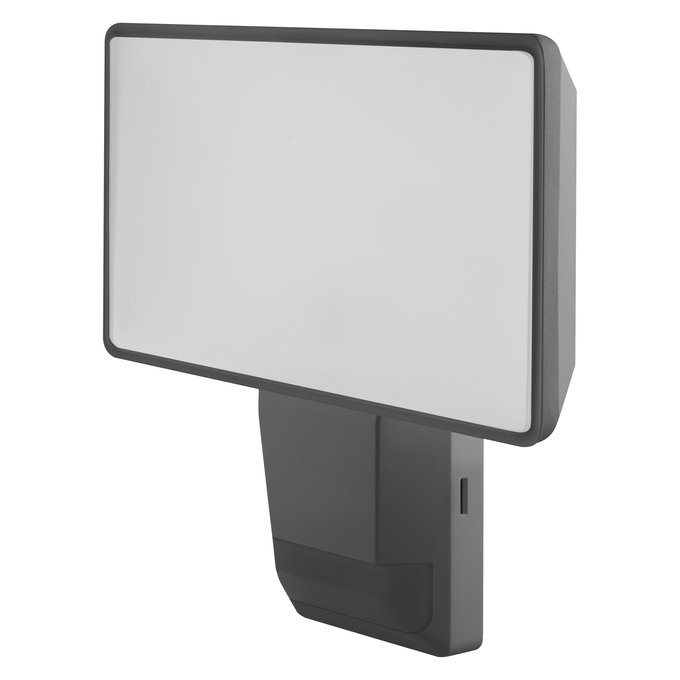

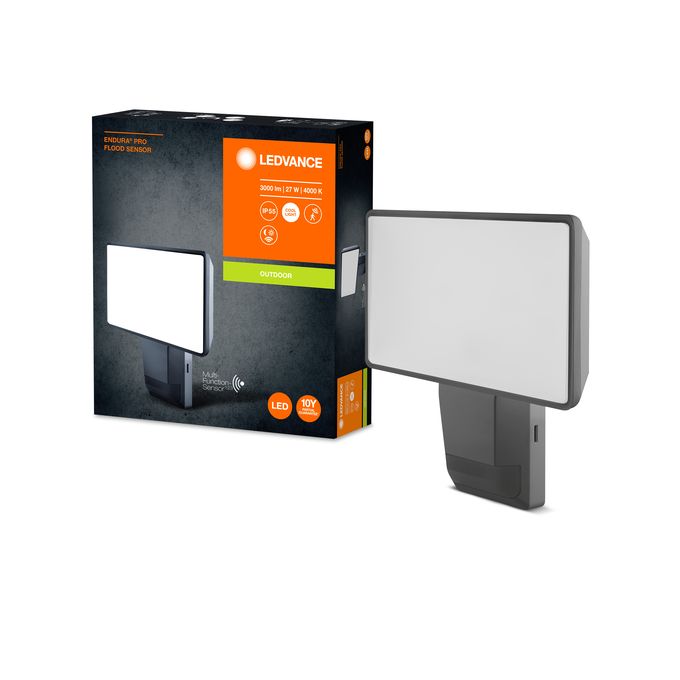

ENDURA PRO Flood Sensor 27W 4000K IP55 Dark Gray
4058075228849
Product benefits
- Homogenous illumination
- Lighting according to requirements due to adjustable luminaire head
- Easy and quick installation
Areas of application
- Outdoor
- Parking lots, city squares, parks
- Arcade passage
Product features
- 4 operating modes selectable (light 6h continous on, standby, switch-on by movement or dusk)
- Adjustable luminaire head
- Type of protection: IP55
- Impact resistance: IK05
- Protection class: II
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Beam angle
100 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Detection range of motion sensor
12 m
Detection threshold of daylight sensor
1…1000 lx
Dimmable
No
Flickering metric (Pst LM)
GTIN
4058075228849
Height
225.00 mm
Housing color
Dark grey
Inrush current
5 A
Inrush current time Th50
50 µs
Length
201.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
3000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
91
Max. number of luminaires per miniature circuit breaker C10
57
Max. number of luminaires per miniature circuit breaker C16
91
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
140.000 mA
Nominal voltage
220…240 V
Nominal wattage
27.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Output current
400…480 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
II
Protection class IK (shock resistance)
IK05
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Sensor controlled switching time
2 s…15 min
Sensor detection angle
180 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-25…+70 °C
Total luminous flux of contained light sources
3800 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP55
Type of sensor
Lig
Width
56.00 mm
With light source
Yes
