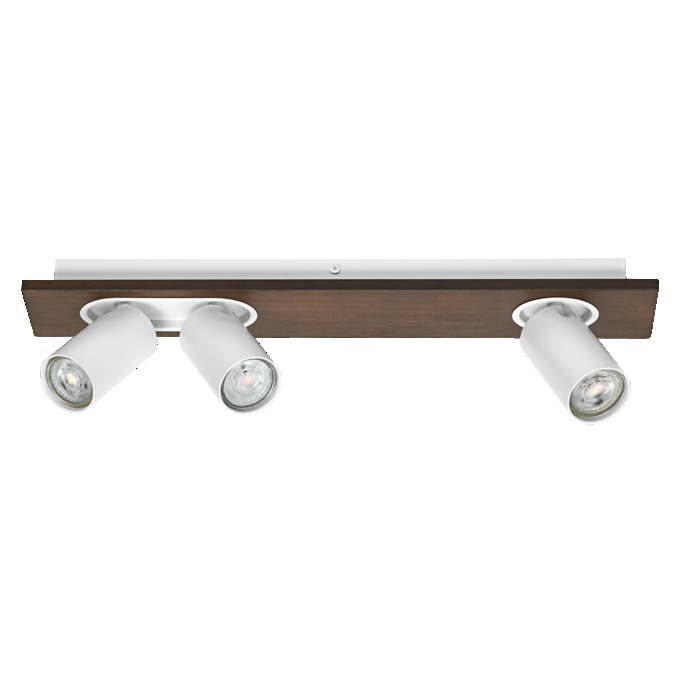

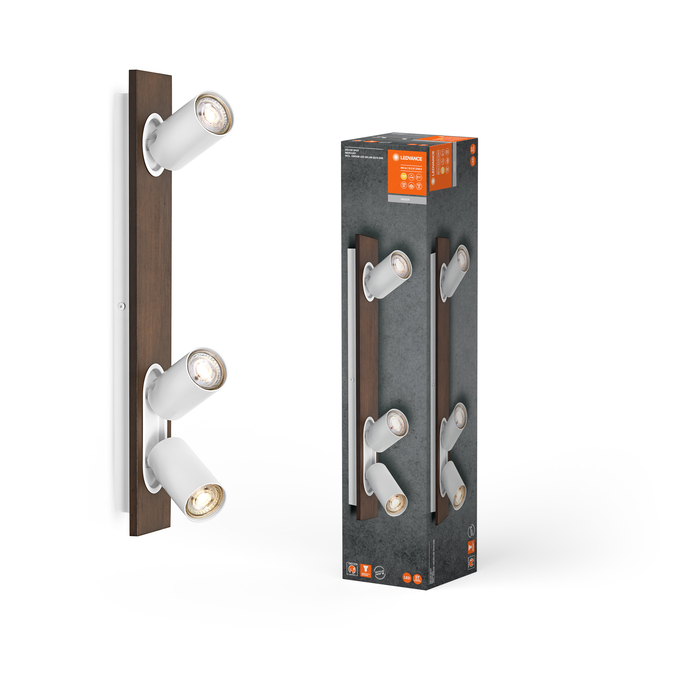

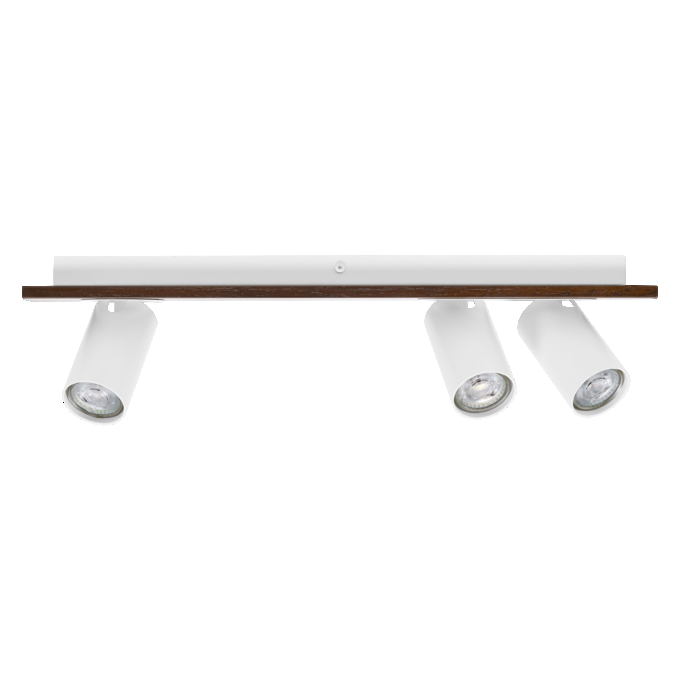

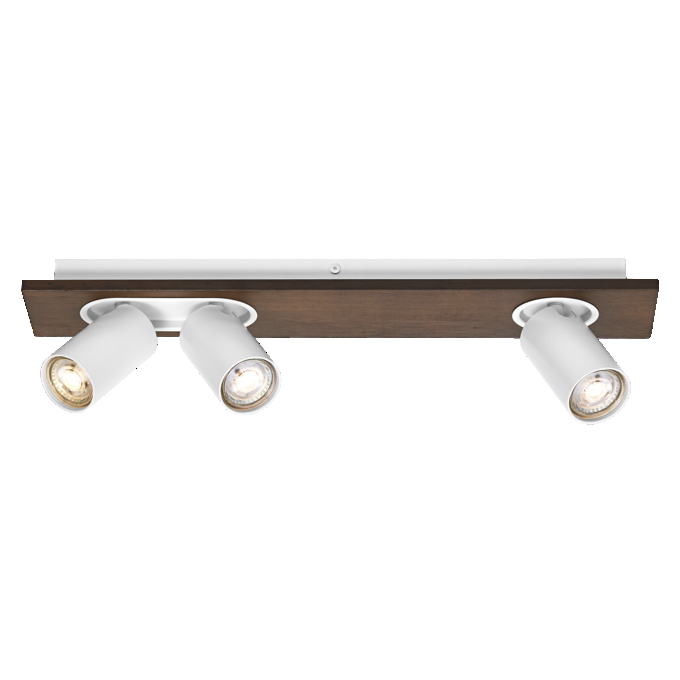

Decor Spot Mercury GU10 White 3x3.4W 927 DIM
4058075833593
Product benefits
- High-quality look and feel
- High-quality housing with matt white or matt black surface
- Flexible thanks to replaceable LED lamps
- Dimmable OSRAM lamp included
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features four versions with up to 4 spot heads
- Housing material: metal and wood
- On/off switch on 1-head version for easy operation
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Beam angle
36 °
Body material
Steel|wood
Color rendering index Ra
90
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075833593
Height
142.00 mm
Holder designation
GU10
Housing color
White|Wood decor
Inrush current
2.7 A
Inrush current time Th50
600 µs
Length
520.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead 7439-92-1
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
68 lm/W
Luminous flux
690 lm
Luminous intensity
400 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
50
Max. number of luminaires per miniature circuit breaker C16
88
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
51.000 mA
Nominal voltage
220…240 V
Nominal wattage
10.20 W
Number of illuminants
3
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.70
Product color
White|Wood decor
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum bulb wattage: 5 W LED
Product weight
1180.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
0.3
Temperature range at storage
-20…+40 °C
Total harmonic distortion
64 %
Total luminous flux of contained light sources
690 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
100.00 mm
With light source
Yes
