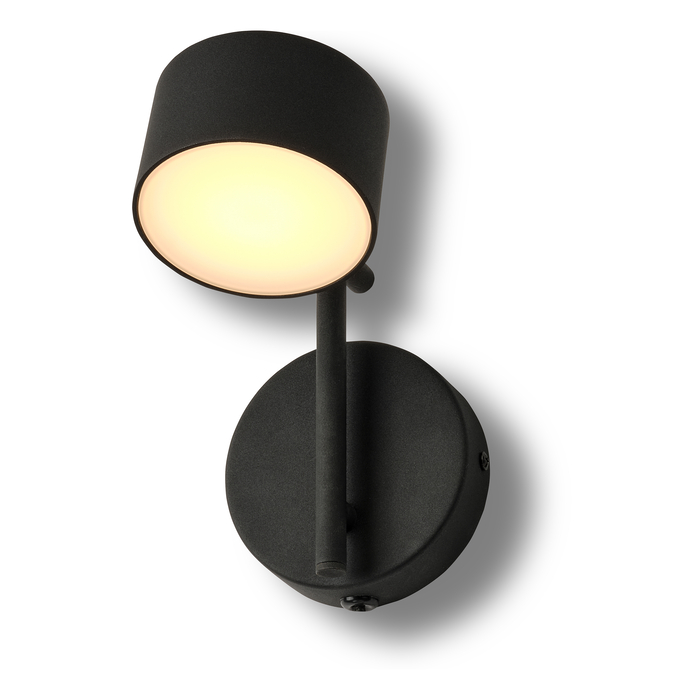

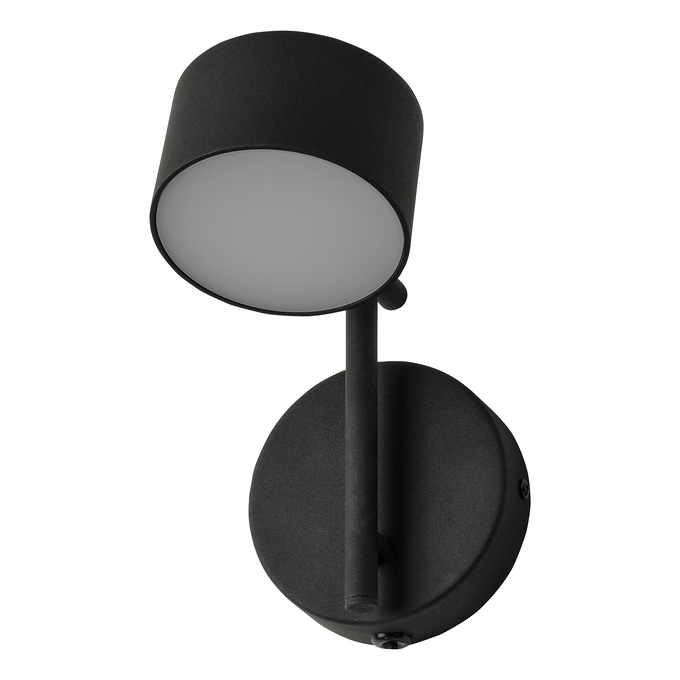

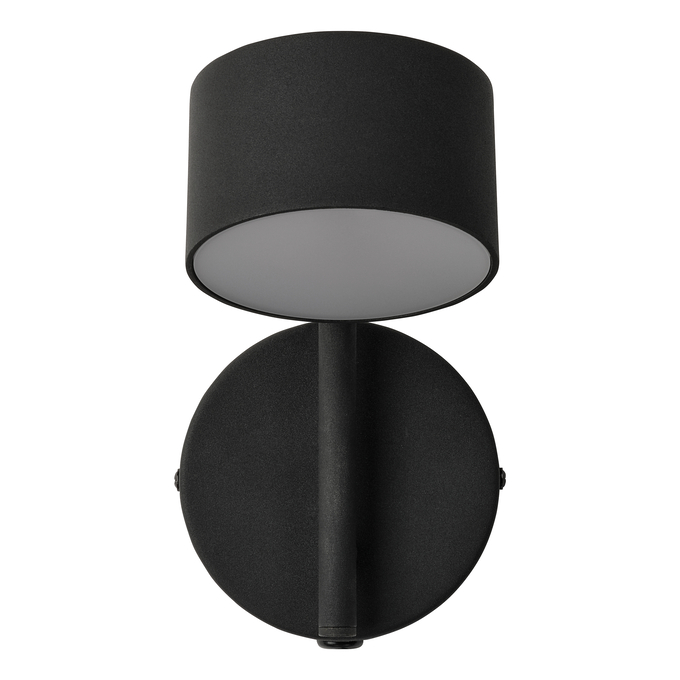

Decor Kyoto Wall 12W 930 Touch DIM Black
4099854654091
Product benefits
- Geometric shapes meet even illumination
- Minimalistic style fits to every room
- Different types of luminaires with the same design language maintain a consistent style at home
- Two options for easy wall installation (via EU plug on cable or direct wiring)
- Easy mounting
- High CRI value of 90 for natural-looking colors
- Dimming function by touch technology (wall, floor, table luminaire) & click dim (pendant luminaire)
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal
- High-power LED
- Color temperature: 3,000 K
- Optional 1.5m cable provided with fitted EU plug (only for wall luminaire)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Cable length
1600 mm
Color rendering index Ra
> 90
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854654091
Height
195.00 mm
Housing color
Black
Length
110.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
30 lm/W
Luminous flux
350 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
36
Max. number of luminaires per miniature circuit breaker C10
22
Max. number of luminaires per miniature circuit breaker C16
36
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
120.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
780.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Standards
CE
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
800 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
Push-DIM
Type of emergency operation test
None
Type of protection
IP20/IP20
Width
190.00 mm
With light source
Yes
