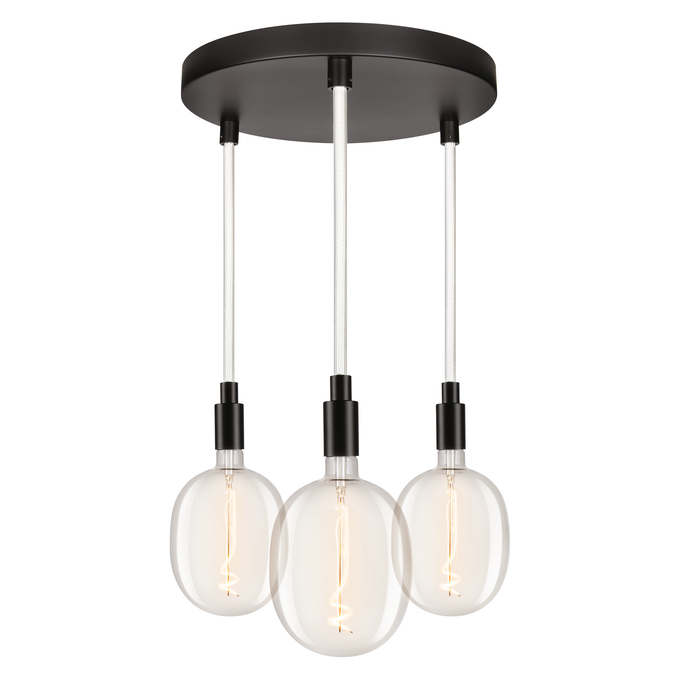

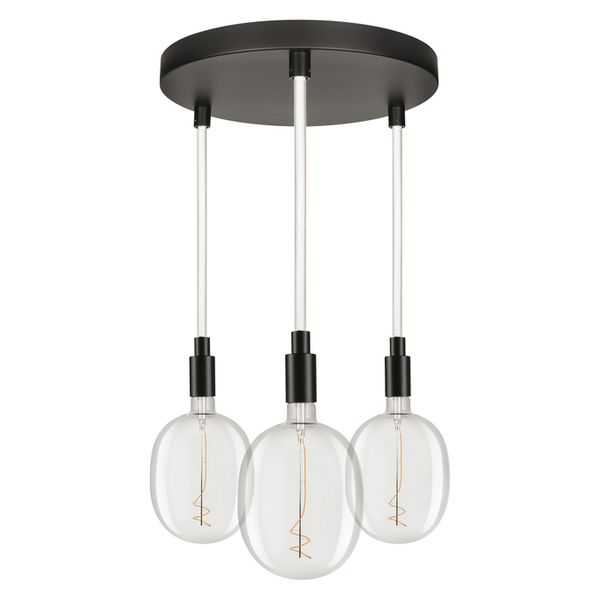

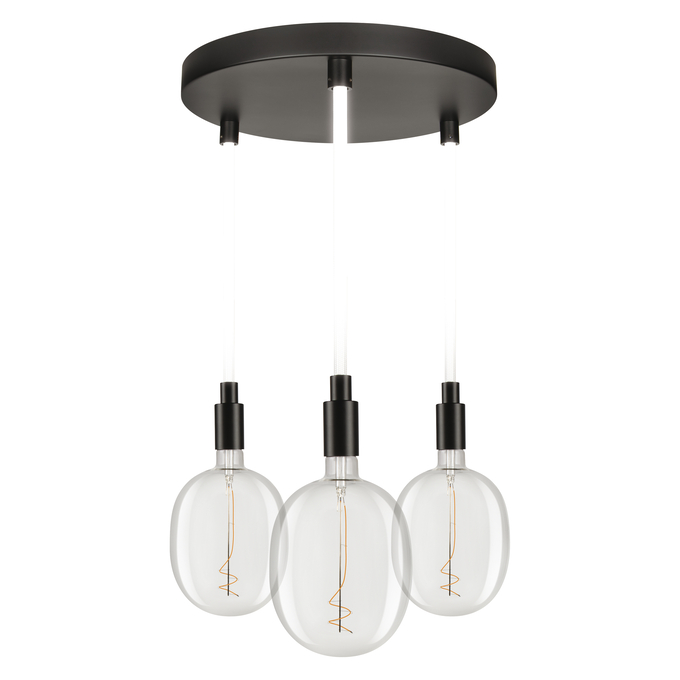

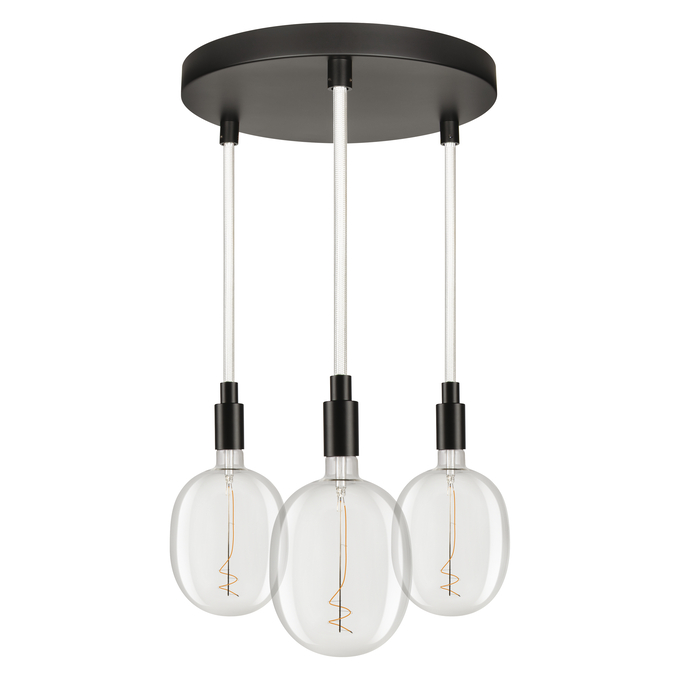

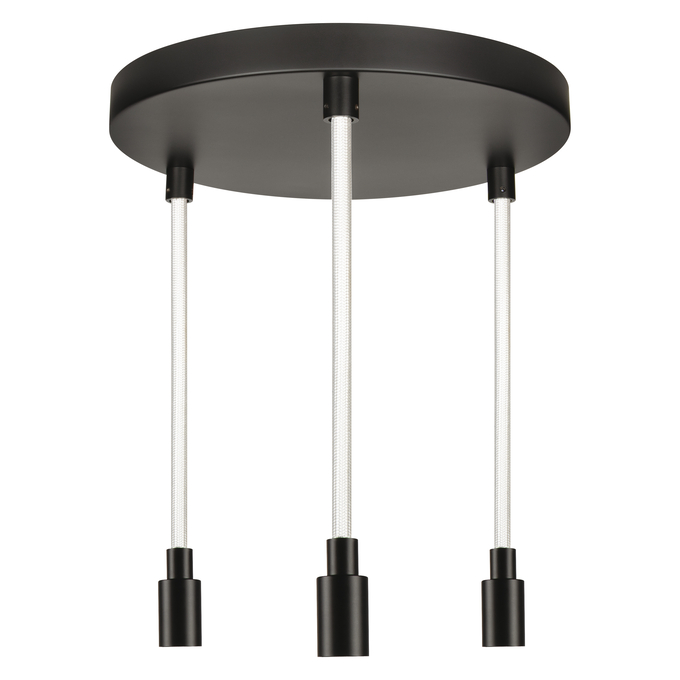

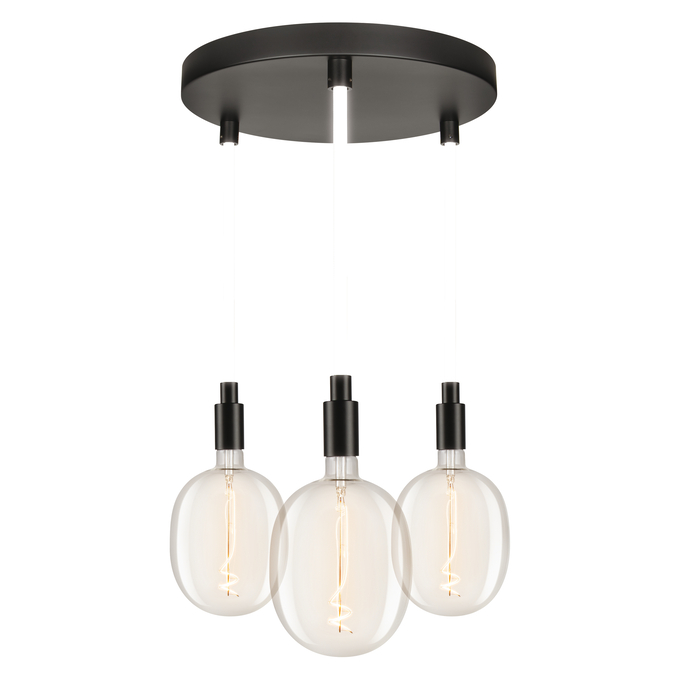

Decor Glow Pendulum Plate 3xE27 LED Select
4058075857032
Product benefits
- 3-step selecting by wall switch to turn on illumination of cable and or socket (click select)
- High-quality look and feel
- Easy mounting
- Timeless design
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, bedrooms, basements
Product features
- Housing material: metal and plastic
- Modern minimalistic design
- Illuminated cable
- Memory function of the light setting
Safety advice
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Body material
Steel
Color rendering index Ra
90
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Silicon|Polyester
Diameter
400.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075857032
Height
1175.00 mm
Holder designation
E27
Housing color
Black
Inrush current time Th50
142 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
50 lm/W
Luminous flux
1400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
19
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended
Nominal current
60.000 mA
Nominal voltage
220…240 V
Nominal wattage
28.00 W
Number of illuminants
3
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.80
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum bulb wattage: 15 W (LED)
Product weight
2500.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
3600 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20/IP20
With light source
Yes
