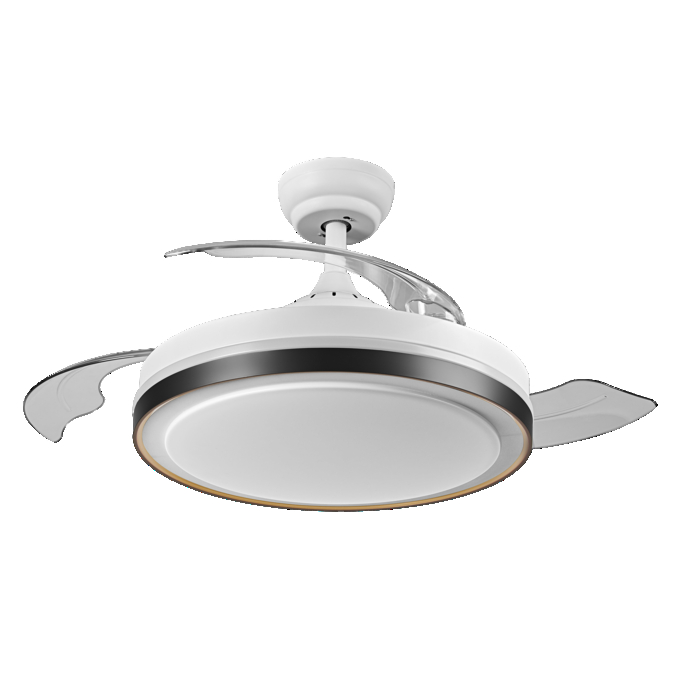

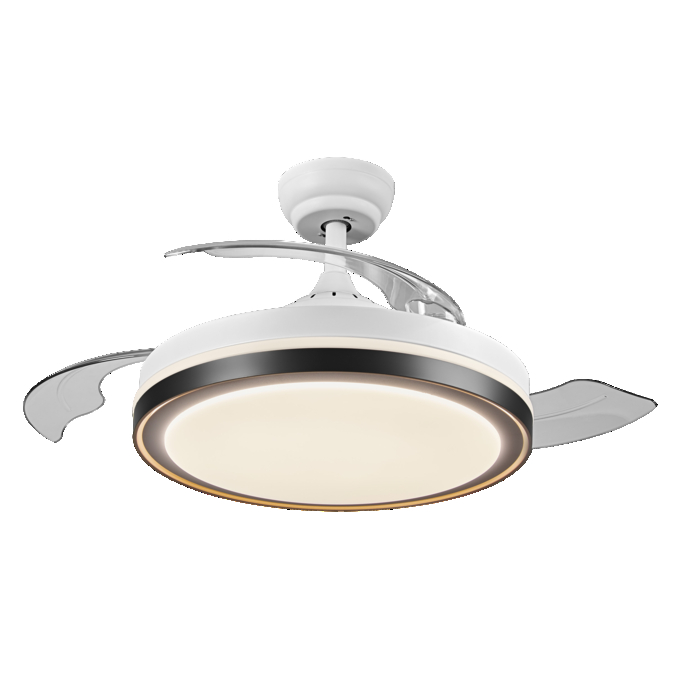

Ceiling Fan Retractable 1070 66W White
4058075857506
Product benefits
- Airflow suitable for 13-20 m²
- Set color temperature according to daytime and usage (dining, relaxing, social events...)
- Pleasant use during sleeping phase (low noise on low level speed)
- Blades not visible when turned off, which creates aesthetic appearance of a pendant luminaire
- Summer / winter mode
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Airflow: max 6460 m³/h
- Speed levels: 1 - 6 steps
- Timer: 2 h / 4 h / 8 h

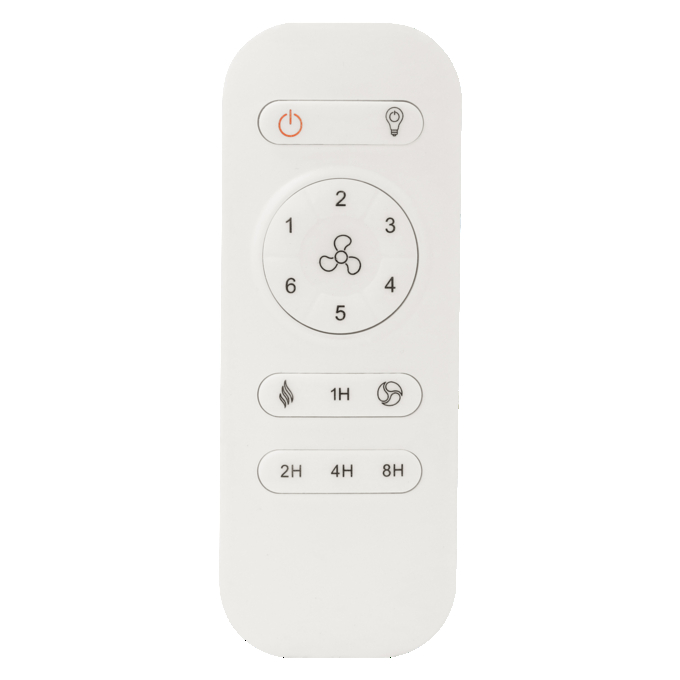

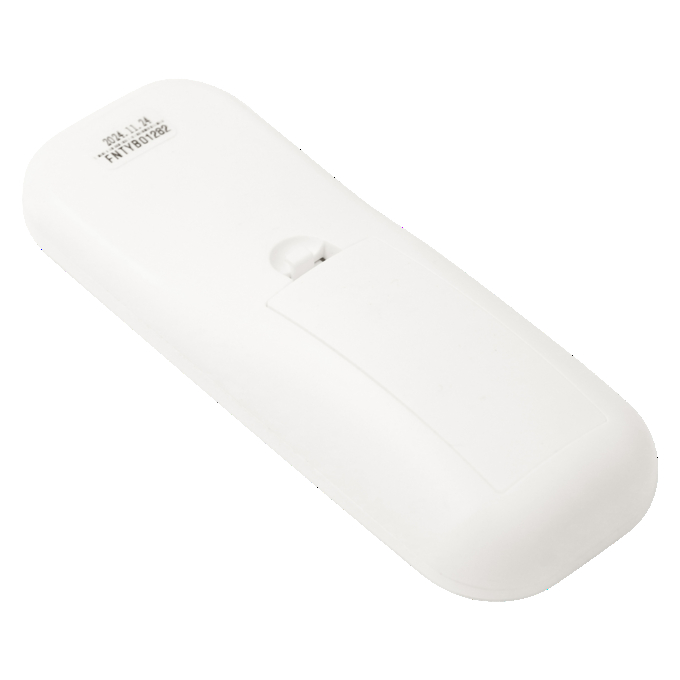

- Control unit: remote control
- Motor type: DC
- Adjustable light color: 3000 K, 4000 K, 6500 K
- Lumen source: 4200 lm
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
- Remote control included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Diameter
490.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075857506
Height
385.00 mm
Housing color
White
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 4,4 - Diaminoduphenylmethane (MDA) 101-77-9, Formaldehyde (25214-70-4)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
50 lm/W
Luminous flux
4200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
7
Max. number of luminaires per miniature circuit breaker C16
13
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
330.000 mA
Nominal voltage
220…240 V
Nominal wattage
66.00 W
Number of switching cycles
20000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
6500.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4200 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP20/IP20
With light source
Yes
