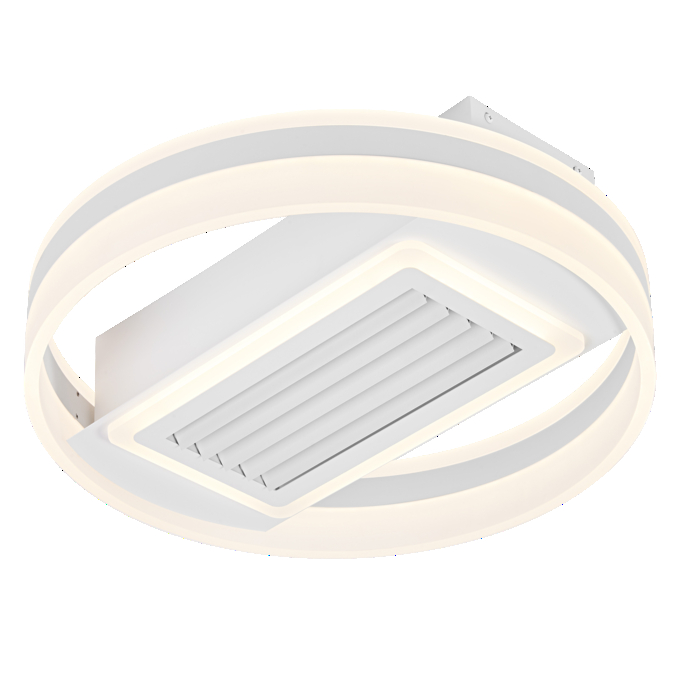

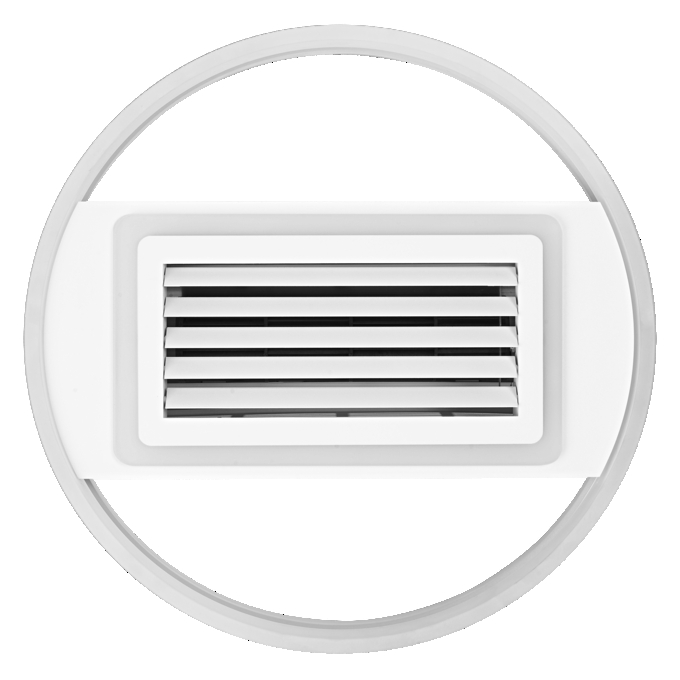

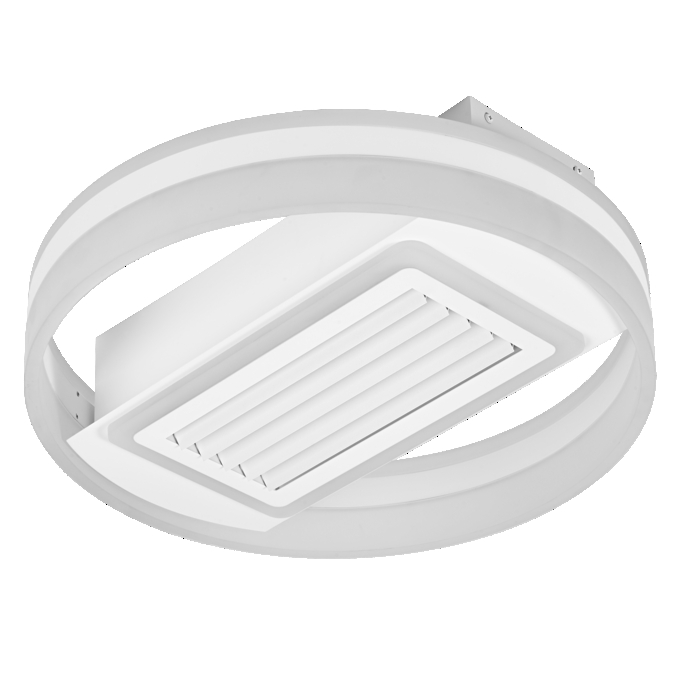

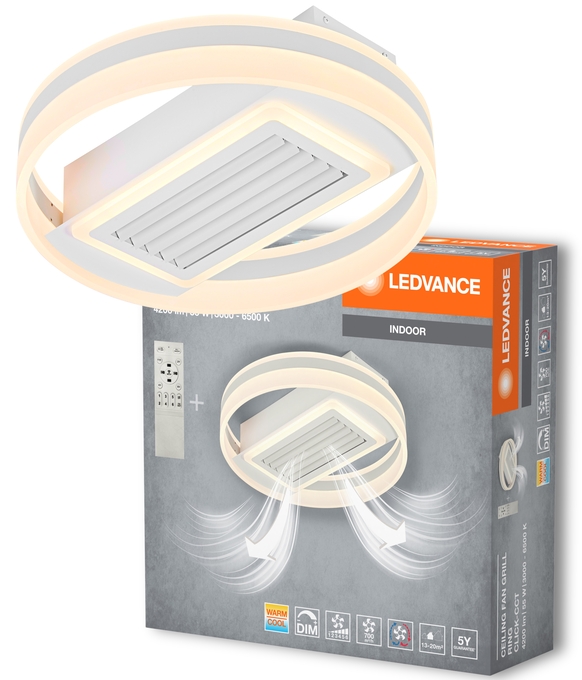

Ceiling Fan Grill Ring 55W CCT White
4099854397691
Product benefits
- Airflow suitable for 13-20 m²
- Set color temperature according to daytime and usage (dining, relaxing, social events...)
- Set light output from 0-100% for personal comfort
- Pleasant use during sleeping phase (low noise on low level speed)
- Aesthetic appearance of a ceiling luminaire
- Summer / winter mode
- 5 years guarantee
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Airflow: max 700 m³/h
- Speed levels: 1 - 6 steps
- Timer: 1 h / 2 h / 4 h
- Control unit: remote control
- Motor type: DC
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Lumen source: 4200 lm
- Dimmable
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
- Safety rope
- Requires 2xAAA batteries (not included)
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Air circulation
700
Ambient temperature range
-20…+40 °C
Beam angle
260 °
Body material
Steel|Plastic
Color rendering index Ra
> 80
Color temperature
3000…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
500.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854397691
Height
135.00 mm
Housing color
White
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
84 lm/W
Luminous flux
3100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
320
Max. number of luminaires per miniature circuit breaker C16
320
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
230.000 mA
Nominal voltage
220…240 V
Nominal wattage
55.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 2025
Product weight
4700.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Suitable for room space up to
20 m²
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
4200 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
