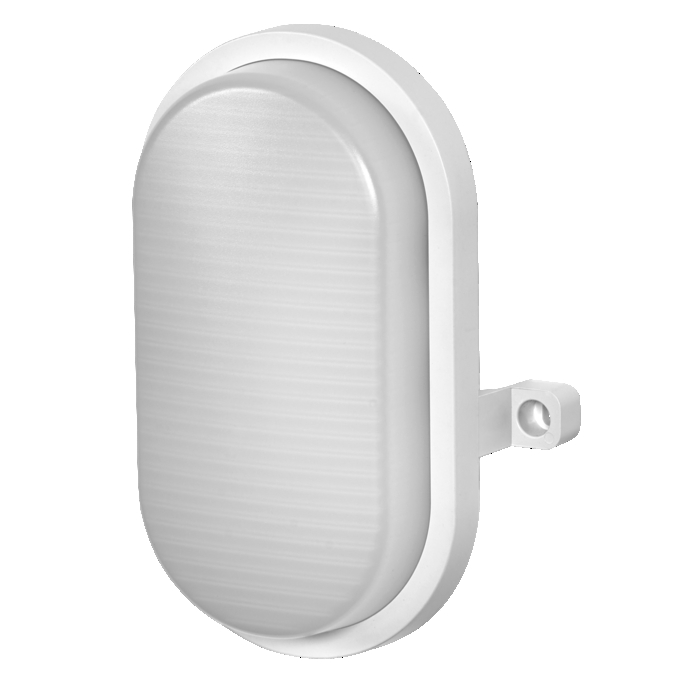

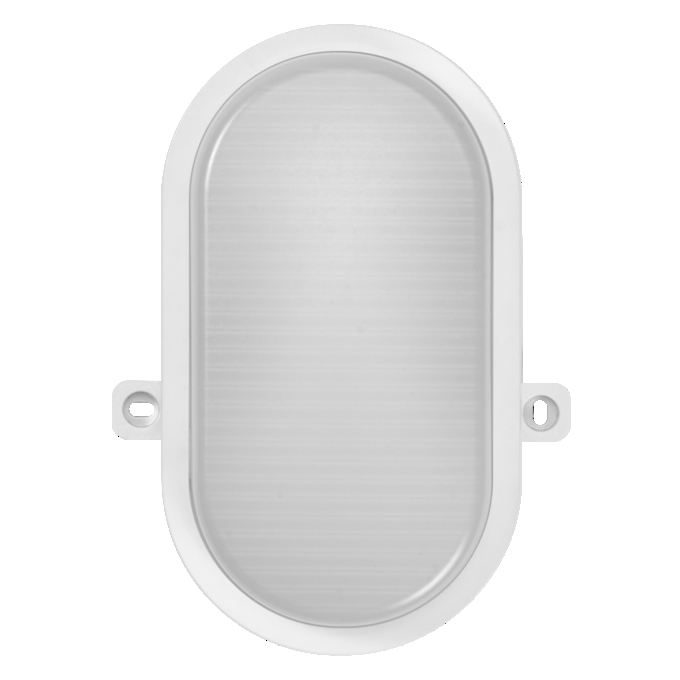

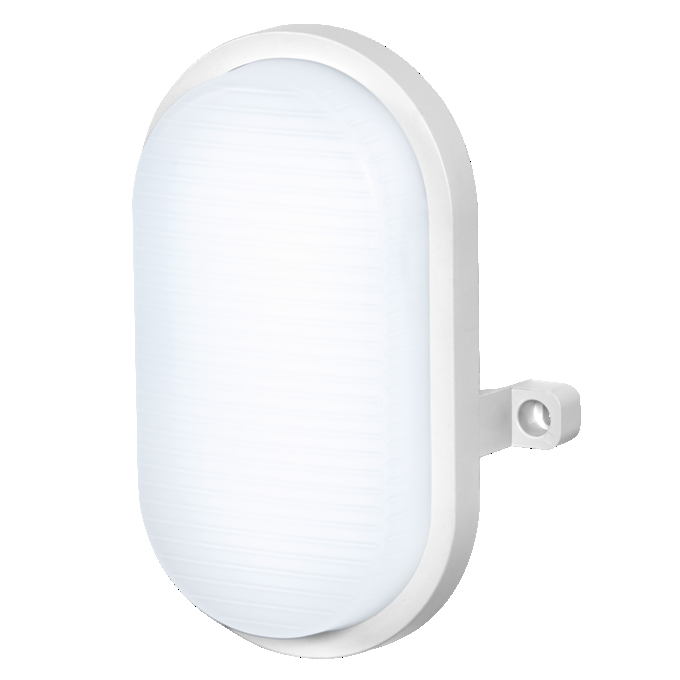

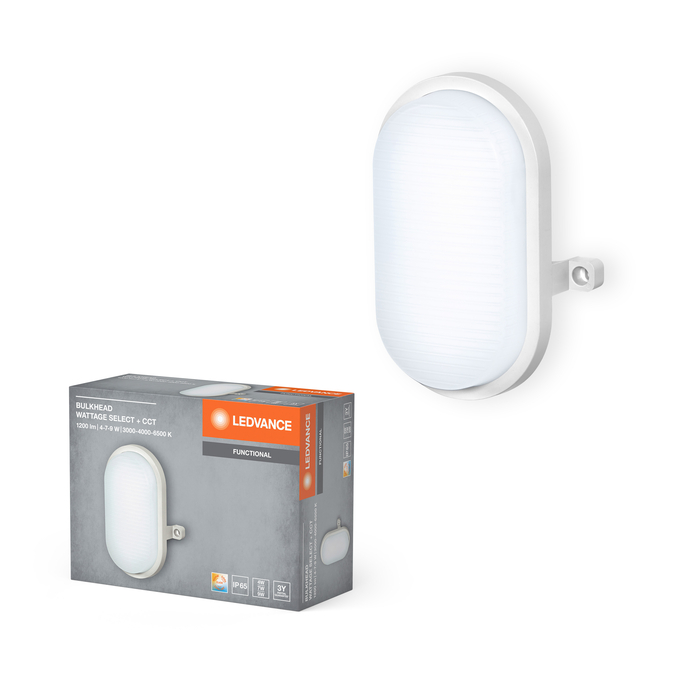

Bulkhead 4W/7W/9W CCT White
4058075845527
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) thanks to a switch on the backside
- Suitable for use in dusty and damp locations thanks to high IP rating
Areas of application
- Outdoor
- Basement
- Garages
- Corridors, stairways, entrance areas
Product features
- High luminous efficacy: > 115 lm/W for 6500 K
- Impact resistance: IK06
- Type of protection: IP65
- Easy and quick installation
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
4 W
120 lm/W
7 W
102 lm/W
9 W
93 lm/W
Ambient temperature range
-20…+45 °C
Ball shot safe
No
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075845527
Height
176.00 mm
Housing color
White
Inrush current
0.1 A
Inrush current time Th50
150 µs
Length
129.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W / 100 lm/W / 94 lm/W
Luminous flux
840 lm / 720 lm / 500 lm
Max. number of luminaires per miniature circuit breaker B16
119
Max. number of luminaires per miniature circuit breaker C10
80
Max. number of luminaires per miniature circuit breaker C16
128
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
48/37/22 mA
Nominal voltage
220…240 V
Nominal wattage
9 W / 7 W / 4 W
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
220.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 54 %
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP65
Width
70.00 mm
With light source
Yes
