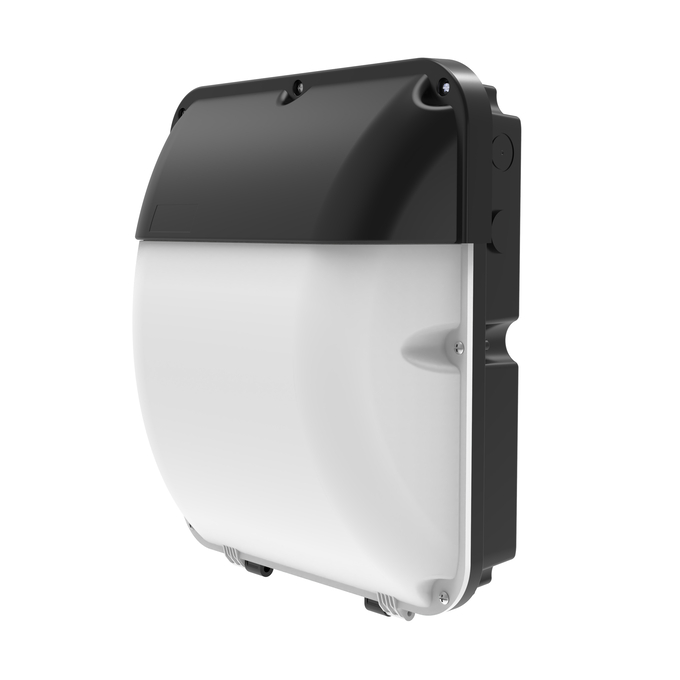

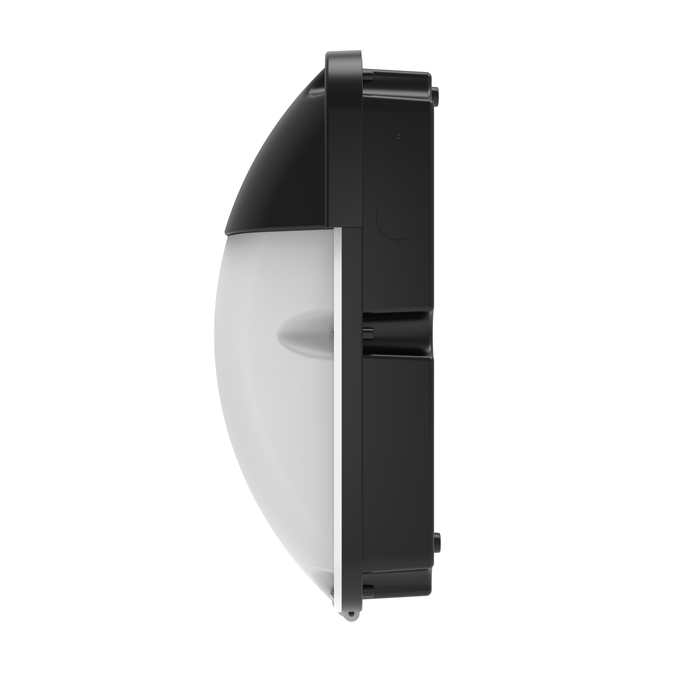

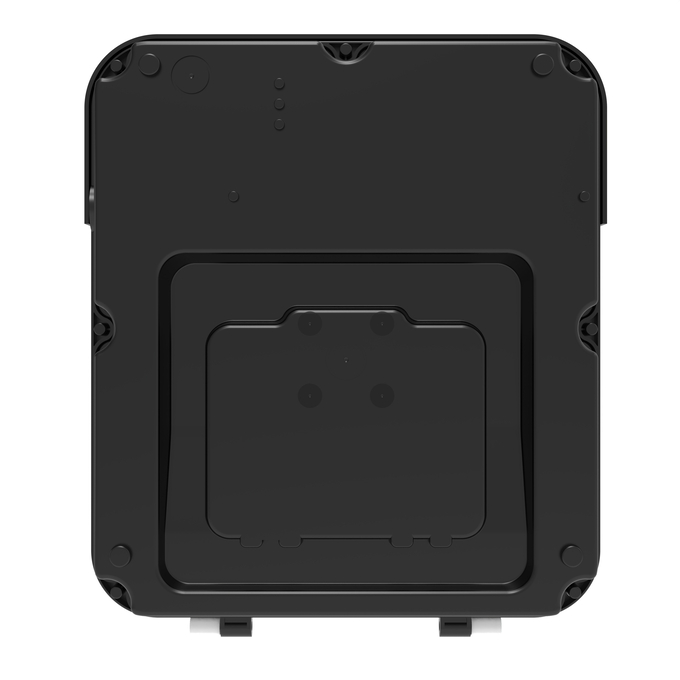

WALLPACK CBO V 24W ML 84065 IP65
4099854668074
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Separate decor element available for an aesthetic and functional product design
Areas of application
- Outdoor
- Loading docks
- Facade lighting
Product features
- High luminous efficacy: up to 110 lm/W
- Type of protection: IP65
- Impact resistance: IK08
- Ambient temperature in operation: -20…+50 °C
Equipment / Accessories
- Plug & Upgrade emergency kit separately available
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
18 W
110 lm/W
24 W
110 lm/W
Added function
MULTI SELE
Ambient temperature range
-20…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
6500 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 36 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854668074
Height
124.00 mm
Housing color
Black
Inrush current
9 A
Inrush current time Th50
190 µs
Length
271.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool Daylig
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Cadmium (7440-43-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
2640 lm / 1980 lm
Luminous flux in emergency operation mode
150 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
42
Max. number of luminaires per miniature circuit breaker C10
35
Max. number of luminaires per miniature circuit breaker C16
57
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Wall mounting
Nominal current
124mA / 88 mA
Nominal voltage
220…240 V
Nominal wattage
24 W / 18 W
Number of switching cycles
100000
Output current
225mA / 176 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.70
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
992.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 60 %
Type of connection
Push-in
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP65/IP65
UGR
< 30
Wattage in emergency operation mode
1.5 W
Width
314.00 mm
With light source
Yes
