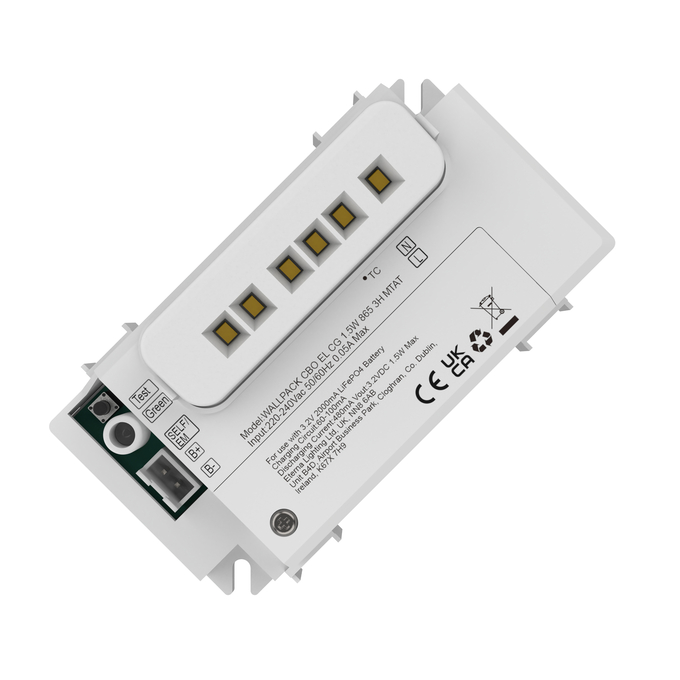

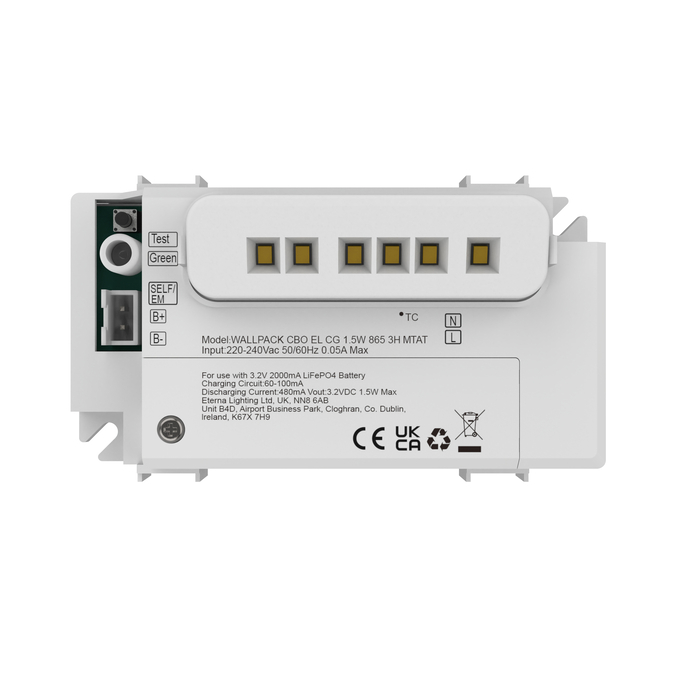

WALLPACK CBO EL CG 1.5W 865 3H MTAT
4099854668111
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Easy Plug & Upgrade concept for WALLPACK COMBO
Areas of application
- Suitable for WALLPACK COMBO
Product features
- Emergency lighting function: battery discharge time of 3 h
- Operation mode: maintained (M) or non-maintained (NM)
- Type of protection: IP20
- Ambient temperature in operation: 0…+40 °C
Equipment / Accessories
- Battery included
- Mounting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Added function
PLUG & UPGRADE
Ambient temperature range
0…+40 °C
Ball shot safe
No
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Body material
Polycarbonate (PC)
Color rendering index Ra
>80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854668111
Height
34.00 mm
Housing color
White
Length
119.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Cadmium (7440-43-9)
Low flicker
Yes
Luminous flux
269 lm / 150 lm
Luminous flux in emergency operation mode
269 lm
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
0.15 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
1.50 W
Number of switching cycles
100000
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
122.00 g
Protection class
II
RAL Color (most similar)
RAL 9001
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Temperature range at storage
-40…+80 °C
Type of Battery
LiFePO4
Type of emergency operation test
Test button
Type of protection
IP20
UGR
< 30
Wattage in emergency operation mode
1.5 W
Wattage in maintained operation mode
1.5 W
Width
69.00 mm
