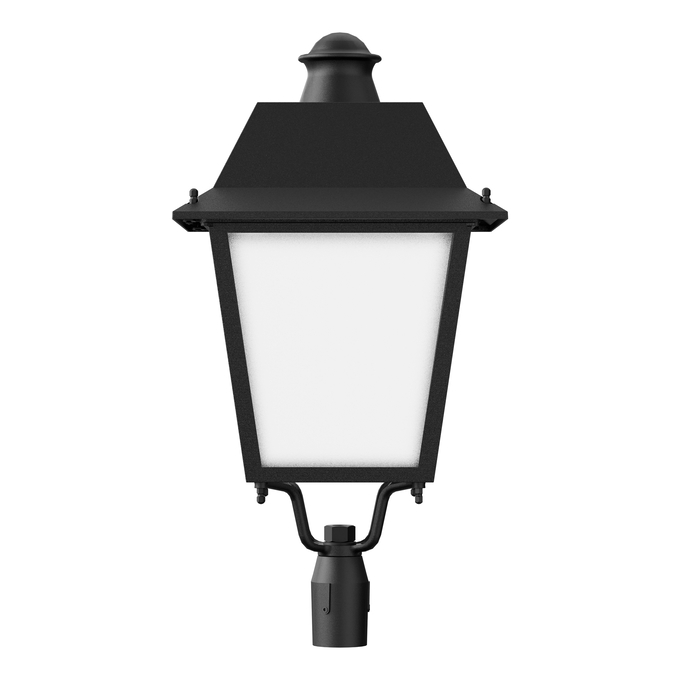

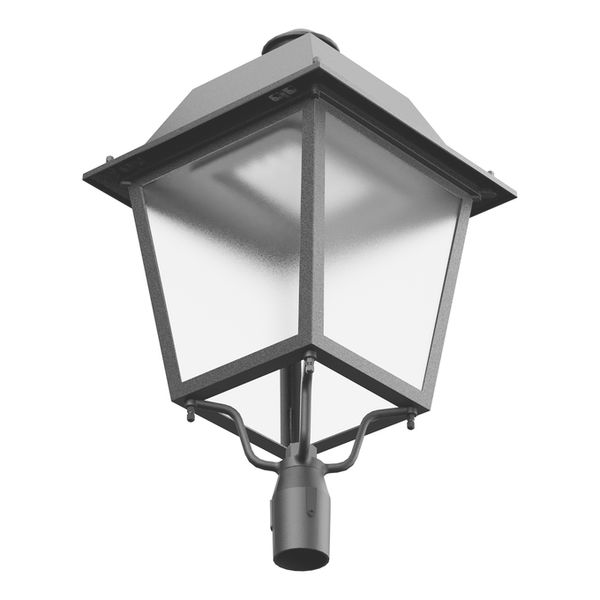

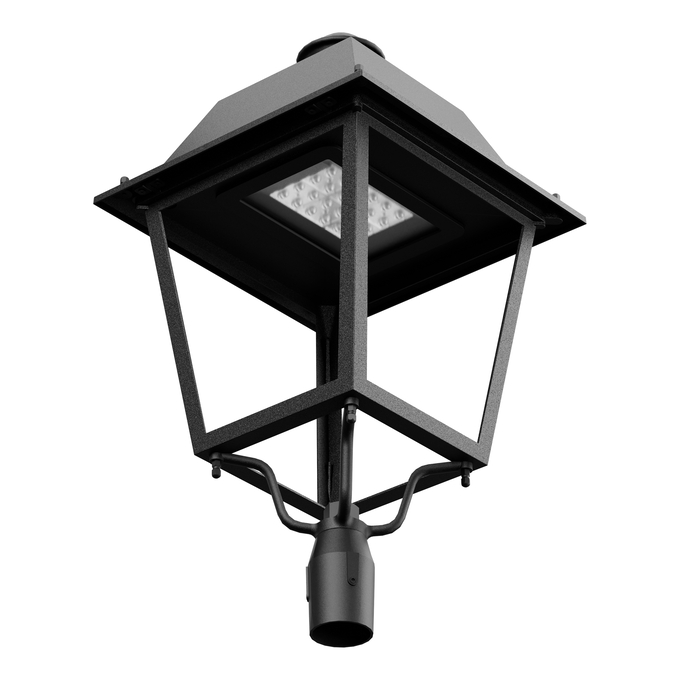

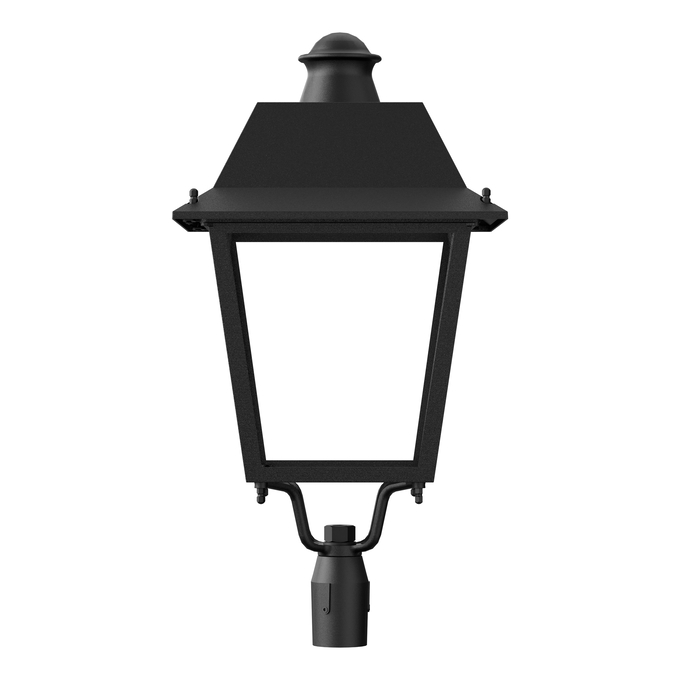

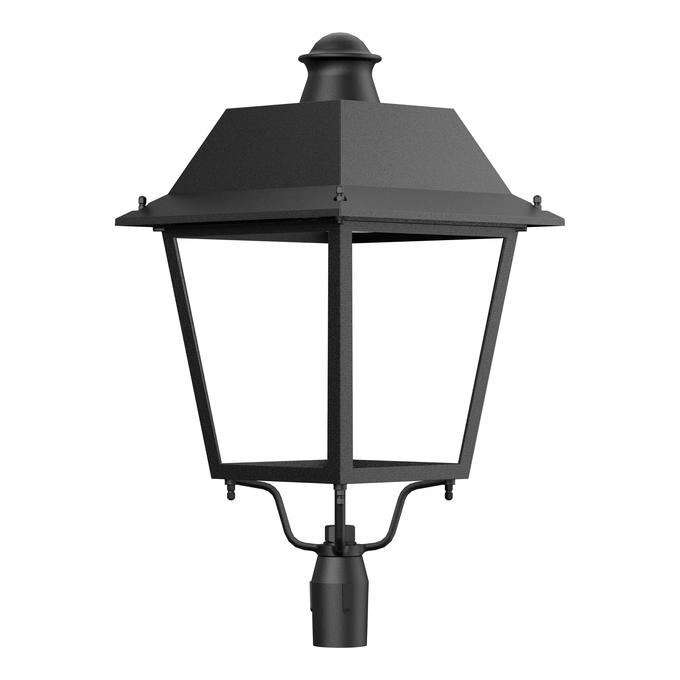

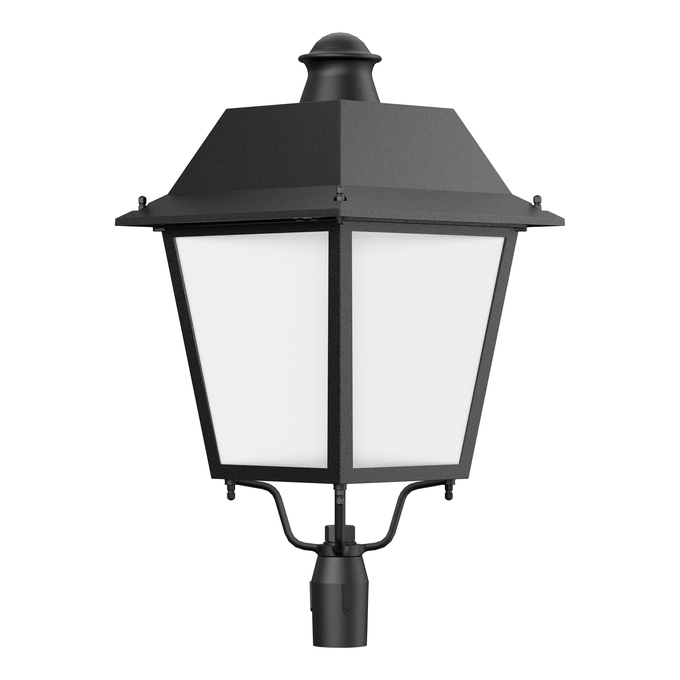

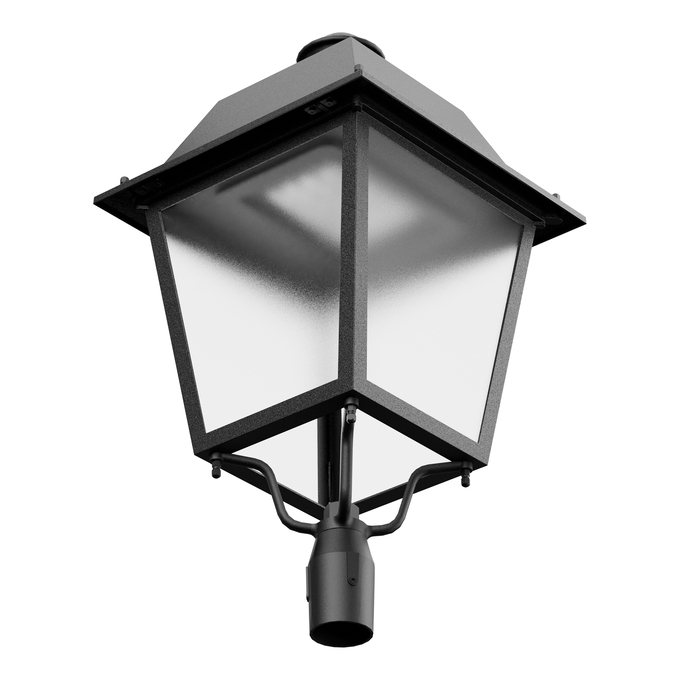

URBAN VLA P 40W 722 A50X150
4099854609244
Product benefits
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 2 light colors available, perfectly suited to illuminate highly diverse surroundings
Areas of application
- Outdoor use (IP66)
- Parks
- City center
- Historical center
Product features
- Very long lifetime (L70): up to 100,000 h (at 25 °C)
- Aluminum low copper content: AC47100
- 1000 hours salt mist spray test
- Corrosion-resistant powder coating
- Spigot for 60 mm poles included
- DALI D4i drivers for smart city applications
- Operating temperature: -20…45 °C
- High surge protection: up to 20 kV (L/N-GND)
- Type of protection: IP66
- Protection class: II
Equipment / Accessories
- Frosted glass available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-20…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
50° x 150 °
Body material
Aluminum
Color rendering index Ra
> 70
Color temperature
2200 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes 1)
Dimming range
10…100 %
ECG - Output ripple current
5 %
ECG - Output voltage
19…57 V
EPD
LEDV-00072-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854609244
Height
816.00 mm
Housing color
Black
Inrush current
18.7 A
Inrush current time Th50
830 µs
IoT ready
Support of DALI data type PART 251, 252, 253 2)
Length
425.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
70000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
4200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Post top
Nominal current
179.000 mA
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
200…1050 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
8900.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screw terminal
Type of dimming
DALI D4i
Type of protection
IP66
Width
425.00 mm
With light source
Yes
