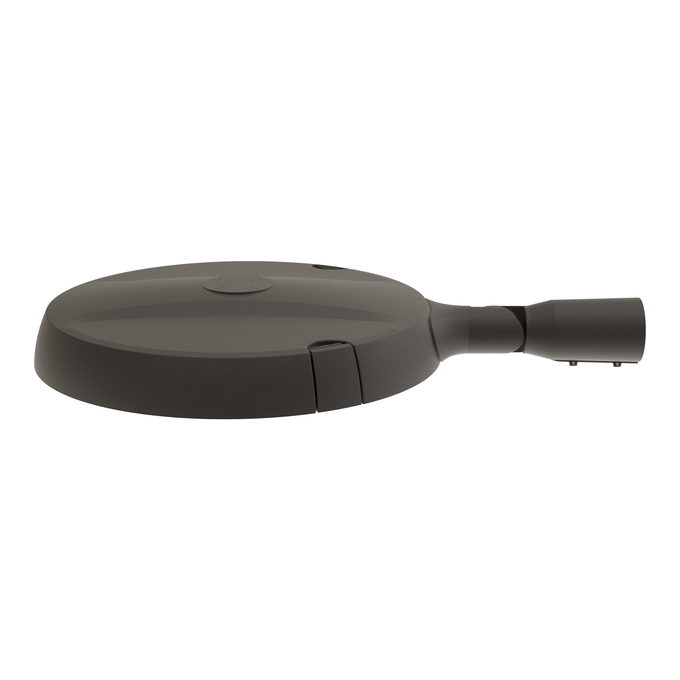

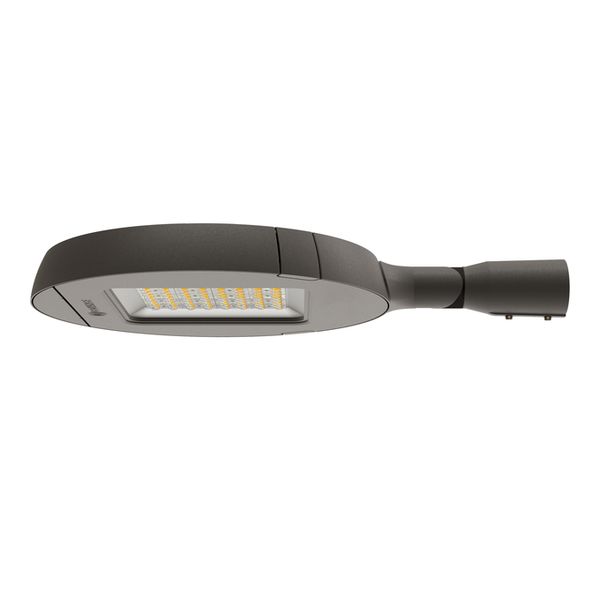

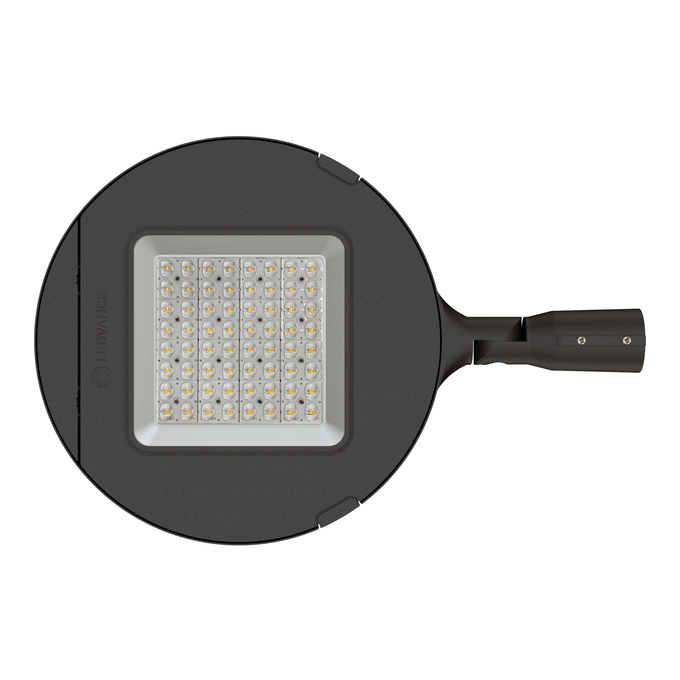

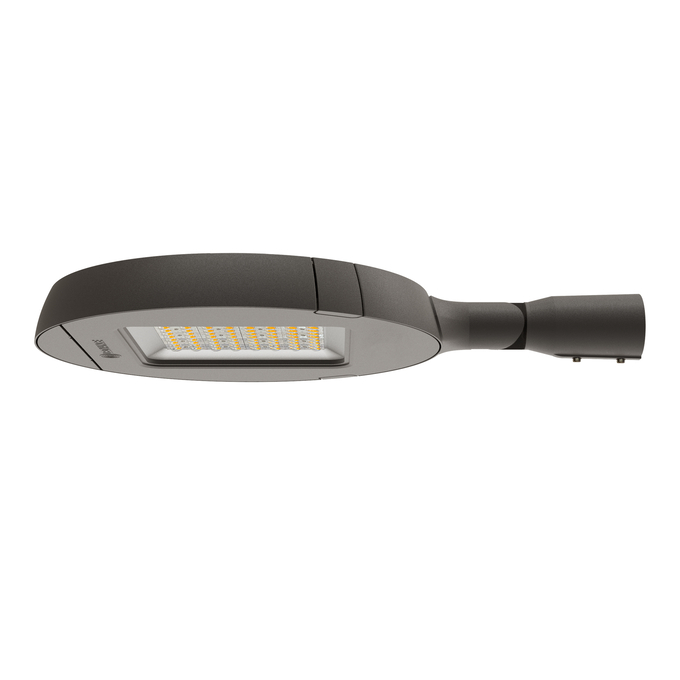

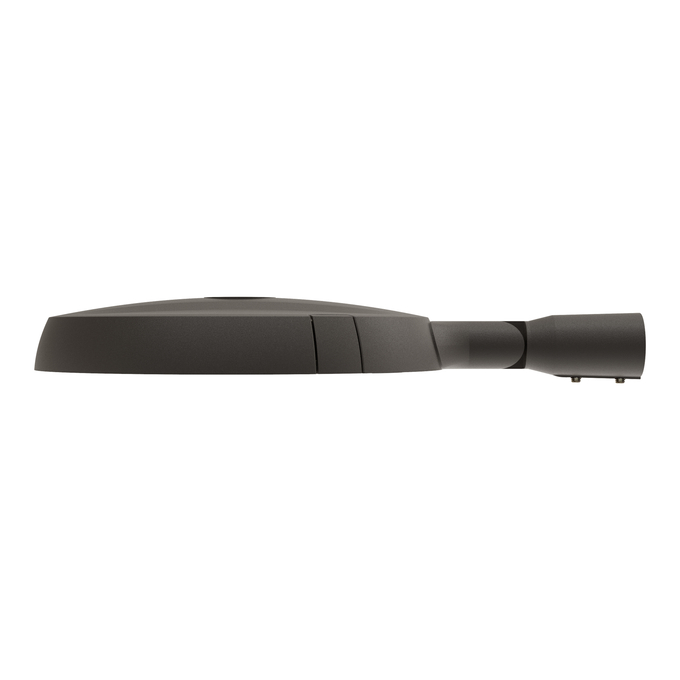

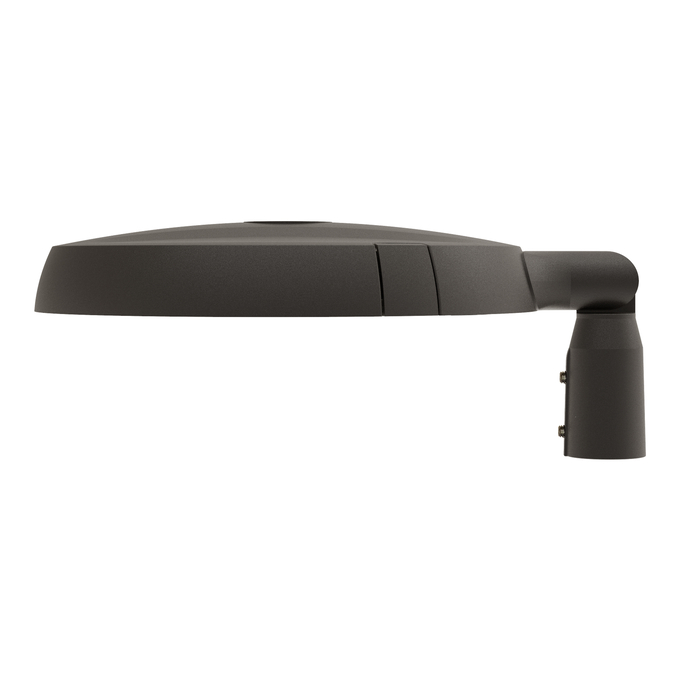

URBAN FLEX STREET S6 080W 740 RV35ST 1DIM NO CABLE UMBRA GREY CLASS 2
4099854796111
Product benefits
- 7 years guarantee
- Durable design and highest quality component selection for long lasting performance
- Corrosion resistance C4: suitable for use in environments with moderate salinity
- Automatic mains disconnection when opening the housing
- 5 light colors available, perfectly suited to illuminate highly diverse surroundings
- ZHAGA standardized PCB
- ZHAGA type of connection for controllers and sensors
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Outdoor applications
- Public areas
- City roads, industrial roads, parking lots
- Avenues and promenades
- Pedestrian crossings
- Parks
- M-, C- and P-class roads acc. to EN 13201
Product features
- Modern minimalistic design
- Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
- Impact resistance: IK10
- Protection rating: IP66
- Luminous efficacy: up to 180 lm/W
- 10 KV surge protection, with replaceable SPD
- Operating temperature: -40...50 °C
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
156 ° x 67 °
Body material
Aluminum 1)
Color rendering index Ra
70
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C4
Cover material
Glass
Dimmable
No
ECG - Output ripple current
< 15 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854796111
Height
105.00 mm
Housing color
Umbra grey
Inrush current
48.5 A
Inrush current time Th50
208 µs
Length
754.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
100000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
174 lm/W
Luminous flux
13880 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
6
Max. number of luminaires per miniature circuit breaker C16
10
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Side entry|post top
Nominal current
350.000 mA
Nominal voltage
220…240 V
Nominal wattage
80.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
860 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Umbra grey
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 20
Product weight
9950.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 7022
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
10 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 2-Pole (L, N)
Type of protection
IP66
Width
506.00 mm
With light source
Yes
