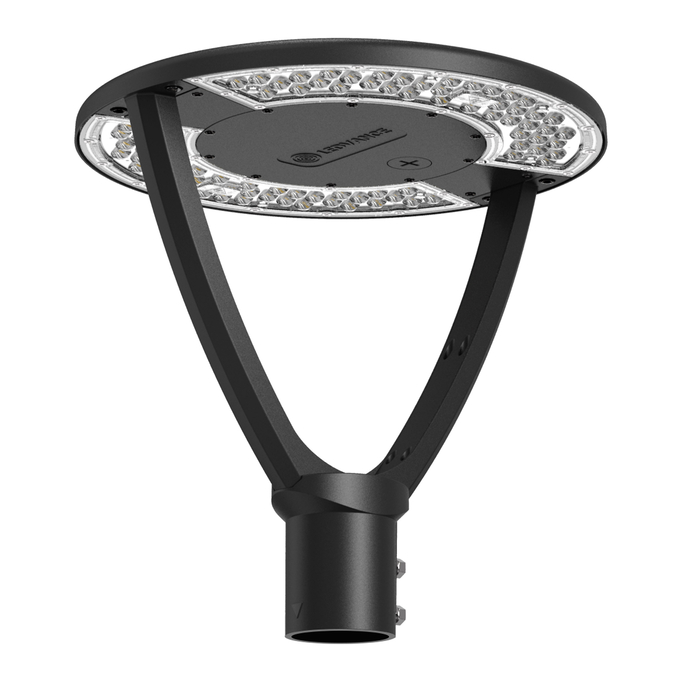

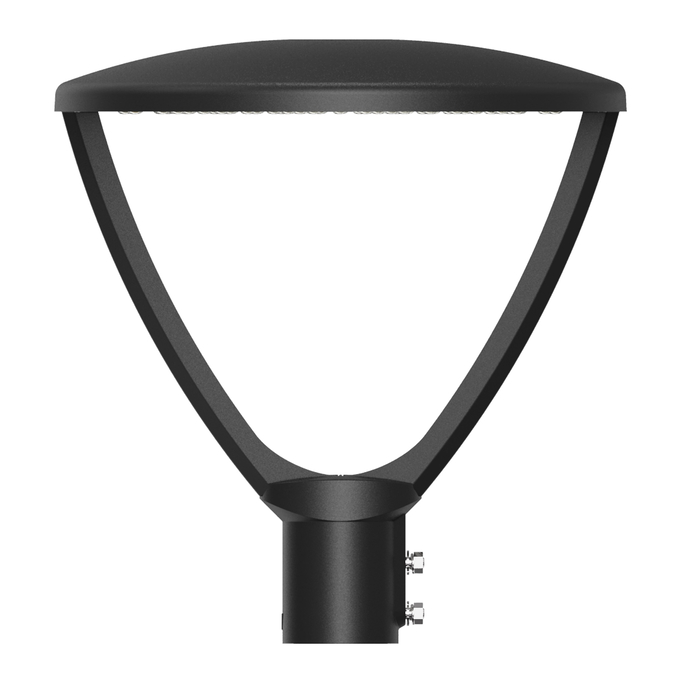

URB LTRN V 59W ASYM PS 822-827 IP66 BK
4099854287695
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 139 lm/W
- Bright, robust and durable
Areas of application
- Replacement for luminaires with mercury vapor or metal halide lamps
- Streets
- Pedestrian zones
- Parks
- Public areas
Product features
- Protection class: II
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Type of protection: IP66
- Impact resistance: IK10
- Asymmetric light distribution
References / Links
- For Guarantee see
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
165° x 65 °
Body material
Aluminum
Cable length
250 mm
Color rendering index Ra
80
Color temperature
2200 K / 2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
395.00 mm
Dimmable
No
ECG - Output ripple current
< 20 %
EPD
LEDV-00041-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
750 °C
GTIN
4099854287695
Height
417.00 mm
Housing color
Black
Inrush current
30.6 A
Inrush current time Th50
300 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
63000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
125 lm/W 1)
Luminous flux
7375 lm / 6125 lm / 5250 lm / 4250 lm 1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
7
Max. number of luminaires per miniature circuit breaker C16
11
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Post top
Nominal current
150-190-215-260 mA
Nominal voltage
220…250 V
Nominal wattage
59 W / 49 W / 42 W / 34 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1490…1240…1060…850 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
4300.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9017
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
6 kV
Temperature range at storage
-35…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP66
With light source
Yes
