UB WALLPACK P 20W ML 83040 GY
4099854592850
Product benefits
- Decorative functional design for urban environment
- Easy installation due to fast connector and anti-drop screws
- Very compact shape with high efficiency
- Multi Lumen: Brightness adjustment via dip switches on the driver

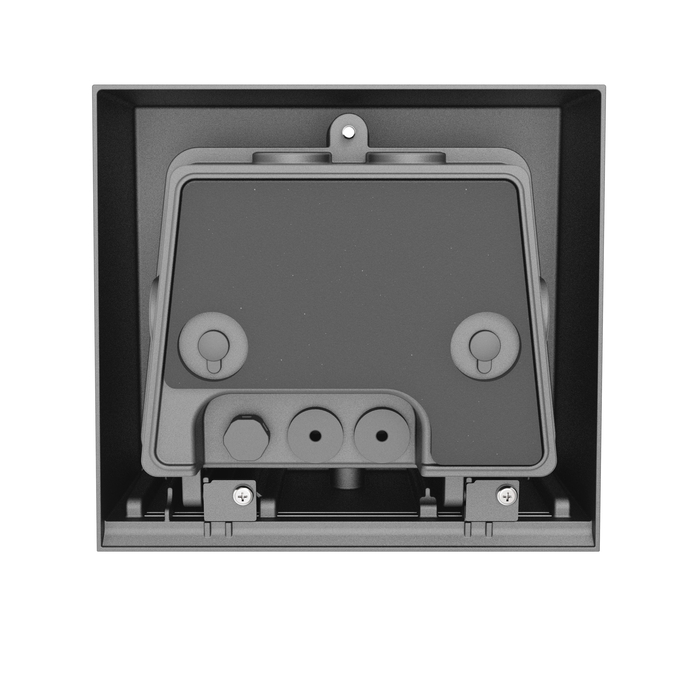

- Easy cable entry either on the back or from the side of the luminaire
Areas of application
- Industry
- Warehouses
- Schools
- Commercial buildings
Product features
- High color consistency: ≤ 3 SDCM
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Multi Lumen function: lumen steps selectable
- Multi Color function: 4000K and 3000K (20W version only)
- Optics with wide beam angle of 55° x 135°
- Ambient temperature in operation: -30…+45 °C
- Daisy chaining possible
Equipment / Accessories
- All required accessories included
- Cable gland included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
10 W
126 lm/W
12 W
125 lm/W
15 W
121 lm/W
17 W
118 lm/W
20 W
115 lm/W
Added function
MULTI SELECT
Ambient temperature range
-30…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
55 ° x 135 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854592850
Height
96.00 mm
Housing color
Gray
Inrush current
32 A
Inrush current time Th50
160.8 µs
Length
200.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
79000 h
Light color (designation)
Warm White…Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
126 lm/W / 125 lm/W / 121 lm/W / 118 lm/W / 115 lm/W
Luminous flux
2300 lm / 2000 lm / 1800 lm / 1500 lm / 1260 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
14
Max. number of luminaires per miniature circuit breaker C10
12
Max. number of luminaires per miniature circuit breaker C16
20
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
92mA / 78mA / 69mA / 57mA / 47 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Operating mode
Integrated LED driver
Output current
500mA / 420mA / 360mA / 290mA / 230 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
1450.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 7022
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal
Type of protection
IP66/IP66
Width
180.00 mm
With light source
Yes
