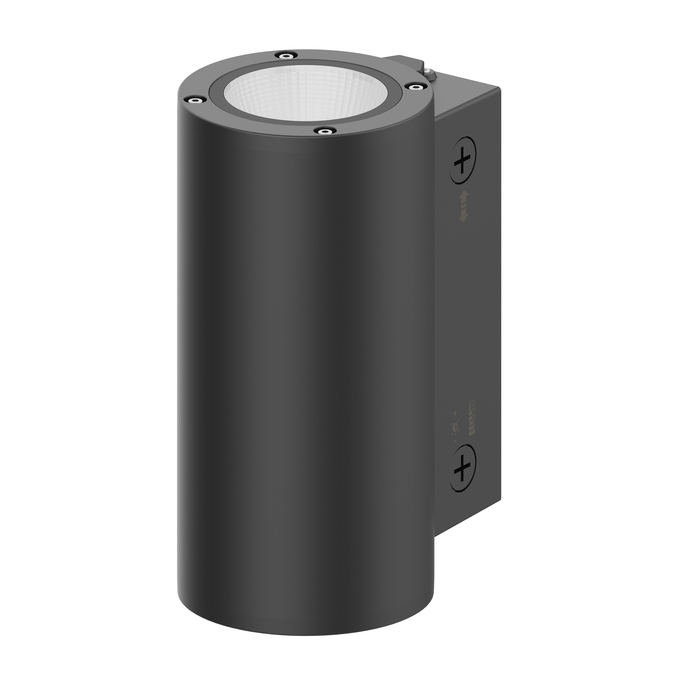

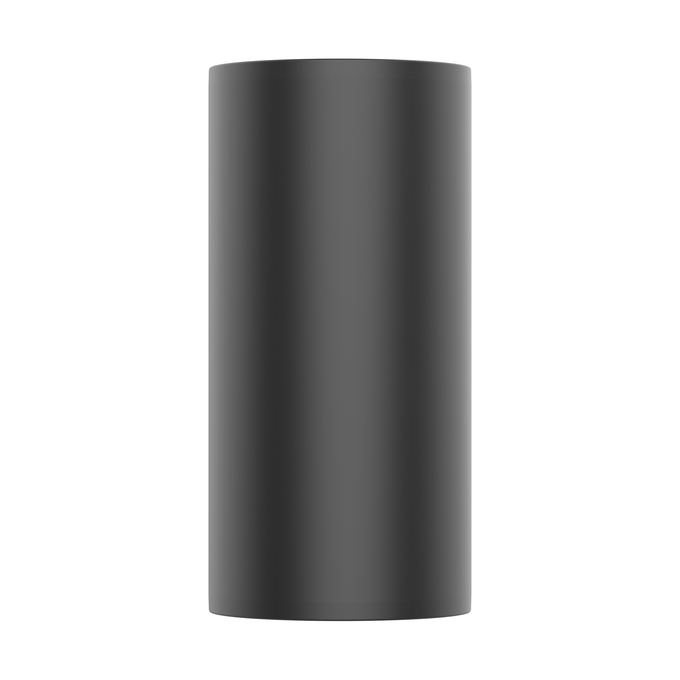

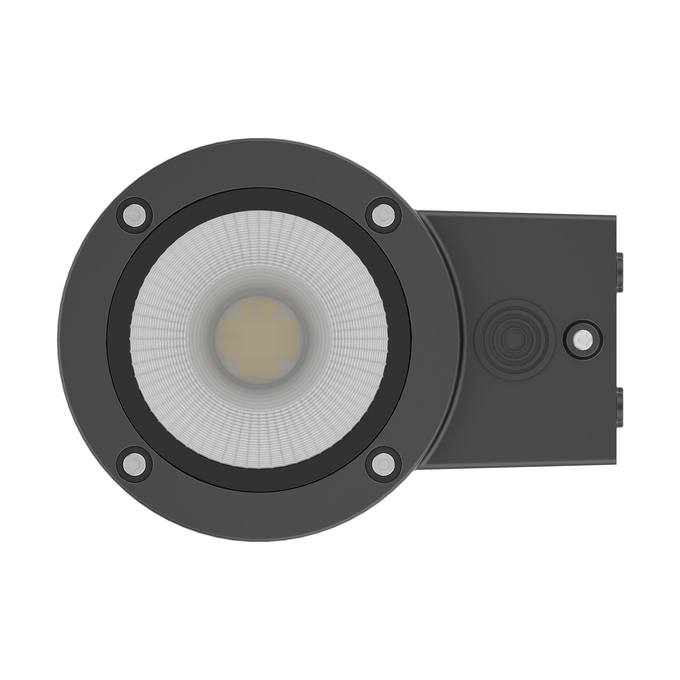

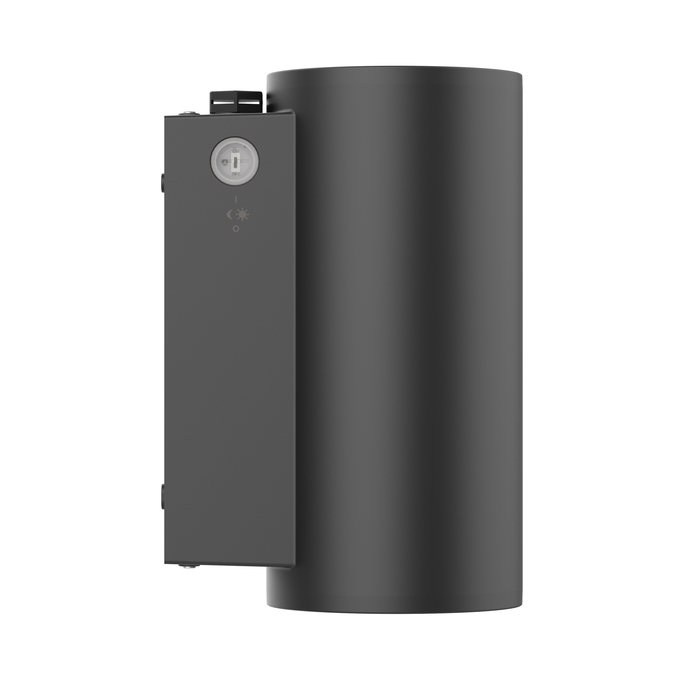

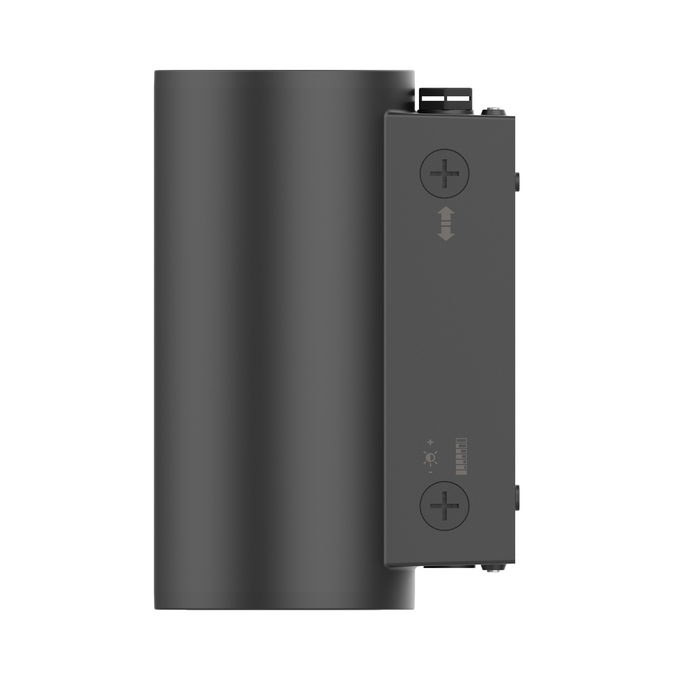

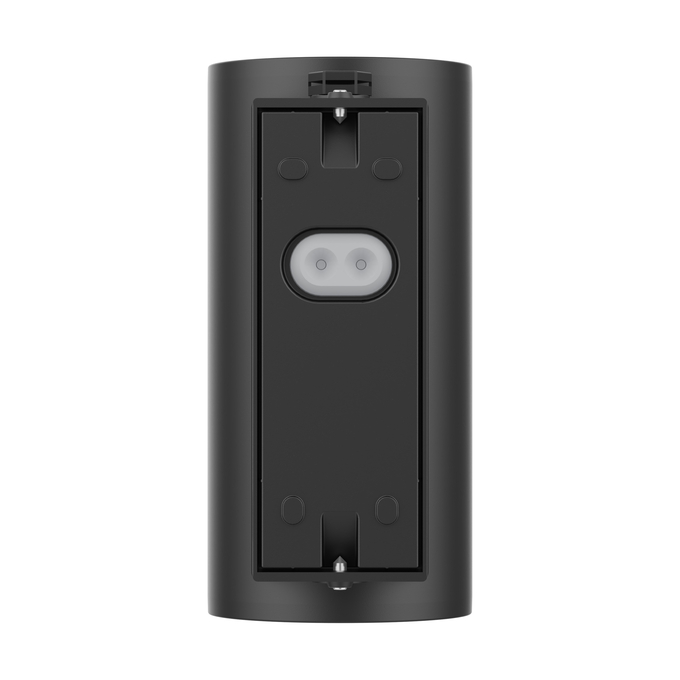

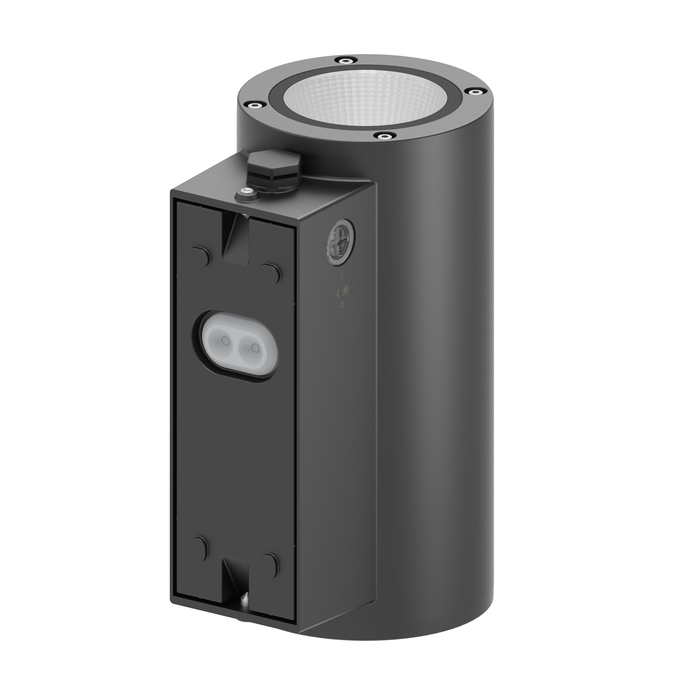

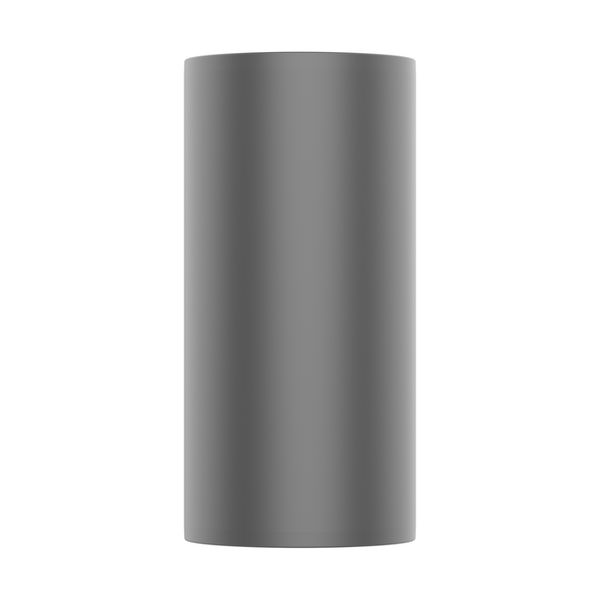

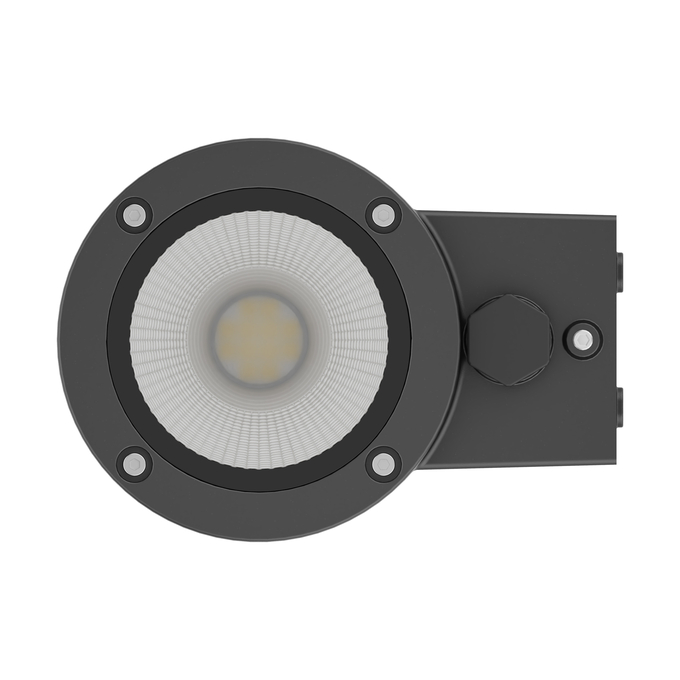

UB WALL VARIO RD P 29W ML 82227 BK
4099854659683
Product benefits
- Highly versatile luminaire with all-in-one feature-set to serve many lighting tasks
- Great industrial design thanks to its closed and sleek design
- Durable and robust made from high-quality materials, suitable for outdoor use, even in harsh environmental conditions
- Energy efficient thanks to selectable lumen steps and daylight detection (not DALI types)
Areas of application
- Outdoor use (IP65)
- Wall mounting
- Facade lighting
- Hotel entrance area
- Pathway lighting
- Commercial, industrial and residential areas
Product features
- Multi Color: 2 different color temperatures selectable via integrated switch
- Multi Lumen: selectable power in 3 steps (100 %, 70 %, 50 %) via integrated switch (On/Off-versions)
- Day/night sensor: Automatic switching on and off via daylight detection (On/Off-versions)
- Selectable light emission (upward and/or downward) via integrated switch
- Beam angle select via interchangeable reflectors: wide beam 55° (pre-installed) / narrow beam 30° (accessory included)
- Type of protection: IP65
- Corrosion resistance C4 based on 1,000 hours salt mist spray test
- Integrated breather for preventing condensation inside the luminaire
- Available in housing colors: grey (like RAL7022) and black (like RAL9017)
Equipment / Accessories
- Interchangeable reflectors with narrow beam angle (30°) are included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
14.5 W
94 lm/W
22 W
93 lm/W
29 W
90 lm/W
Added function
MULTI SELECT
Ambient temperature range
-40…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
55 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2200 K / 2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C4
Cover material
Tempered glass
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854659683
Height
250.00 mm
Housing color
Black
Inrush current
40.6 A
Inrush current time Th50
3.5 µs
Length
168.00 mm
Lifespan L70/B50 at 25 °C
109000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
100000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
90 lm/W / 93 lm/W / 94 lm/W 1)
Luminous flux
2600 lm / 2040 lm / 1370 lm 1)
Luminous intensity
1780 cd
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
14
Max. number of luminaires per miniature circuit breaker C16
23
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
135.000 mA
Nominal voltage
220…240 V
Nominal wattage
29 W / 22 W / 14.5 W 1)
Number of switching cycles
100000
Operating mode
Electronic control gear (ECG)
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.9
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
2800.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9017
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Sensor technology
Photocell
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP65
Type of sensor
Photocell
Width
120.00 mm
With light source
Yes
