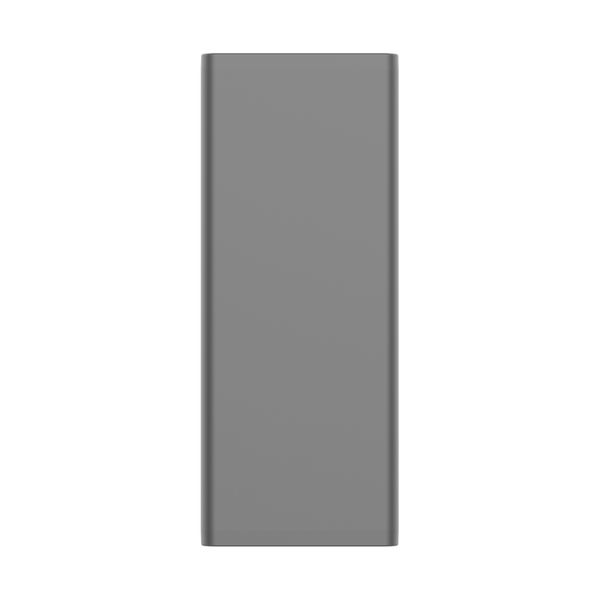

UB WALL VARIO DA SQ P 27W 83040 BK
4099854659881
Product benefits
- Highly versatile luminaire with all-in-one feature-set to serve many lighting tasks
- Great industrial design thanks to its closed and sleek design
- Durable and robust made from high-quality materials, suitable for outdoor use, even in harsh environmental conditions
- Energy efficient thanks to selectable lumen steps and daylight detection (not DALI types)
Areas of application
- Outdoor use (IP65)
- Wall mounting
- Facade lighting
- Hotel entrance area
- Pathway lighting
- Commercial, industrial and residential areas
Product features
- Multi Color: 2 different color temperatures selectable via integrated switch
- Selectable light emission (upward and/or downward) via integrated switch

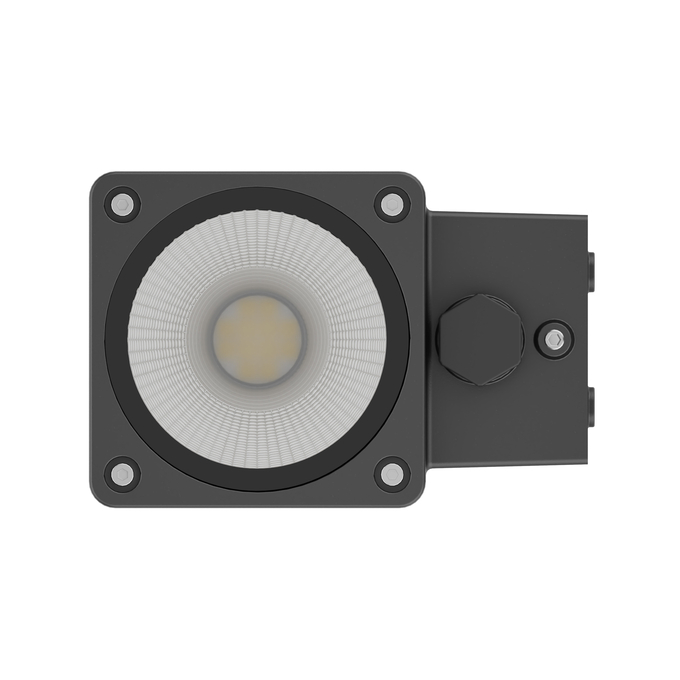

- Beam angle select via interchangeable reflectors: wide beam 55° (pre-installed) / narrow beam 30° (accessory included)
- Type of protection: IP65
- Corrosion resistance C4 based on 1,000 hours salt mist spray test
- Integrated breather for preventing condensation inside the luminaire
- Available in housing colors: grey (like RAL7022) and black (like RAL9017)
- Luminaire versions available with on-off or IoT-ready DALI-2 driver
Equipment / Accessories
- Interchangeable reflectors with narrow beam angle (30°) are included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
27W
100lm/W
Added function
MULTI SELE
Ambient temperature range
-20…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
55 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Corrosion resistance class acc. to EN 12944
C4
Cover material
Tempered glass
Dimmable
Yes
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854659881
Height
254.00 mm
Housing color
Black
Inrush current
35.6 A
Inrush current time Th50
2.48 µs
Length
170.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
100000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W 1)
Luminous flux
2700 lm 1)
Luminous intensity
1850 cd
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
21
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
26
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
120.000 mA
Nominal voltage
220…240 V
Nominal wattage
27.00 W 1)
Number of switching cycles
100000
Operating mode
Electronic control gear (ECG)
Output current
700 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.9
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
2550.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9017
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of emergency operation test
None
Type of protection
IP65
Width
120.00 mm
With light source
Yes
