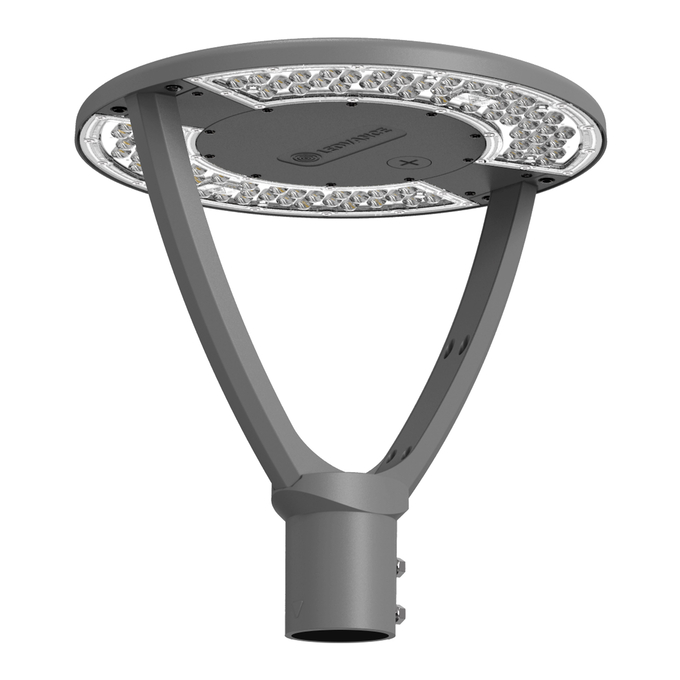

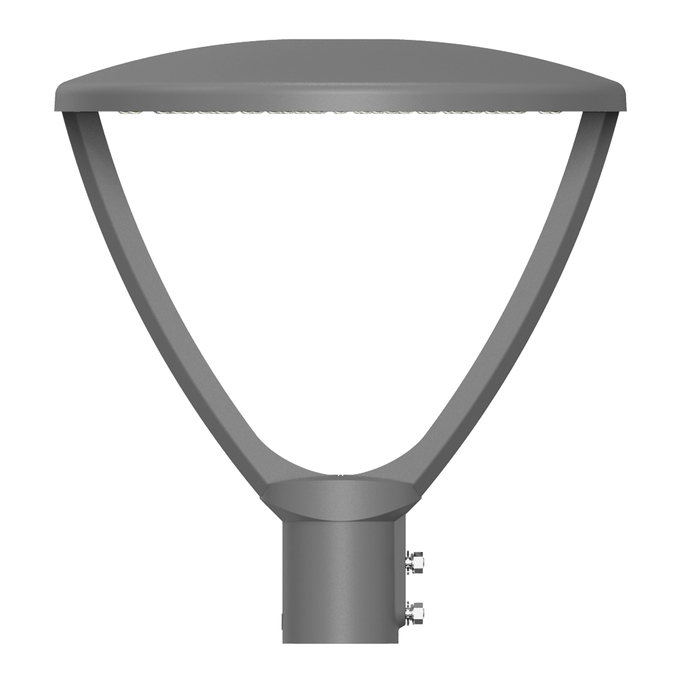

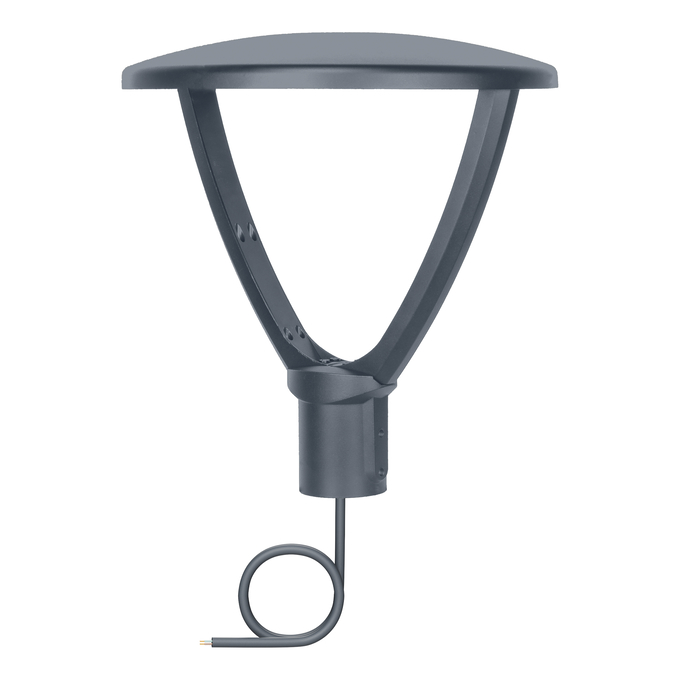

UB LTRN SYM 7M V 59W ML 83040 GY
4099854649844
Product benefits
- Easy installation due to preassembled long cable
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 139 lm/W
- Bright, robust and durable
Areas of application
- Replacement for luminaires with mercury vapor or metal halide lamps
- Public areas
- Parks
- Pedestrian zones
- Residential areas
Product features
- Long preassembled connection cable included
- Protection class: II
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Type of protection: IP66
- Impact resistance: IK10
- Symmetric light distribution
Equipment / Accessories
- Additional screws included for pole diameter of 42 mm
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see
34 W
139 lm/W
42 W
139 lm/W
49 W
139 lm/W
59 W
139 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-30…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
145 °
Body material
Aluminum
Cable length
7000 mm
Color rendering index Ra
80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
395.00 mm
Dimmable
No
ECG - Output ripple current
< 20 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854649844
Height
417.00 mm
Housing color
Gray
Inrush current
30.6 A
Inrush current time Th50
300 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
56000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9), Perfluorobutane sulfonic acid (PFBS) and its salts, Tripnehyl Phosphate (115-86-6)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
139 lm/W
Luminous flux
8200 lm / 6800 lm / 5840 lm / 4730 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
7
Max. number of luminaires per miniature circuit breaker C10
7
Max. number of luminaires per miniature circuit breaker C16
11
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Pole
Mounting type
Post top
Nominal current
150mA / 190mA / 215mA / 260 mA
Nominal voltage
220…250 V
Nominal wattage
59 W / 49 W / 42 W / 34 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1490…1240…1060…850 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
4735.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 7024
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
6 kV
Temperature range at storage
-35…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP66
With light source
Yes
