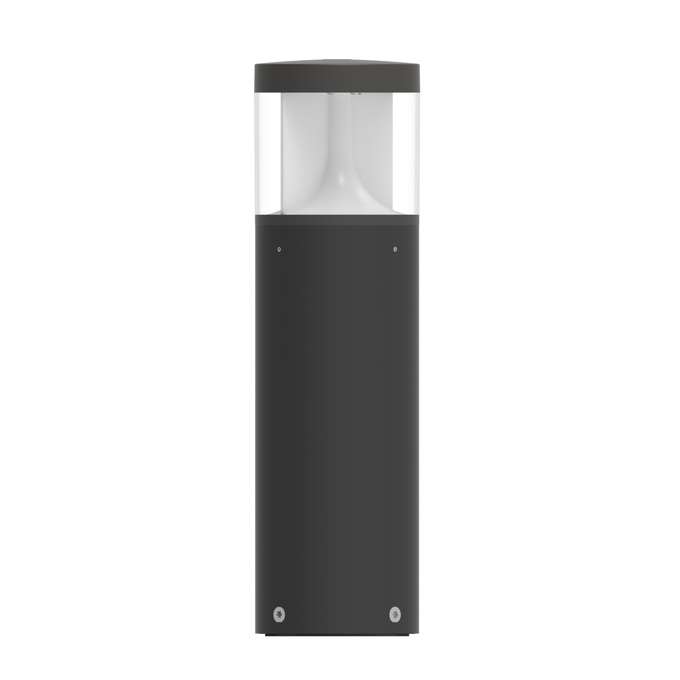

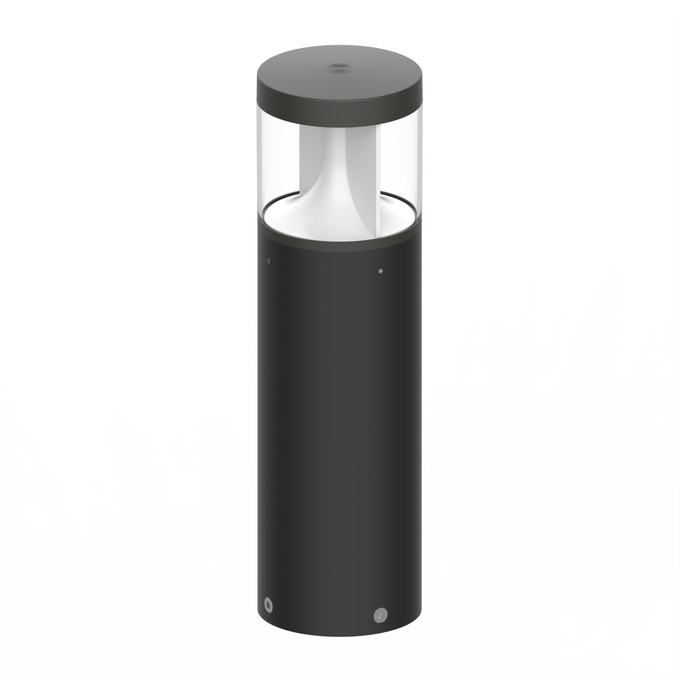

UB BOLLARD CONE DA 600 P 15W 840 GY
4099854726569
Product benefits
- Versatile use, serves many lighting tasks for paths or areas in one luminaire
- Optics are optimized for wide spacing between bollards
- Durable and robust, made from high-quality materials, withstands even harsh environments
Areas of application
- Bollard luminaires for guidance and orientation, they pave the way for pedestrians and enhance the surroundings
- Path and plaza illumination
- Parks and green spaces, parking and pedestrian areas
- Public, industrial and residential areas
- Driveways, access routes and entrances in residential complexes and arcades
Product features
- Switchable and DALI-2 dimmable LED-segments for 180° or 360° light distribution
- Single lens optics for good beam control
- IP66, IK10, sealed and sleek form-factor
- Well chosen materials such as aluminum, stainless-steel, UV-stabilized powder-coating and plastics
- Corrosion resistance C4
- Integrated breather valve to prevent condensation inside the luminaire
Equipment / Accessories
- Ground anchors for cast concrete foundations separately available
- Ground piece with anti-sink protection for fixing luminaires with base plate in the ground separately available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
15 W
88 lm/W
Added function
VIVARES
Adjustable
No
Ambient temperature range
-40…+50 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
148 ° x 155 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Corrosion resistance class acc. to EN 12944
C4
Cover material
Polycarbonate (PC)
Diameter
170.00 mm
Dimmable
Yes
Dimming range
16…100 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854726569
Height
600.00 mm
Housing color
Grey
Inrush current
21 A
Inrush current time Th50
21 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
57000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
88 lm/W / 85 lm/W 1)
Luminous flux
1330 lm / 1275 lm 1)
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
19
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
26
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Grou
Mounting type
Surface
Nominal current
450.000 mA
Nominal voltage
220…240 V
Nominal wattage
15 W / 15 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1050 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
6880.00 g
Protection class
I
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 7022
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
6 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of emergency operation test
None
Type of protection
IP66
With light source
Yes
