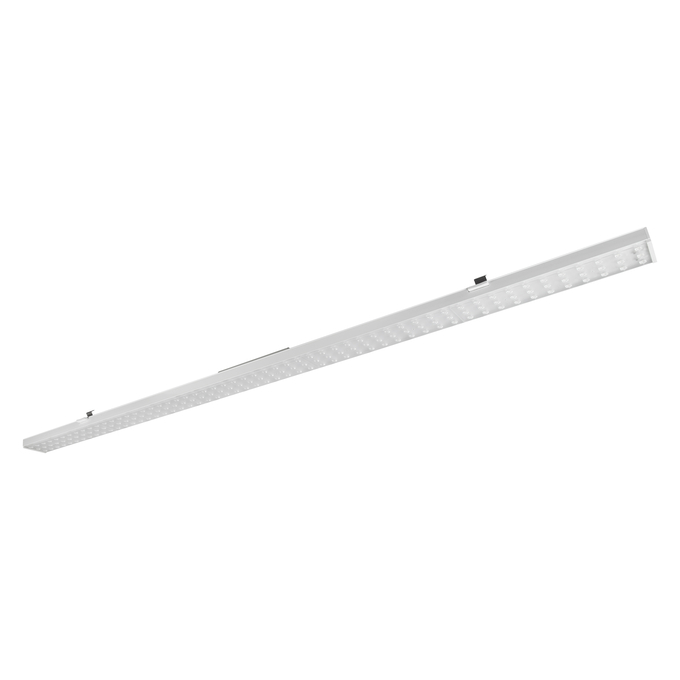

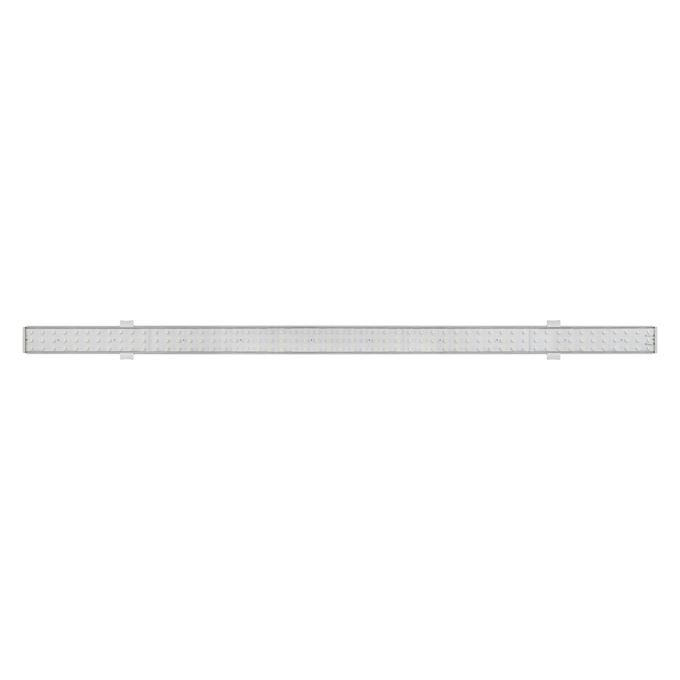

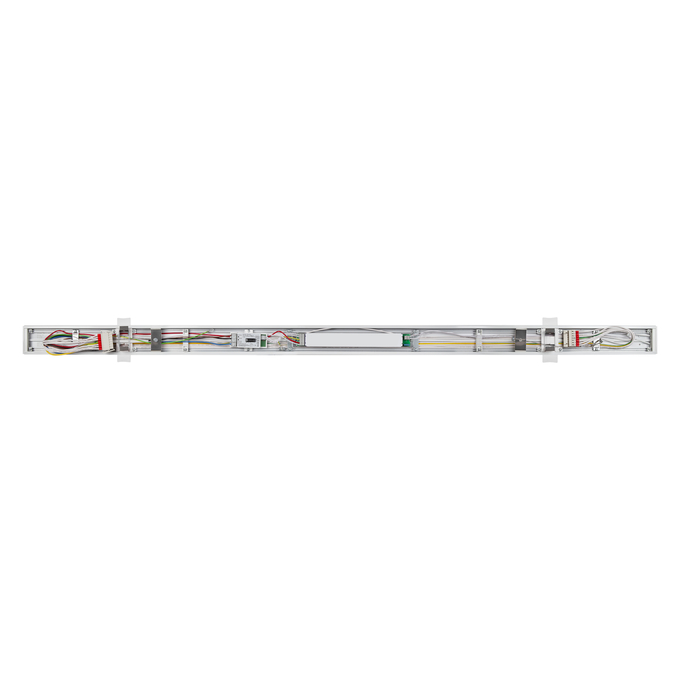

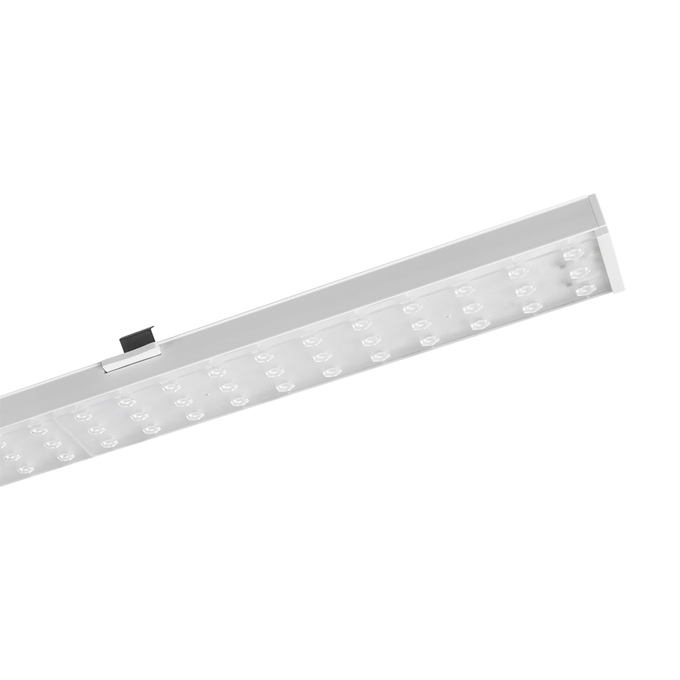

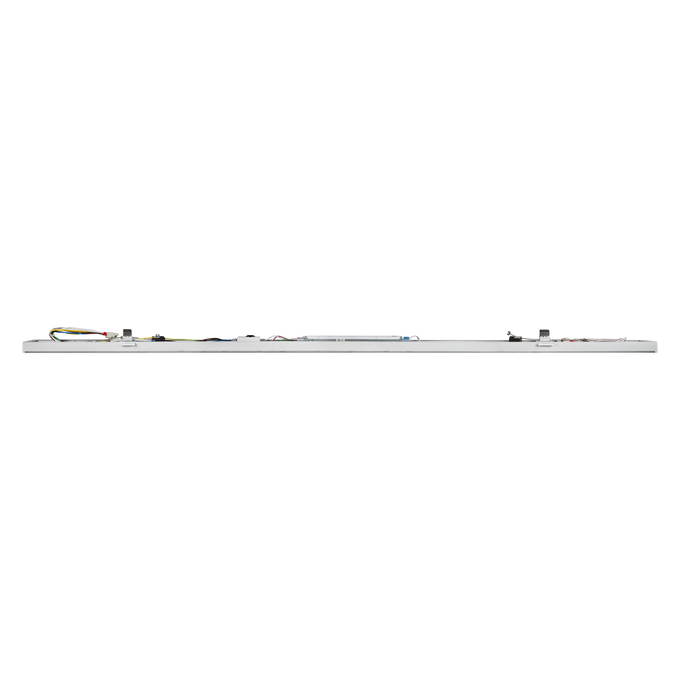

TRUSYS UNIV P 50W 840 VN CL DALI
4099854496882
Product benefits
- The solution for refurbishment: universal fitting to existing trunking luminaire system
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Industry halls, high rack warehouse, hardware stores
- Discounters, supermarkets
Product features
- IoT-ready DALI-2 driver
- Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
- Click into place solution with smart click buttons
- Luminous efficacy: up to 180 lm/W
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
- Various accessories available
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
30 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
< 5 %
EPD
LEDV-00033-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854496882
Height
26.00 mm
Housing color
White
Inrush current
20.75 A
Inrush current time Th50
266 µs
Length
1504.00 mm
Lifespan L70/B50 at 25 °C
120000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
54000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
180 lm/W
Luminous flux
9000 lm
Luminous flux in emergency operation mode
1350 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
12
Max. number of luminaires per miniature circuit breaker C10
12
Max. number of luminaires per miniature circuit breaker C16
19
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Surface/Suspended
Nominal current
230.000 mA
Nominal voltage
220…240 V
Nominal wattage
50.00 W
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
550 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1780.00 g
Protection class
I
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 3 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Plug-In connection
Type of dimming
DALI-2
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP20
Wattage in emergency operation mode
7.5 W
Width
68.00 mm
With light source
Yes
