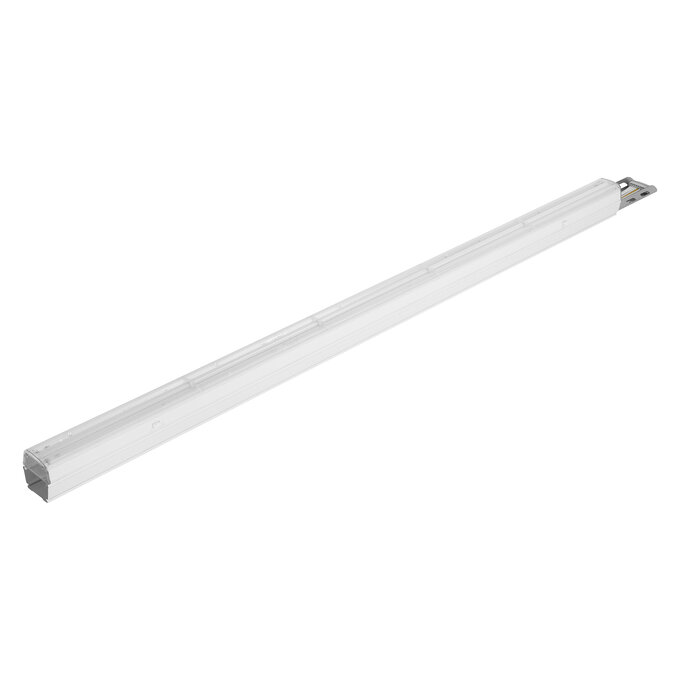

TruSys® PFM VN 35 W/4000 K
4058075398696
Product benefits
- Very directed light distribution for high rack warehouses
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
- Versions with DALI ECG available
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, garages, hardware stores
Product features
- Beam angle very narrow: 30°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 160 lm/W
- Fixed luminare taps
- Lumen package 5600 lm, 8000 lm, 11200 lm
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP20
- Common family design with LEDVANCE
- Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
30 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
< 20 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075398696
Height
39.40 mm
Housing color
White
Inrush current
25 A
Inrush current time Th50
220 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
65000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1) Nonafluorobutanesulfonic acid (59933-66-3)
Low flicker
Yes
Luminous efficacy
160 lm/W
Luminous flux
5600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
12
Max. number of luminaires per miniature circuit breaker C16
19
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Suspended/Surface
Nominal current
190 mA
Nominal voltage
220…240 V
Nominal wattage
35.00 W
Number of illuminants
-
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
420 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1660.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Total harmonic distortion
< 20 %
Type of connection
Plug-In connection
Type of protection
IP20
UGR
21
Width
66.80 mm
With light source
Yes
