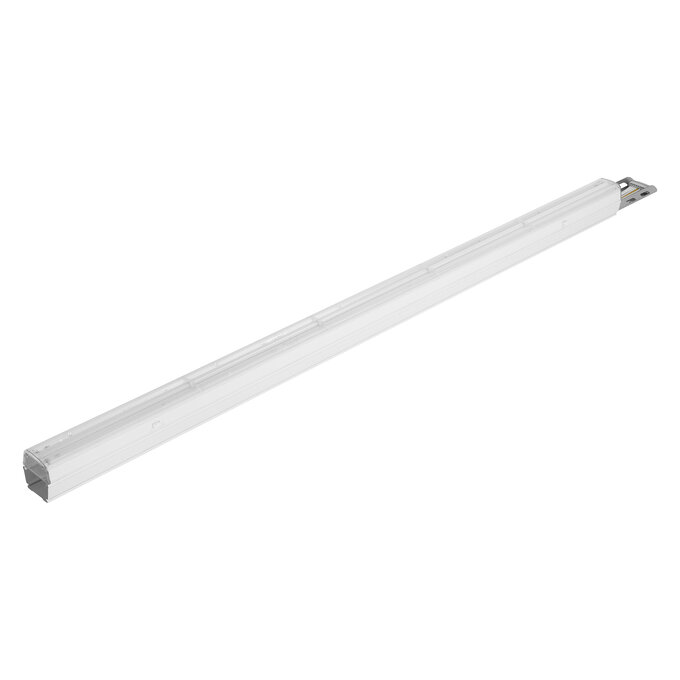

TruSys® PFM EM W 50 W 4000 K AT 3H
4058075291171
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- High luminous efficacy in normal operation
- 3 years guarantee
- Homogenous light distribution
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- Rows of up to 57 luminaires possible
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, garages, hardware stores
- Discounters, supermarkets
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Beam angle wide: 90°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 160 lm/W
- Fixed luminare taps
- Lumen package 5600 lm, 8000 lm, 11200 lm
- Steel-sheet housing
Equipment / Accessories
- Mounting rail with fixed integrated 8-pole cable
References / Links
- For Guarantee see
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
< 24 h
Battery life in emergency operation mode
3 h
Beam angle
90 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
< 20 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075291171
Height
39.40 mm
Housing color
White
Inrush current
30 A
Inrush current time Th50
265 µs
Integrated test switch
No
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
65000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
50000 h
Light color (designation)
Cool White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1) Nonafluorobutanesulfonic acid (59933-66-3)
Low flicker
Yes
Luminous efficacy
160 lm/W
Luminous flux
8000 lm
Luminous flux in emergency operation mode
600 lm
Luminous flux in maintained operation mode
8000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
8
Max. number of luminaires per miniature circuit breaker C10
8
Max. number of luminaires per miniature circuit breaker C16
13
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Suspended/Surface
Nominal capacity of battery
9000 mAh
Nominal current
270.000 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
50.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1660.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Temperature range at storage
5…+35 °C
Total harmonic distortion
< 20 %
Type of Battery
LiFePO4
Type of connection
Plug-In connection
Type of emergency light operation
Maintain
Type of emergency operation test
Automatic
Type of protection
IP20
UGR
21
Wattage in emergency operation mode
4 W
Wattage in maintained operation mode
50 W
Width
66.80 mm
With light source
Yes
