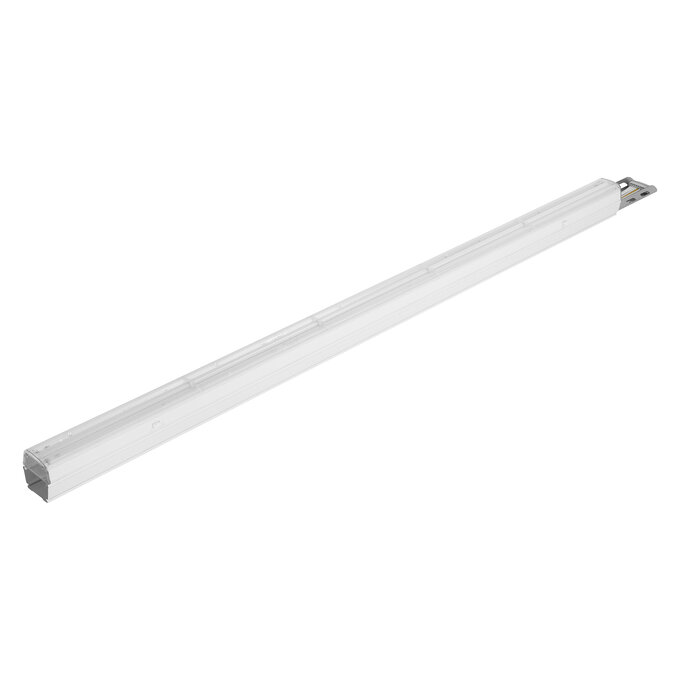

TruSys® PFM DS 70 W/4000 K
4058075398832
Product benefits
- Double directed light distribution for shelf illumination
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- Rows of up to 57 luminaires possible
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Industry halls, high rack warehouse, garages, hardware stores
- Discounters, supermarkets
Product features
- Beam angle double asymmetric: 2x30°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 160 lm/W
- Fixed luminare taps
- Lumen package 5600 lm, 8000 lm, 11200 lm
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP20
- Common family design with LEDVANCE
- Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
2 x 30 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
No
ECG - Output ripple current
< 20 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075398832
Height
39.40 mm
Housing color
White
Inrush current
32 A
Inrush current time Th50
400 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
55000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1) Nonafluorobutanesulfonic acid (59933-66-3)
Low flicker
Yes
Luminous efficacy
160 lm/W
Luminous flux
11200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
5
Max. number of luminaires per miniature circuit breaker C10
5
Max. number of luminaires per miniature circuit breaker C16
9
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Suspended/Surface
Nominal current
380 mA
Nominal voltage
220…240 V
Nominal wattage
70.00 W
Number of illuminants
-
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
980 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1660.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
≤3 sdcm
Total harmonic distortion
< 20 %
Type of connection
Plug-In connection
Type of protection
IP20
UGR
21
Width
66.80 mm
With light source
Yes
