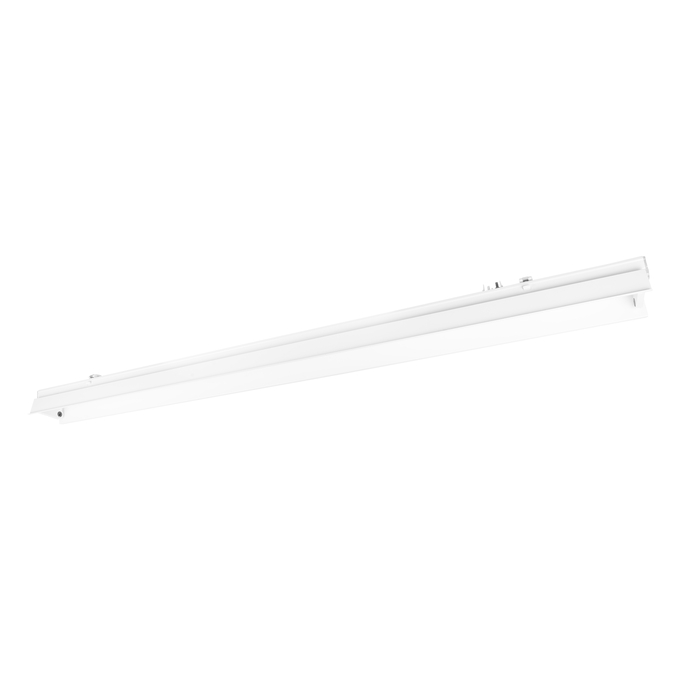

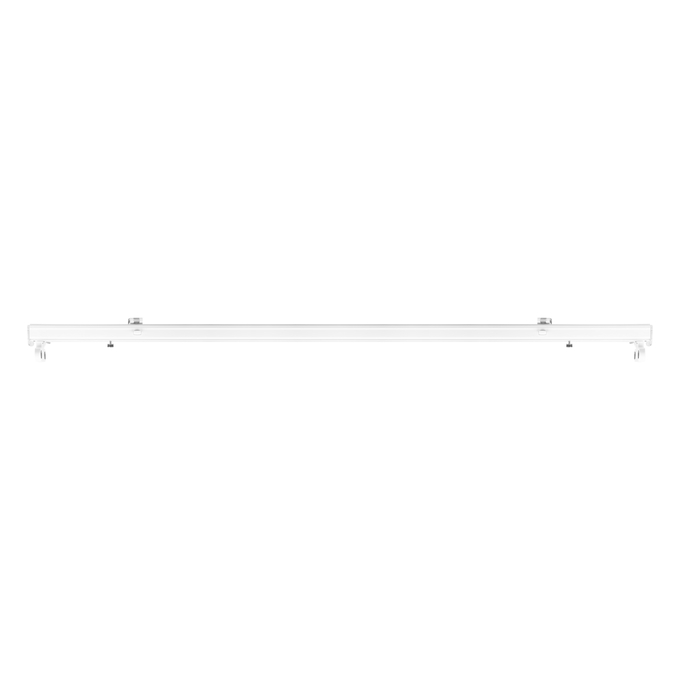

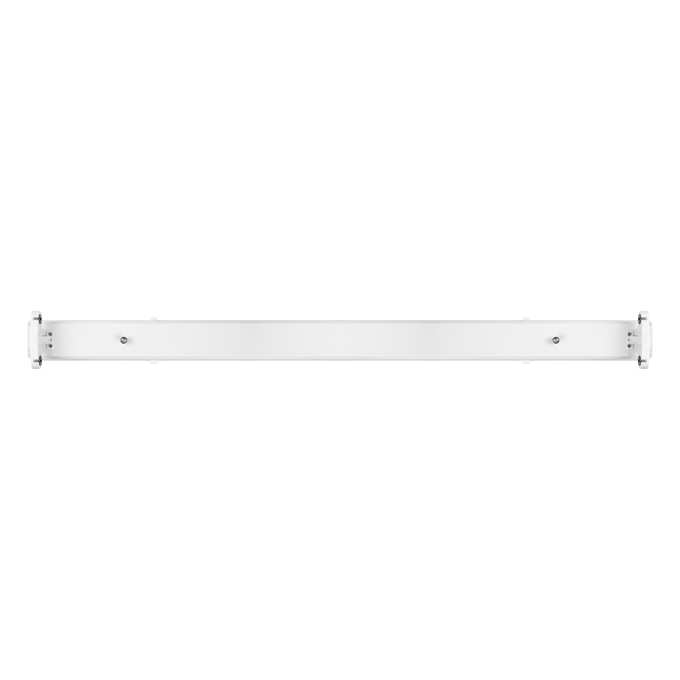

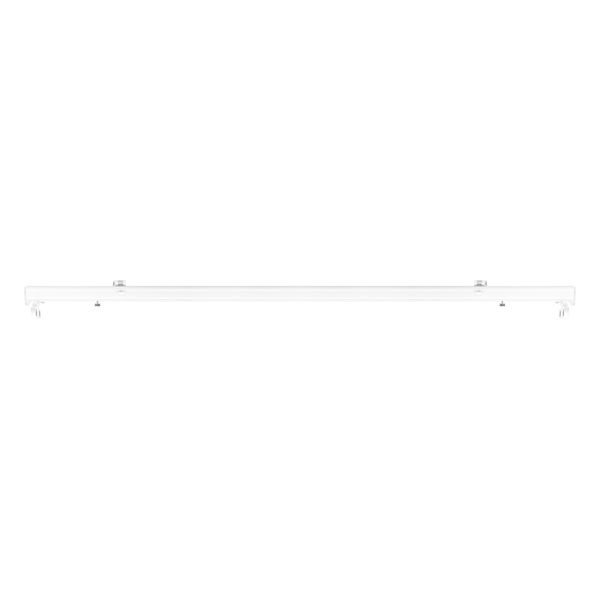

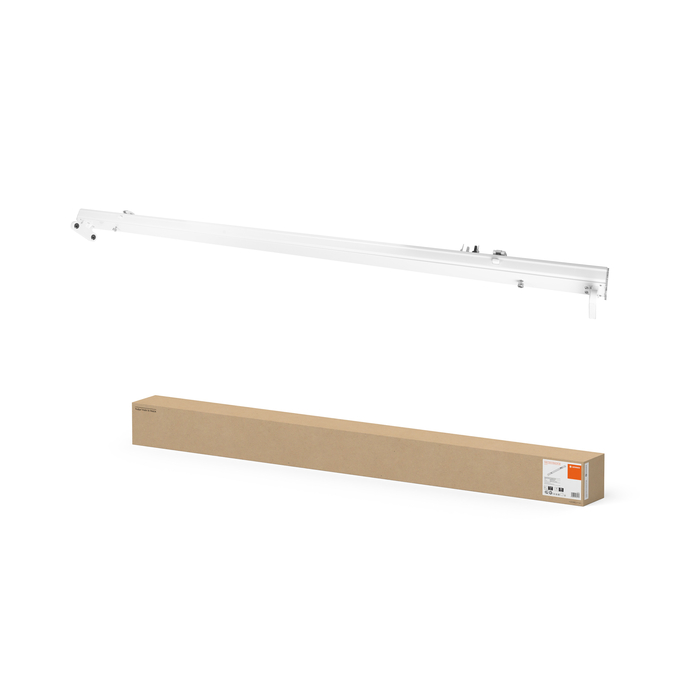

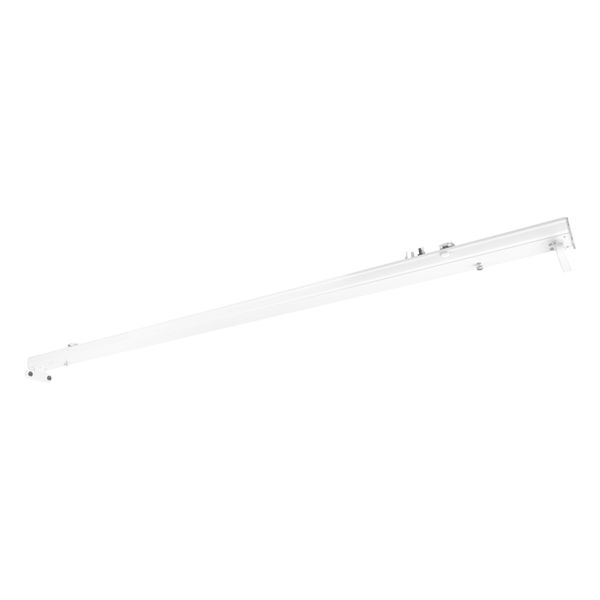

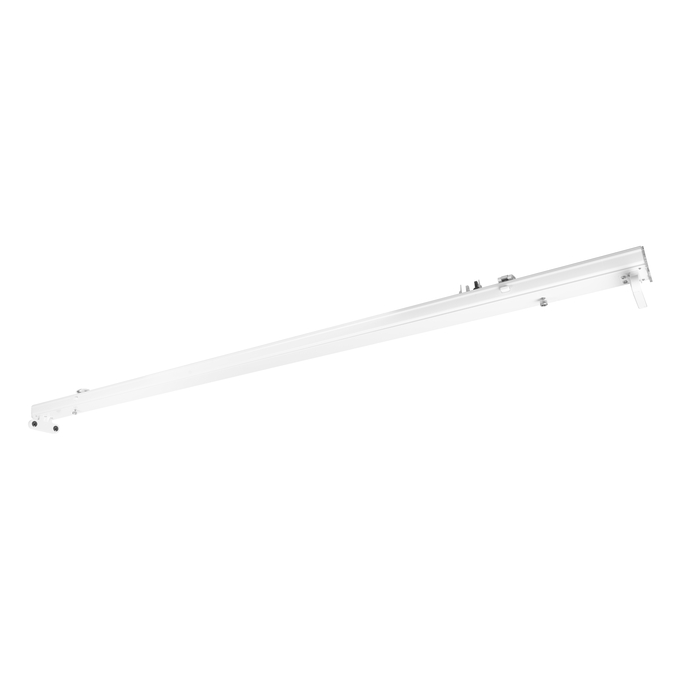

TRUSYS FLEX T5 TRACK DT WT
4099854230172
Product benefits
- Simple installation
Product features
- 150 cm insert with T5 tube fitting holders and preinstalled wires
- Including optional side covers for luminaire inserts
Ambient temperature range
-25…+40 °C
Ball shot safe
No
Body material
Steel
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854230172
Height
97.0 mm
Holder designation
G5
Housing color
White
Length
1498.5 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Nominal voltage
220…240 V
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1080.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
RAL Color (most similar)
RAL9016
Replaceable light source
No
Type of connection
Insulation displacement connector
Type of protection
IP20
Width
91.3 mm
With light source
No
