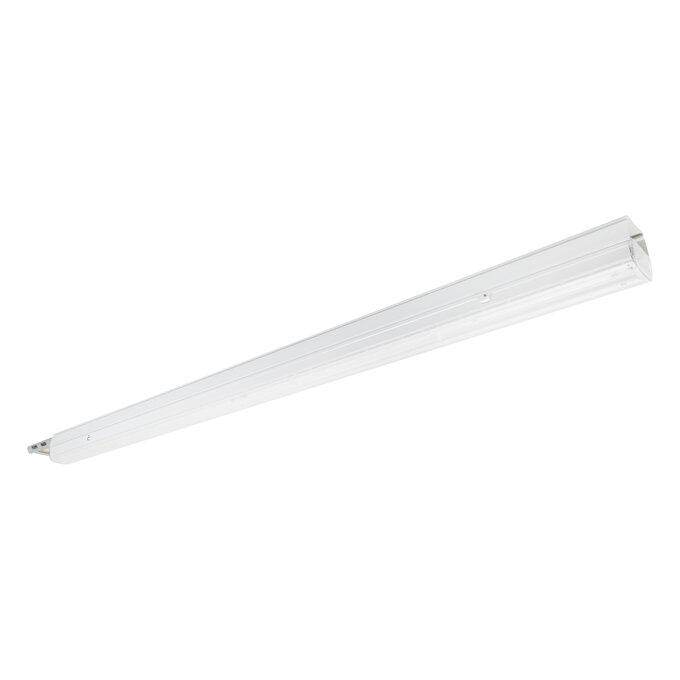

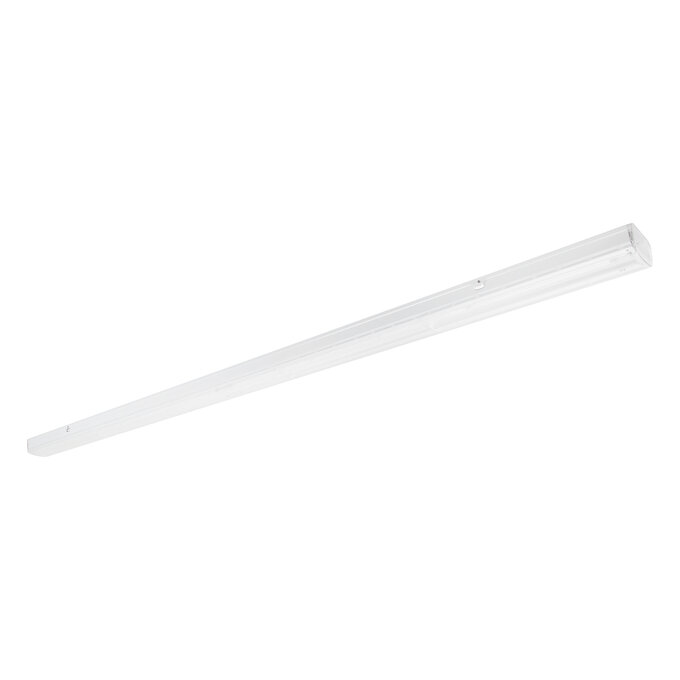

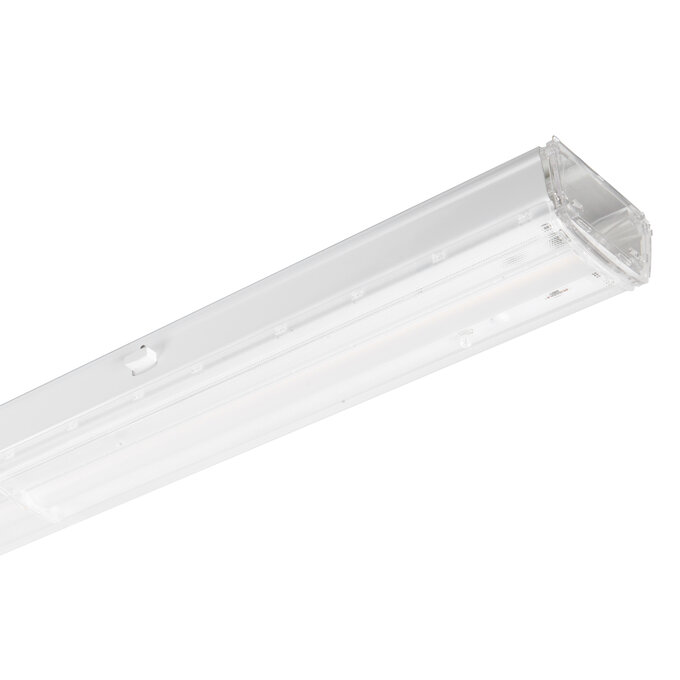

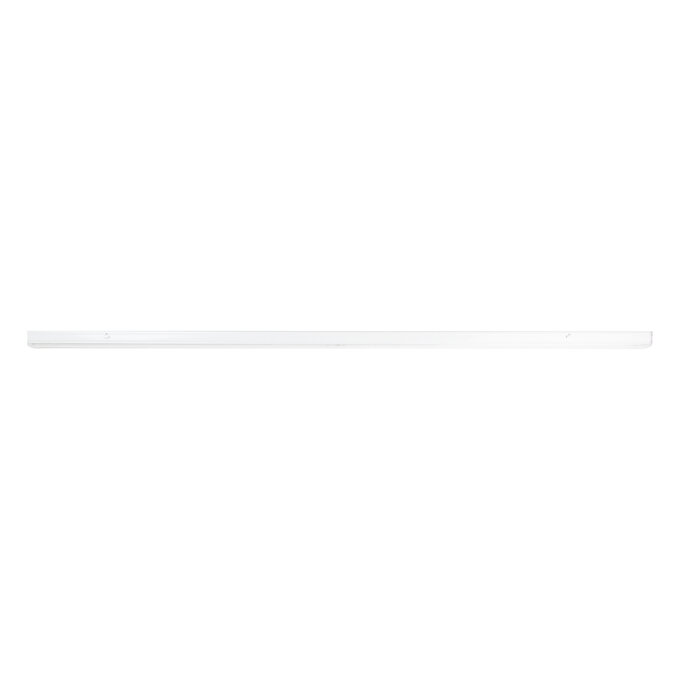

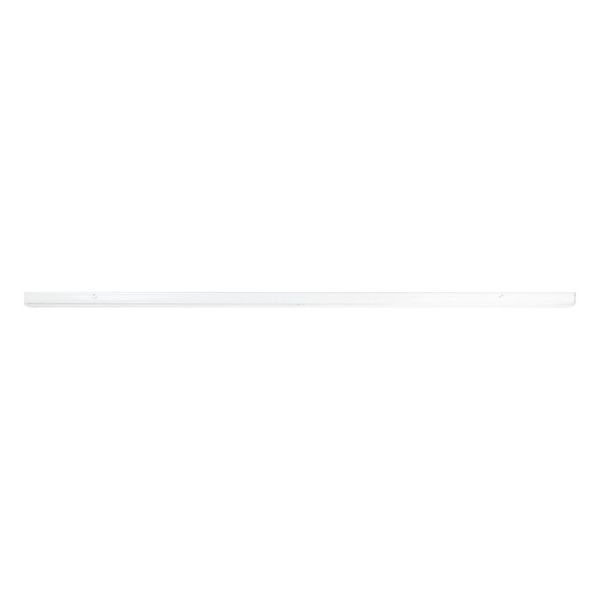

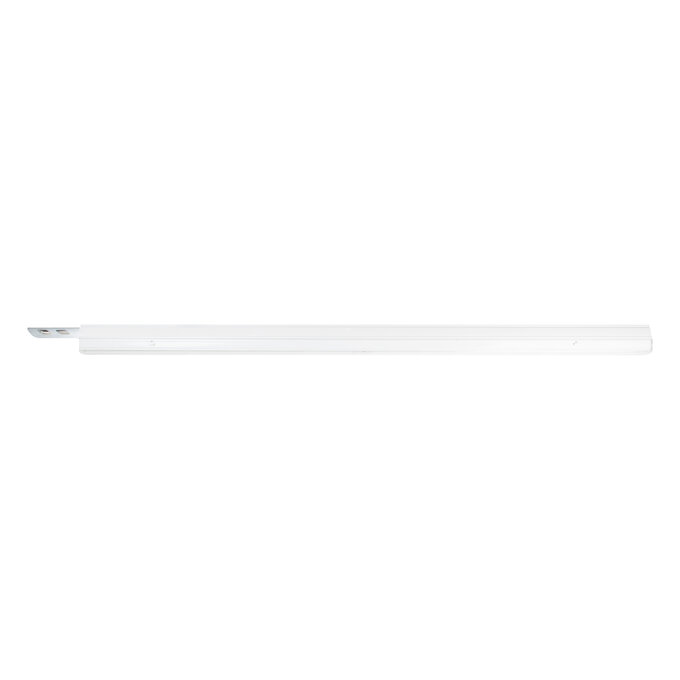

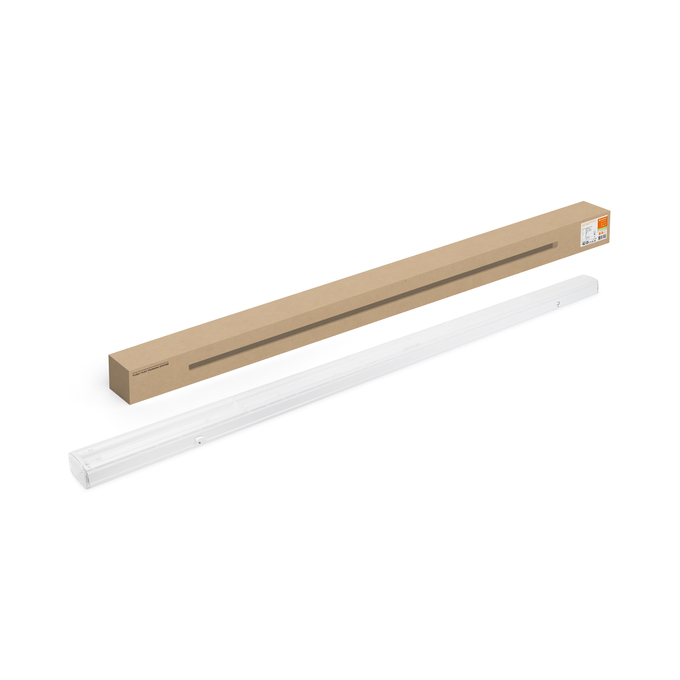

TRUSYS FLEX P 70W 840 VN CL WT DALI
4058075771130
Product benefits
- Very directed light distribution for high rack warehouses
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, hardware stores
- Discounters, supermarkets
Product features
- Beam angle very narrow: 30°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 175 lm/W
- Fixed luminare taps
- Luminaire versions available with on-off or IoT-ready DALI-2 driver
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP40
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-25…+35 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
30 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075771130
Height
39.40 mm
Housing color
White
Inrush current
43.8 A
Inrush current time Th50
188 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
76000 h 1)
Lifespan L90/B10 at 25 °C
38000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
175 lm/W
Luminous flux
12100 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
9
Max. number of luminaires per miniature circuit breaker C10
7
Max. number of luminaires per miniature circuit breaker C16
12
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Suspended/Surface
Nominal current
320.000 mA
Nominal voltage
220…240 V
Nominal wattage
70.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
1050 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.95
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1750.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 15 %
Type of connection
Plug-In connection
Type of dimming
DALI
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP40
Width
77.70 mm
With light source
Yes
