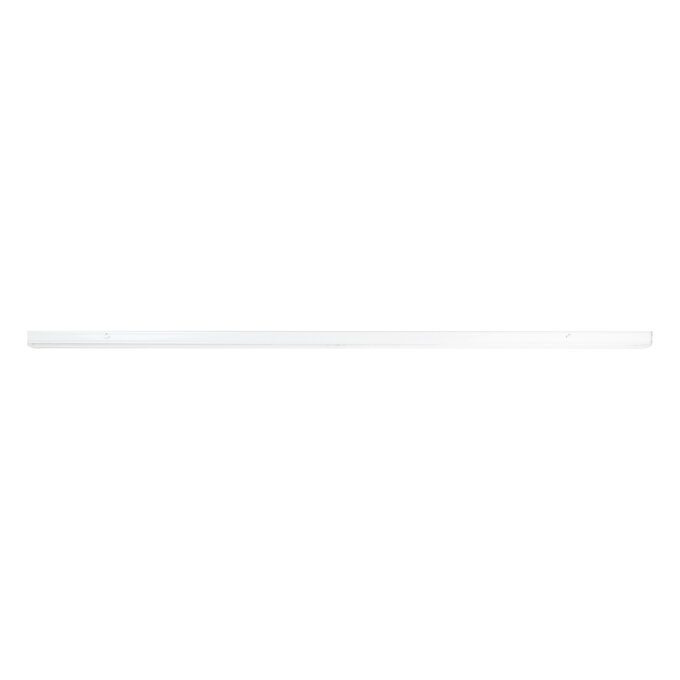

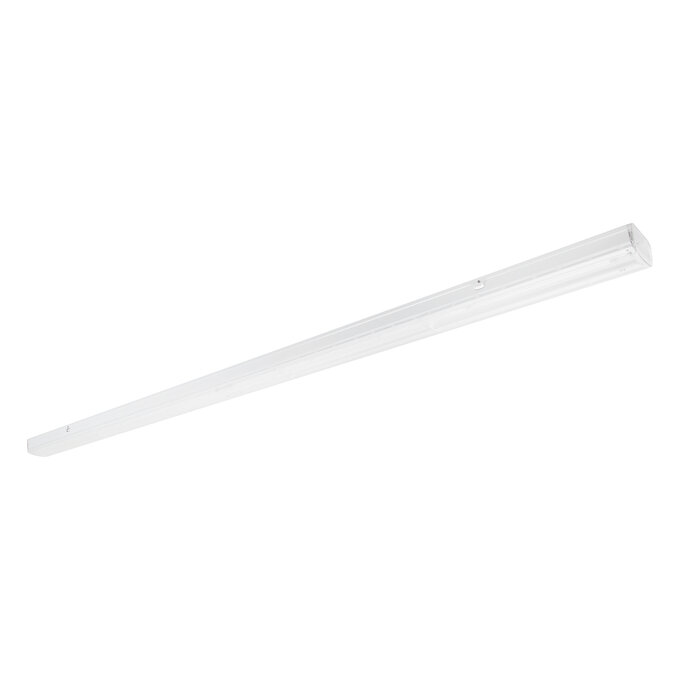

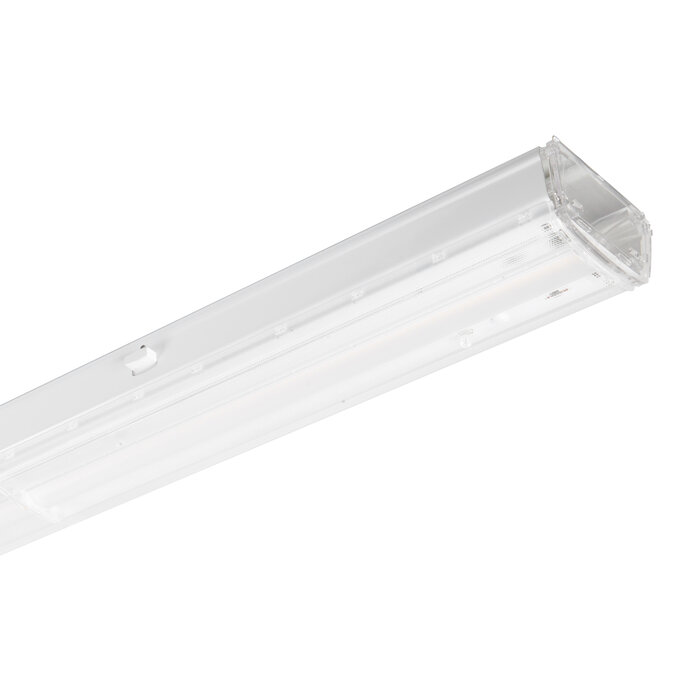

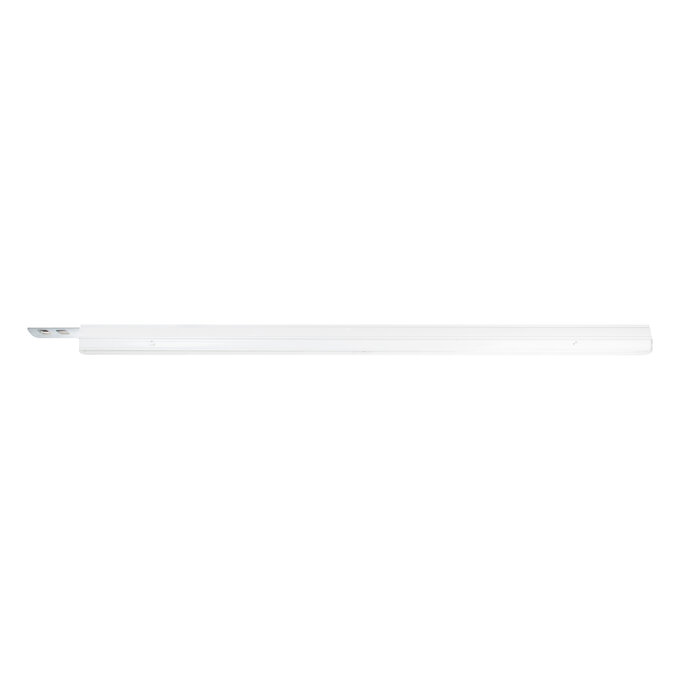

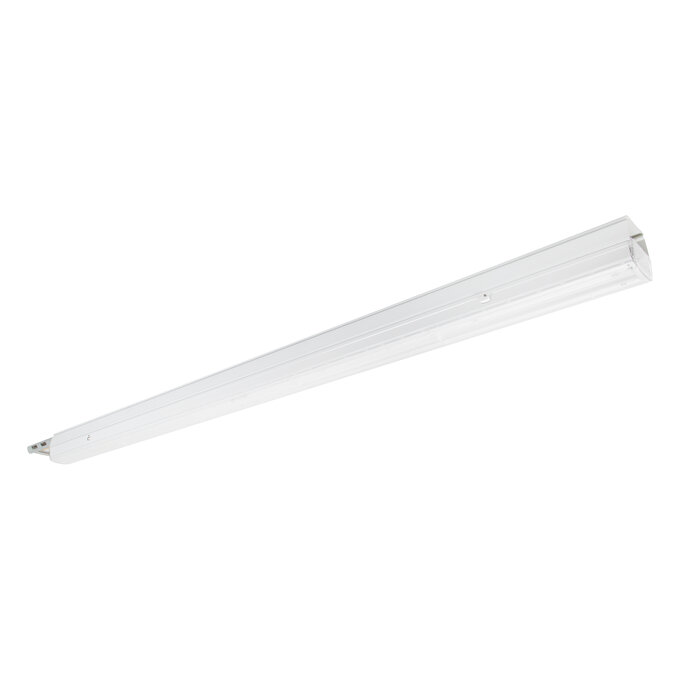

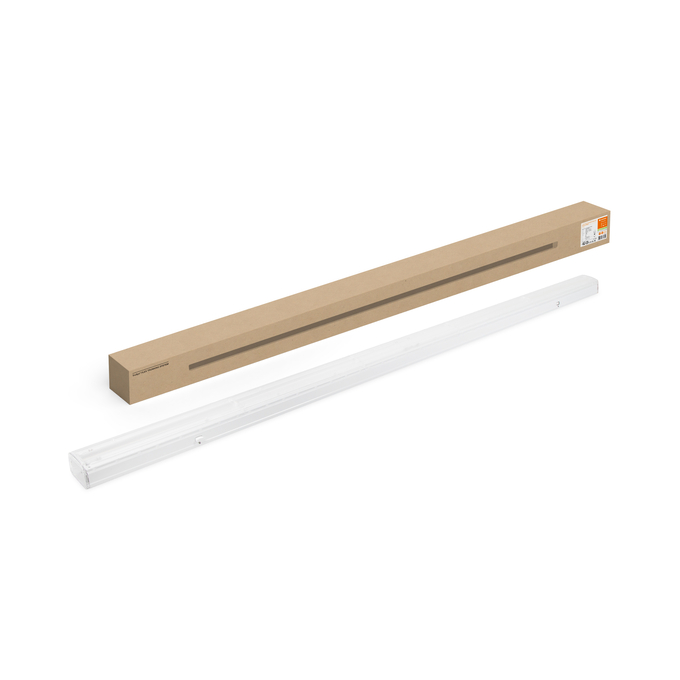

TRUSYS FLEX P 35W 840 W CL WT DALI
4058075770812
Product benefits
- Homogenous light distribution
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, hardware stores
- Discounters, supermarkets
Product features
- Beam angle wide: 90°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 175 lm/W
- Fixed luminare taps
- Luminaire versions available with on-off or IoT-ready DALI-2 driver
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP40
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
References / Links
- For Guarantee see
Added function
VIVARES
Adjustable
No
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
ECG - Output ripple current
< 10 %
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075770812
Height
39.40 mm
Housing color
White
Inrush current
22.4 A
Inrush current time Th50
176 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
76000 h 1)
Lifespan L90/B10 at 25 °C
38000 h
Light color (designation)
Cool White
Light emitting surface material
Polymethylmethacrylate (PMMA)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
175 lm/W
Luminous flux
5800 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C10
15
Max. number of luminaires per miniature circuit breaker C16
25
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting rail
Mounting type
Suspended/Surface
Nominal current
160.000 mA
Nominal voltage
220…240 V
Nominal wattage
35.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
400 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.95
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1650.00 g
Protection class
I
Protection class IK (shock resistance)
IK04
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 15 %
Type of connection
Plug-In connection
Type of dimming
DALI
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP40
Width
77.70 mm
With light source
Yes
