TR SP ZOOM DIM P 30W 940 BK
4099854616143
Product benefits
- Dimmable 3-phase tracklight spot with mechanical zoom lense
- No distraction from the illuminated objects thanks to the reduced design
- Low flicker light thanks to special electronic control gear
- Good glare reduction (UGR ≤ 19)
Areas of application
- Direct replacement for luminaires using HID lamps
- Accent lighting
- Galleries, museums
- Shops, changing rooms, shop windows
- Hotels, restaurants
Product features

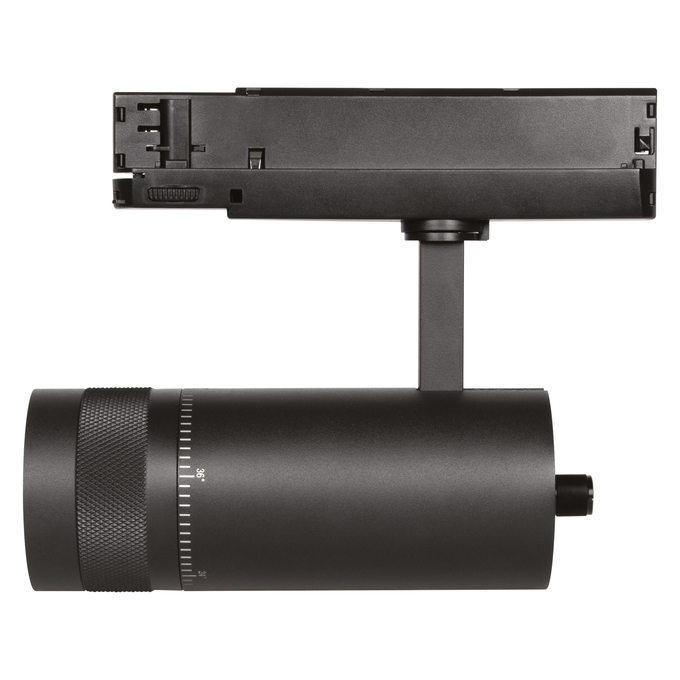

- Mechanical zoom lens with a beam angle of 18° to 50°

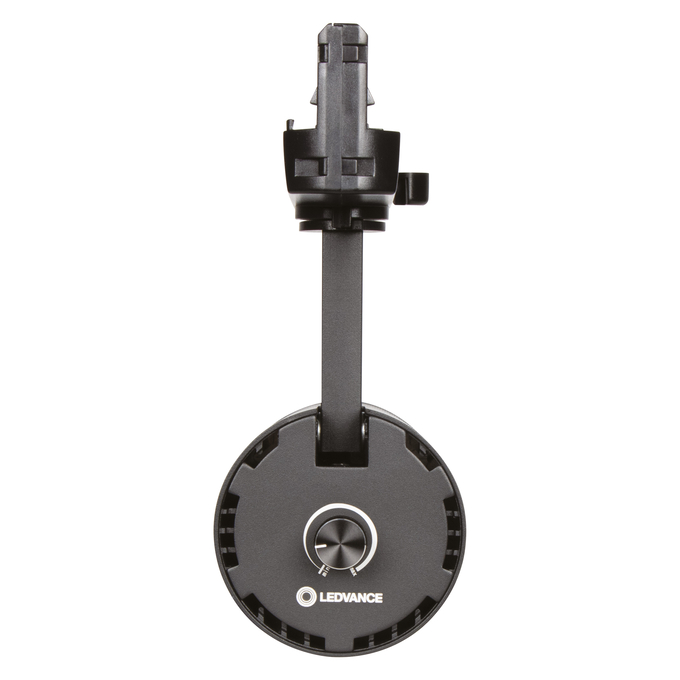

- Dimmable (3% - 100%) via potentiometer directly on each luminaire
- Color rendering index CRI 90
- Initial color consistency: ≤ 3 SDCM
- Rotation angle: 350°, tilt angle: 90°
- Durable die-cast aluminum housing
- Available in matt white (like RAL9003), matt black (like RAL9005)
- Luminaire efficacy: up to 120 lm/W
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
18 °…50 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
80.00 mm
Dimmable
Yes
ECG - Output ripple current
< 3 %
EPD
LEDV-00066-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854616143
Height
260.00 mm
Housing color
Black
Inrush current
0.78 A
Inrush current time Th50
50 µs
Length
189.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W / 100 lm/W 2)
Luminous flux
3600 lm / 3000 lm 1)
Luminous intensity
4500 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
94
Max. number of luminaires per miniature circuit breaker C10
58
Max. number of luminaires per miniature circuit breaker C16
94
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting track
Mounting type
Surface
Nominal current
136 mA
Nominal voltage
220…240 V
Nominal wattage
30.00 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
860.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL9005
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Surge capability (L/N-Ground)
2000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Adapter, 3-phase
Type of dimming
1-10V
Type of emergency operation test
None
Type of protection
IP20/IP20
UGR
< 19
With light source
Yes
