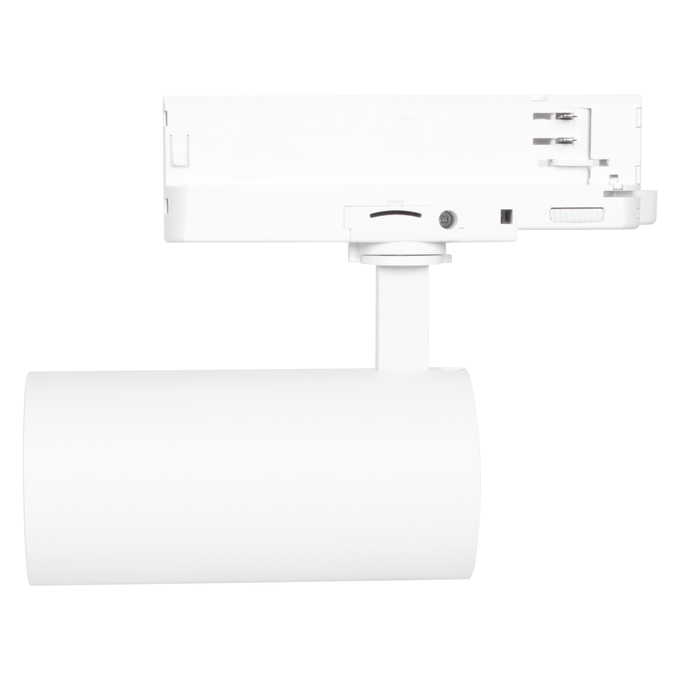

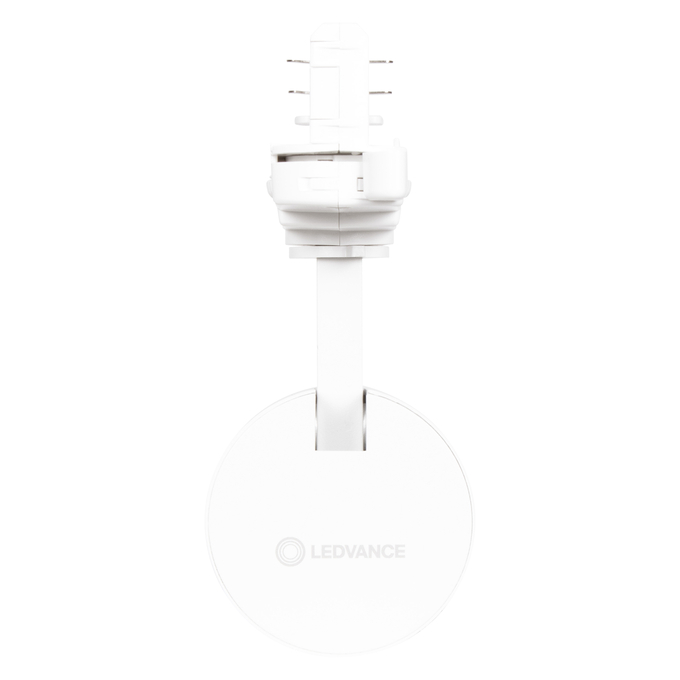

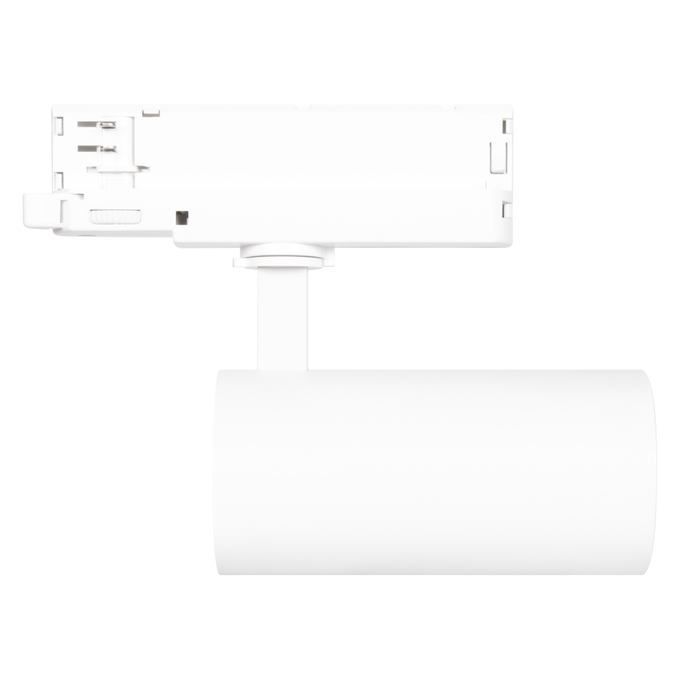

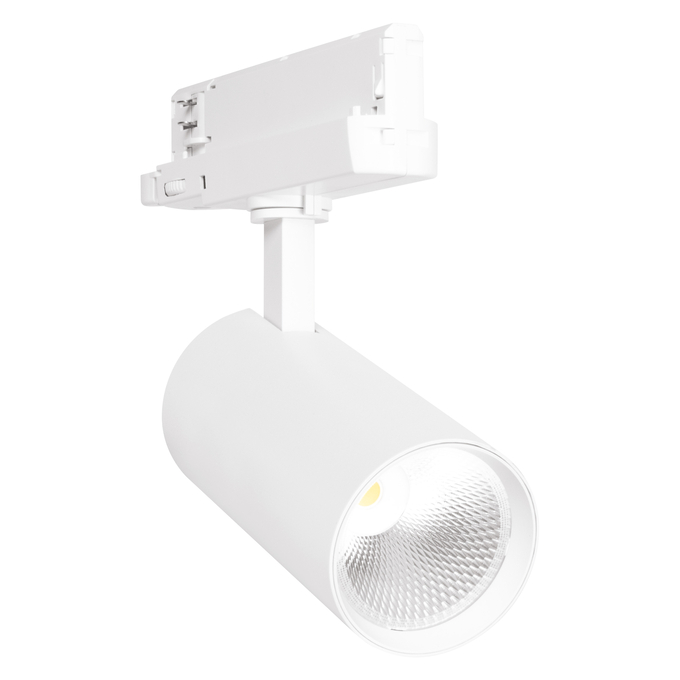

TR SP XR V 30W 924 24DEG WT BREAD
4099854617089
Product benefits
- Specially tailored spectral distribution for food presentation only
- Reflector easily replaceable thanks to bayonet catch and rubber suction pad
- No distraction from the illuminated objects thanks to the reduced design
- Low flicker light thanks to special electronic control gear
- Good glare reduction (UGR ≤ 19)
Areas of application
- Shops, supermarkets
- Food presentation in e.g. butchers, bakeries, supermarkets or meat processors
- Hotels, restaurants
Product features
- Compact tracklight spot with in-track control gear
- Rotation angle: 350°, tilt angle: 90°
- Luminaire efficacy: up to 95 lm/W
- Color rendering index CRI 90
- Equipped with reflectors with 24° beam angle
- Durable die-cast aluminum housing
- Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
24 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
2400 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
80.00 mm
Dimmable
No
ECG - Output ripple current
< 3 %
EPD
LEDV-00065-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854617089
Height
240.00 mm
Housing color
White
Inrush current
0.72 A
Inrush current time Th50
51 µs
Length
150.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
2100 lm
Luminous intensity
2500 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
94
Max. number of luminaires per miniature circuit breaker C10
58
Max. number of luminaires per miniature circuit breaker C16
94
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Mounting track
Mounting type
Surface
Nominal current
136 mA
Nominal voltage
220…240 V
Nominal wattage
30.00 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
620.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Adapter, 3-phase
Type of emergency operation test
None
Type of protection
IP20/IP20
UGR
< 20
With light source
Yes
